HUBBELL WIRING DEVICES

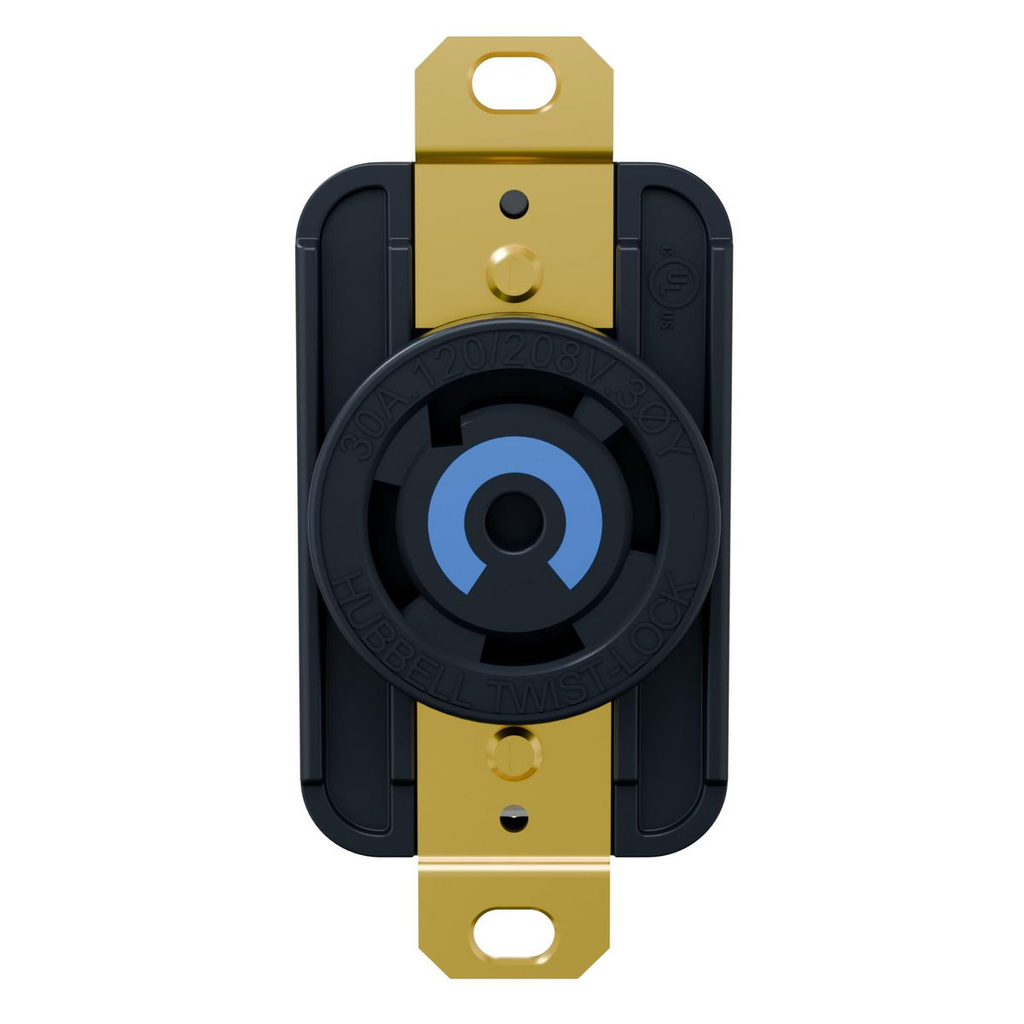

EdgeConnect™ Twist-Lock® Receptacle, 30A 3P 120/208V, L21-30R, BK, with Spring Termination

LKG RCPT, 30A 3P 120/208V, L21

HUBHBL2810ST HBL2810ST 783585788524
78.90 / EA
http://schema.org/OutOfStock
Mayer-DDS-EdgeConnect™ Twist-Lock® Receptacle, 30A 3P 120/208V, L21-30R, BK, with Spring Termination-1
  • Amperage: 30 A
  • Country of Origin: China
  • Height: 1.468 in
  • Length: 3.28 in
  • Number of Poles: 4
  • Number of Wires: 5
  • Width: 1.7 in, 2.500 in
  • Wire Size: 10 AWG, 14 AWG, 8 AWG
EdgeConnect™ Twist-Lock® Receptacle, 30A 3P 120/208V, L21-30R, BK, with Spring Termination
QTY
  • Product Description
  • Features
  • Specifications
EdgeConnect™ Twist-Lock® Receptacle, 30A 3P 120/208V, L21-30R, BK, with Spring Termination
  • Features
    • Faster termination time
    • No need for screwdriver and torque wrench
    • Spring Termination eliminates strand relaxation
    • High-impact, abuse-resistant nylon face
    • Face color coding by voltage facilitates locating and mating of proper devices
  • Specifications
    • Country of Origin : CN
    • Dimensions : 3.28 in x 1.7 in x 1.468 in
    • Each - Width : 2.500 in
    • Height : 1.468 in
    • Length : 3.28 in
    • Amperage Rating : 30 A
    • Number of Poles : 4
    • Number of Wires : 5
    • Size : 3.28 in x 1.7 in x 1.468 in
    • Voltage Rating : 120/208 VAC
    • Wire Size : 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded)
    • Width : 1.7 in
    • Number Of Poles : 4
    • Number Of Wires : 5
    • Class Code : A08
    • Freight Class Code : 06168002
    • Harmonization Code : 8536698000
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Sub Class Code : A08A110
    • Base Unit of Measure : EA
    • BOX SIZE : 7.500x12.400x8.800 (in)
    • Carton - Gross Weight per Pack : 0.000 lb.
    • Carton - Number of Sub Packs : 50
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 00783585788524
    • Carton - Total Units : 50
    • Case Weight : 4.970 lb.
    • Pallet - GTIN - Package : 70783585788523
    • Pallet Height : 45.000 in
    • Pallet Length : 48.000 in
    • Pallet Weight : 1157.700 lb.
    • Pallet Width : 40.000 in
