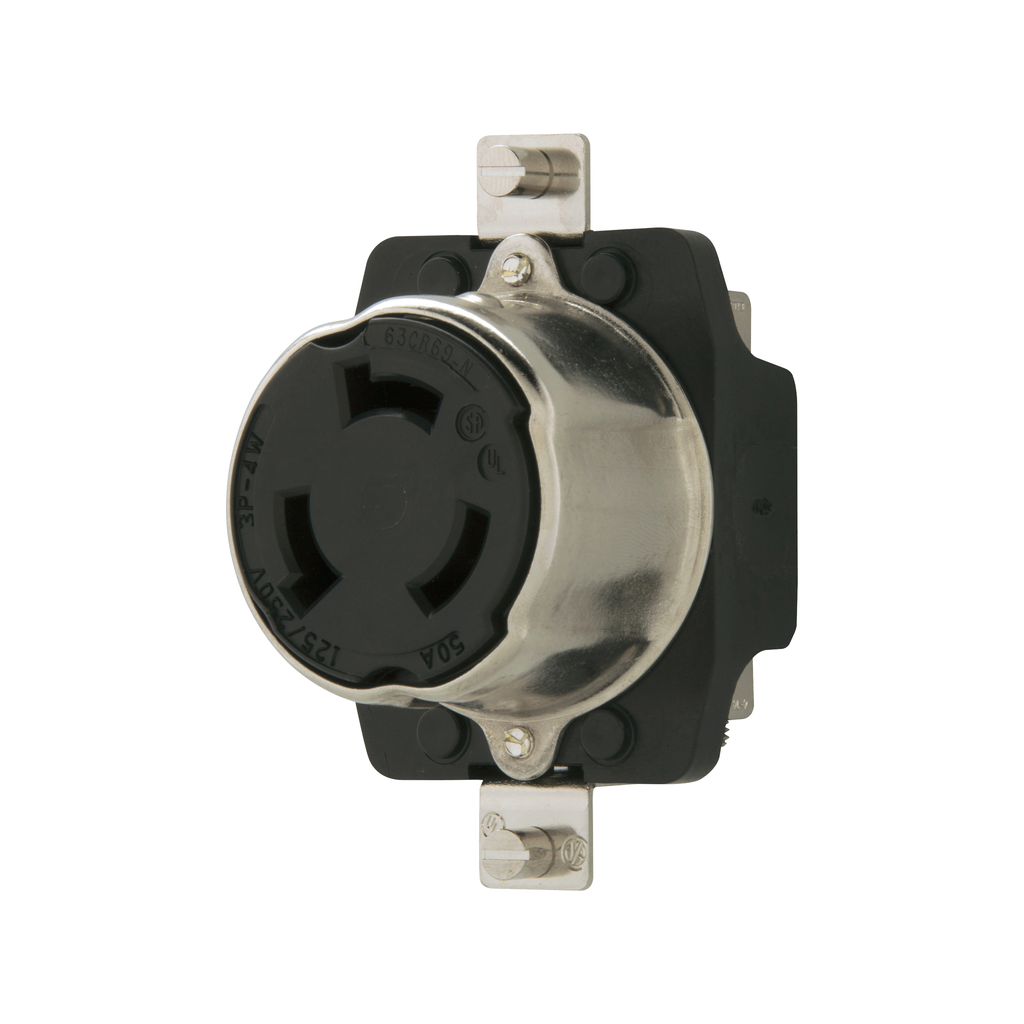

Locking Receptacle, Corrosion Resistant, 50A, 125/250V, Three-Pole, Marine, Non-NEMA, Black

Locking Receptacle, Corrosion Resistant, 50A, 125/250V, Three-Pole, Marine, Non-NEMA, Black

CPD63CR69 63CR69 040893682082
169.11 / Each
http://schema.org/OutOfStock
Mayer-DDS-Locking Receptacle, Corrosion Resistant, 50A, 125/250V, Three-Pole, Marine, Non-NEMA, Black-1
  • Amperage Rating: 50 A
  • Applications: Marine
  • Contact Material: Nickel Plated Brass
  • Material: Stainless Steel
  • Number of Poles: 3
  • Number of Wires: 4 Grounding
  • Wiring Method: Back
Eaton corrosion resistant locking receptacle, #12-6 AWG, 50A, Marine, 125/250V, Back wiring, Black, Single, Impact and chemical resistant, Non-NEMA, Three-pole, Four-wire, grounding, Steel
QTY
  • Product Description
  • Features
  • Specifications
Eaton corrosion resistant locking receptacle, #12-6 AWG, 50A, Marine, 125/250V, Back wiring, Black, Single, Impact and chemical resistant, Non-NEMA, Three-pole, Four-wire, grounding, Steel
  • Certifications
    • UL Listed
    • CSA certified
    • cULus Listed
  • Specifications
    • Amperage Rating : 50 A
    • Voltage Rating : 125/250 V
    • Operating Temperature : -40 to 105 °C (-40 to 221 °F)
    • Torque Rating : 45 lbf-inch
    • Allowable Wire Size : #12-6 AWG
    • Number of Poles : Three-pole
    • Number of Wires : 4 Grounding
    • Wiring Method : Back
    • Receptacle Type : Locking
    • Design Type : Single receptacle
    • Material : Stainless steel
    • Face/Body Material : Glass filled nylon
    • Contact Material : Nickel plated brass
    • Color : Black
    • Environmental Resistance : Impact and chemical resistant
    • NEMA Configuration : Non-NEMA
    • Application : Marine
