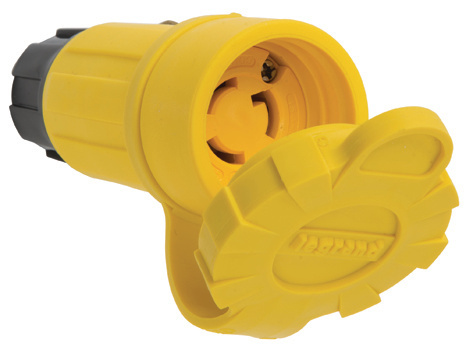

Locking Watertight Connector, 15amp 125volt, NEMA Configuration L5-15, multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, and IP67 rated.

• Features
• Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
• Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
• Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
• Devices resist high-pressure hose down of 1,500 psi.
• Color coded sealing bushings provided for large range of cord diameters
• Large ribs on body for a superior grip when mating.
• Certifications
• UL Listed
• CSA Listed

• Specifications
• Length : 4.03 in
• Width : 1.85 in
• Special Features : Watertight, rubber body construction, closure cap, nickel plated blades, multiple seals between plug/connector
• Country of Origin : Mexico
• Flanged : No
• Type : Connector
• Amperage : 15.0 A
• Standard : UL 498
• Voltage : 125.0 V
• Features : Watertight
• Indoor/Outdoor : Both
• Number of Wires : 3.0
• Warranty Type : 1-Year
• Connector Style : Locking
• Number of Poles : Double Pole
• Application Sector : Commercial
• NEMA Configuration Code : L5-15R
• Terminal Accommodation : #18 AWG - #10 AWG
• Color : Yellow
• Product Line : Pass & Seymour
