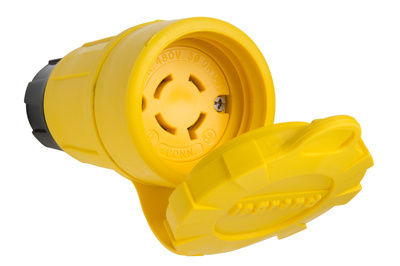

Rated watertight for 1,500 psi high-pressurehosedown, Pass and Seymour Turnlok watertight plugs and connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.

• Features
• Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat and weather.
• Nickel-plated blades and contacts for long-lasting, superior corrosion resistance.
• Multi-point sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
• Devices resist high-pressure hosedown of 1,500 psi.
• Color-coded sealing bushings provided for large range of cord diameters
• Large ribs on body for a superior grip when mating.
• For Covering Patents, see www.legrand.us/patents.

• Specifications
• Depth : 4.03 in
• Height : 1.85 in
• Color : Yellow
• Product Line : Pass & Seymour
• Width : 1.85 in
• Country of Origin : United States
• Flanged : No
• Type : Connector
• Amperage : 20.0 A
• Voltage : 480.0 V
• Standard : UL Listed
• Features : Watertight
• Indoor/Outdoor : Both
• Number of Wires : 4.0
• Standard : CSA Listed
• Number of Phases : 3.0
• Warranty Type : 1-Year
• Number of Poles : 3-Way
• Connector Style : Locking
• Application Sector : Industrial
• NEMA Configuration Code : L16-20R
• Environmental Conditions : Moisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
• Terminal Accommodation : #14 AWG - #10 AWG
• Special Features : Rated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
