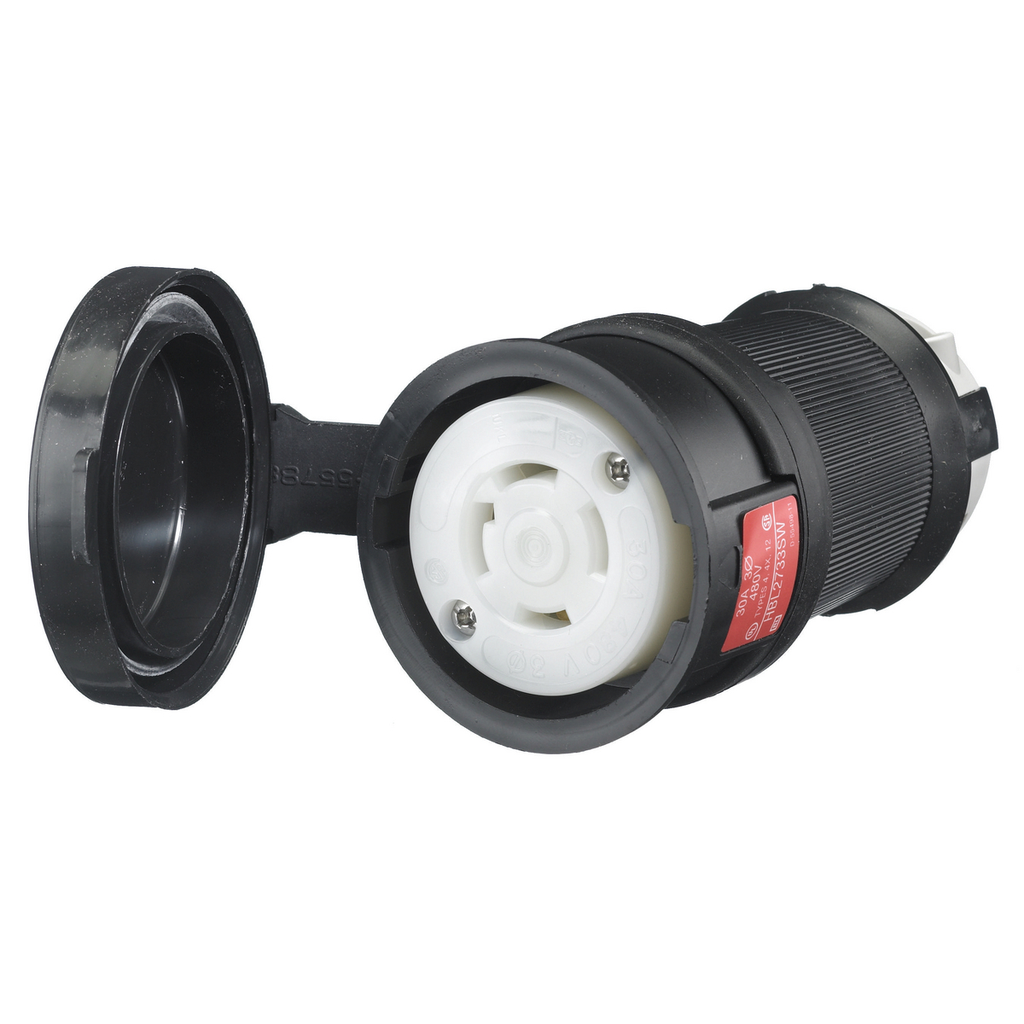

Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, , 30A 3-Phase Delta 480V AC, 3- Pole 4-Wire Grounding, NEMA L16-30R, Screw Terminal, Black PBT housing, White PBT clamps.

• Features
• UL Type 4X Environmental seal protects connection while in use.
• One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
• Closure cap is included for environmental seal when device is not in use
• Superior cord grip design protects terminations from excess strain.
• Shrouded Watertight Construction

• Specifications
• Country of Origin : US
• Current / Amperage Rating : 30 A
• Dimensions : 2.75 in x 2.75 in x 4.40 in
• Each - Width : 3.800 in
• Height : 4.40 in
• Industry Standard(s) : UL Listed, CSA Certified To Type 4, 4X And Type 12
• Length : 2.75 in
• Performance : Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Standards - RoHS Compliance Status : CM
• Amperage Rating : 30 A
• Application : Heavy Duty Industrial
• Color : Black, White
• Environmental Conditions : Watertight
• Insulation : Insulated Body
• NEMA Rating : L16-30R
• Number of Poles : 3-Pole
• Size : 2.75 in x 2.75 in x 4.40 in
• Special Features : Shrouded Watertight Construction
• Standard : UL Listed, CSA Certified To Type 4, 4X And Type 12
• Type : Connector Body
• Voltage Rating : 480 V
• Voltage Rating Description : 480 V
• Width : 2.75 in
• Connectivity : Pressure Terminal Screws
• Dielectric Strength : Withstands 2,000V minimum
• Display Size : Standard
• Nema Rating : L16-30R
• Number Of Poles : 3-Pole
• Number Of Wires : 4-Wire
• Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact
• Phase : Three Phase
• Weight : 0.70 lb.
• Wire Size : #16 AWG to #8 AWG
• Class Code : A08
• Description - Invoice : LKG WT S/SHRD CONN, 30A3P 480V,L16-30R
• Freight Class Code : 06168002
• Harmonization Code : 8536690200
• Image Actual Or Representative : A
• MSDS Flag : No
• Sub Class Code : A08A130
• Cable Range : 0.350 - 1.150 in
• Cord Range : 0.350"-1.150" (9-29)
• Material - Mounting Hardware : Cord Mounted
• Cord Diameter : 0.350-1.150 in
• Current Rating : 30 A
• Material : Composite
• Base Unit of Measure : EA
• BOX SIZE : 5.800x18.800x8.100 (in)
• Carton - Gross Weight per Pack : 7.35 lb.
• Carton - Number of Sub Packs : 10
• Carton - Pack Description : Carton
• Carton - SCC-14 Next Lower Level Sub Pack : 783585231945
• Carton - Total Units : 10 EA
• Case Weight : 5.321 lb.
• Each - Pack Description : Each
• Lowest Level UOM : Each
• Pallet - GTIN - Package : 70783585231944
• Pallet Height : 46.400 in
• Pallet Length : 48.000 in
• Pallet Weight : 907.200 lb.
• Pallet Width : 40.000 in
• Certifications
• EU RoHS Indicator : Yes
