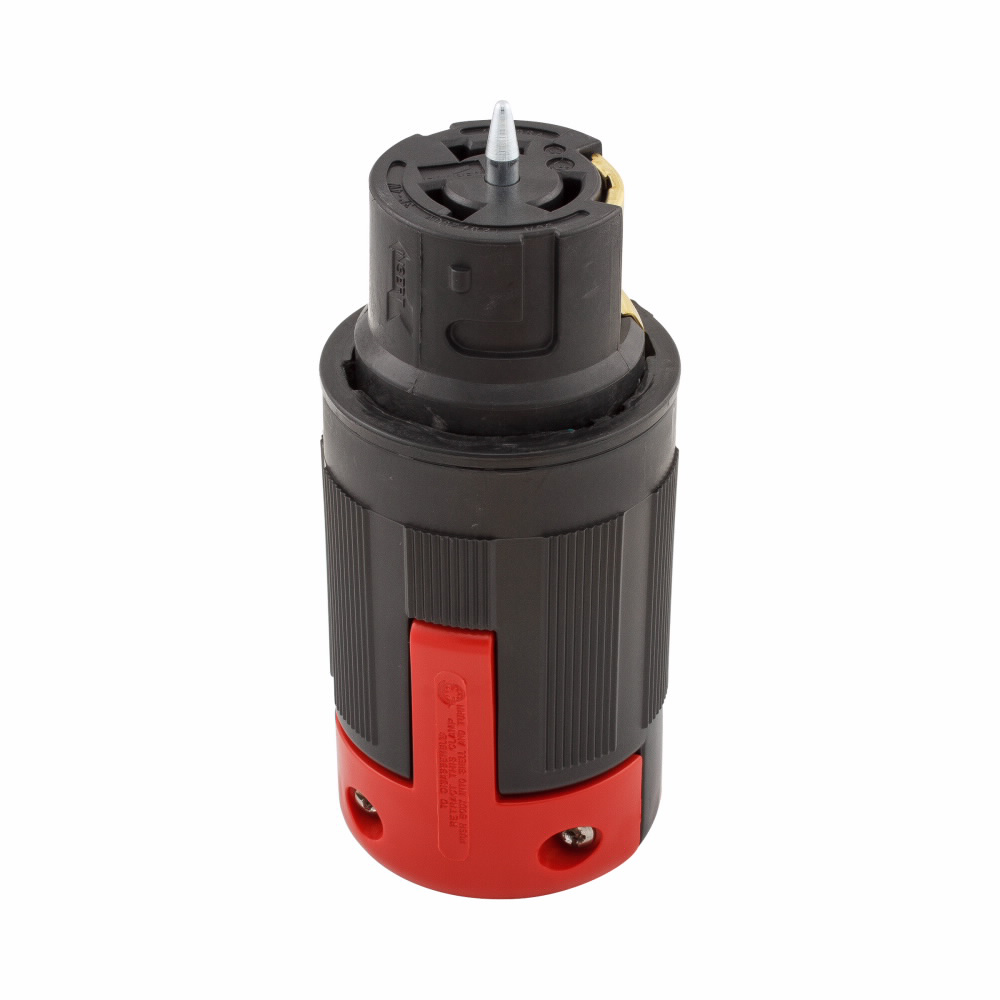

Eaton locking connector, #10-6 AWG, 50A, Industrial, 125/250V, Back wiring, Black, red, Non-NEMA, Three-pole, Four-wire, Nylon, 0.44 to 1.25 in, California standard

3P4W 50A TWIST LOCK

CPDCS6364EX CS6364EX 032664663871
114.22 / Each
http://schema.org/OutOfStock
Mayer-DDS-Eaton locking connector, #10-6 AWG, 50A, Industrial, 125/250V, Back wiring, Black, red, Non-NEMA, Three-pole, Four-wire, Nylon, 0.44 to 1.25 in, California standard-1
  • Amperage: 50 A
  • Height: 3.38 in
  • Length: 6.94 in
  • Material: Nylon
  • Type: Locking Connector
  • Weight: 1.05 lb
QTY
  • Specifications
  • Specifications
    • Special features : Locking connector
    • Color : Red
    • Face/body material : Glass filled nylon
    • Wiring method : Back
    • Material : Nylon
    • Standard : California standard
    • Allowable wire size : #10-4 AWG
    • Amperage Rating : 50 A
    • Number Of Poles : Three-pole
    • Contact material : Zinc plated brass
    • Type : Locking connector
    • Device grade : Extra heavy duty
    • NEMA configuration : Non-NEMA
    • Design type : Pro grip
    • Number of wires : Grounding
    • Operating temperature : -40 to 105 °C (-40 to 221 °F)
    • Voltage rating : 125/250 V
    • Cord diameter : 0.44-1.06 in (11.1-26.0 mm)
    • Application : Industrial
  • General
    • UPC : 032664663871
    • Product Length/Depth : 6.94 in
    • Product Height : 3.38 in
    • Product Width : 3.61 in
    • Product Weight : 1.05 lb
    • Warranty : Refer to warranty document.
    • Certifications : cULus Listed
