PASS & SEYMOUR

20A 125V Construction Spec-Grade Tamper-Resistant Single Receptacle, Back and Side Wire, White

TAMPER RSNT SNGL RCPT 20A/125

PSSTR5351W TR5351-W 785007241945
11.06 / EACH
http://schema.org/OutOfStock

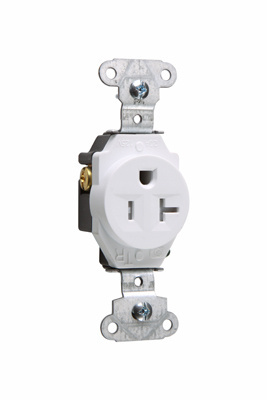

Mayer-DDS-20A 125V Construction Spec-Grade Tamper-Resistant Single Receptacle, Back and Side Wire, White-1
  • Country of Origin: Mexico
  • Finish: Matte
Tamper-Resistant Construction Spec Grade Single Receptacles, Back and Side Wire, 20A, 125V
QTY
  • Product Description
  • Features
  • Specifications
Tamper-Resistant Construction Spec Grade Single Receptacles, Back and Side Wire, 20A, 125V
  • Features
    • Dual mechanical shutter system to help prevent insertions of foreign objects.
    • AC receptacles available in 15 and 20A, 125V.
    • .032 inch thick brass triple-wipe power contacts for lasting retention.
    • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
    • Auto-ground clip assures positive ground.
    • Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
    • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Certifications
    • cULus Listed
  • Specifications
    • Country of Origin : Mexico
    • Color : White
    • Finish : Matte
    • Product Line : Pass & Seymour
