PASS & SEYMOUR

15A 125V Construction Spec-Grade Tamper-Resistant Single Receptacle, Back and Side Wire, White

TAMPER RSNT SNGL RCPT 15A/125

PSSTR5251W TR5251-W 785007241938
9.28 / EACH
http://schema.org/OutOfStock

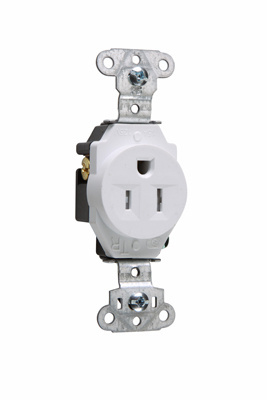

Mayer-DDS-15A 125V Construction Spec-Grade Tamper-Resistant Single Receptacle, Back and Side Wire, White-1
  • Amperage: 15 A
  • Applications: Commercial
  • Country of Origin: Mexico
  • Depth: 1.19 in
  • Dielectric Strength: 2000 V
  • Finish: Matte
  • Height: 3.28 in
  • Indoor/Outdoor: Indoor
  • Number of Poles: 2
  • Number of Receptacles: 1.0
  • Number of Wires: 3
  • Operating Temperature: 40 °F, 60 °F
  • Outlet Type: Straight Blade, Tamper-Resistant
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.38 in
  • Wire Size: 10 AWG
Tamper-Resistant Construction Spec Grade Single Receptacles, Back and Side Wire, 15A, 125V
QTY
  • Product Description
  • Features
  • Specifications
Tamper-Resistant Construction Spec Grade Single Receptacles, Back and Side Wire, 15A, 125V
  • Features
    • Dual mechanical shutter system to help prevent insertions of foreign objects.
    • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
    • .032 inch thick brass triple-wipe power contacts for lasting retention.
    • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
    • Auto-ground clip assures positive ground.
    • Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
    • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 1.19 in
    • Height : 3.28 in
    • Standard : UL498
    • Amperage : 15.0 A
    • Width : 1.38 in
    • Voltage : 125.0 V
    • Country of Origin : Mexico
    • Number of Wires : 3.0
    • Indoor/Outdoor : Indoor
    • Wire Size : 14 - 10 AWG
    • Wall Plate Included : No
    • Is Tamper-Resistant : Yes
    • Number of Receptacles : 1.0
    • Standard : CSA C22.2 No. 42
    • Outlet Type : Straight Blade
    • Number of Poles : Double Pole
    • Outlet Type : Tamper-Resistant
    • Application Sector : Commercial
    • NEMA Configuration Code : 5-15R
    • Connection Location : Back and Side
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Operating Temperature Max : 60.0 °C
    • Operating Temperature Min : -40.0 °C
    • Features : Heavy Duty Steel Mounting Strap
    • Operating Temperature : -40°-60°C
    • Dielectric Strength : Withstands 2000V minimum
    • Color : White
    • Finish : Matte
    • Product Line : Pass & Seymour
