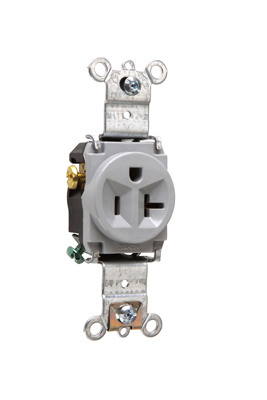

20A 125V Heavy Duty Spec-Grade Single Receptacle, Back and Side Wire, Gray

RECP SGL 20A 125V S+B WIRE GRY

PSS5361GRY 5361-GRY 785007536133
21.66 / EACH
http://schema.org/OutOfStock
Mayer-DDS-20A 125V Heavy Duty Spec-Grade Single Receptacle, Back and Side Wire, Gray-1
  • Amperage: 20 A
  • Applications: Commercial
  • Country of Origin: Mexico
  • Depth: 1.093 in
  • Dielectric Strength: 2000 V
  • Finish: Matte
  • Height: 1.68 in
  • Indoor/Outdoor: Indoor
  • Mounting Type: Box
  • Number of Gangs: 1
  • Number of Poles: 2
  • Number of Receptacles: 1.0
  • Number of Wires: 3
  • Operating Temperature: 40 °F, 60 °F
  • Outlet Type: Straight Blade
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.32 in
  • Wire Size: 10 AWG
Heavy-Duty Spec Grade Single Receptacle, Back and Side Wire, 20A 125V
QTY
  • Product Description
  • Features
  • Specifications
Heavy-Duty Spec Grade Single Receptacle, Back and Side Wire, 20A 125V
  • Features
    • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
    • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
    • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
    • Impact-resistant nylon face and thermoplastic back body.
    • Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.
    • Terminal compartments isolated from each other for positive conductor containment.
    • Auto-ground clip assures positive ground.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
    • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Certifications
    • cUL Listed
  • Specifications
    • Depth : 1.093 in
    • Color : Gray
    • Height : 1.68 in
    • Finish : Matte
    • Width : 1.32 in
    • Product Line : Pass & Seymour
    • Country of Origin : Mexico
    • Standard : UL498
    • Amperage : 20.0 A
    • Voltage : 125.0 V
    • Standard : FEDSPEC
    • Mounting Type : Box
    • Number of Gangs : 1
    • Number of Wires : 3.0
    • Indoor/Outdoor : Indoor
    • Wire Size : 14 - 10 AWG
    • Wall Plate Included : No
    • Number of Receptacles : 1.0
    • Standard : CSA C22.2 No. 42
    • Outlet Type : Straight Blade
    • Number of Poles : Double Pole
    • Application Sector : Commercial
    • NEMA Configuration Code : 5-20R
    • Connection Location : Back and Side
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Operating Temperature Max : 60.0 °C
    • Operating Temperature Min : -40.0 °C
    • Operating Temperature : -40°-60°C
    • Dielectric Strength : Withstands 2000V minimum
    • Wire Connection Type : Internal Pressure Plates
    • Features : Single Piece Plated Steel Mounting Strap
