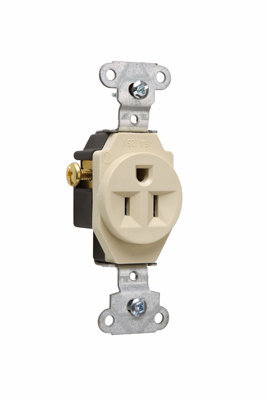

15A 125V Heavy Duty Spec-Grade Single Receptacle, Side Wire, Ivory

RECEPT - SINGLE 15A 125V IV SP

PSS5251I 5251-I 785007525113
6.68 / EACH
http://schema.org/OutOfStock
Mayer-DDS-15A 125V Heavy Duty Spec-Grade Single Receptacle, Side Wire, Ivory-1
  • Amperage: 15 A
  • Applications: Commercial
  • Country of Origin: Mexico
  • Depth: 1.08 in
  • Finish: Matte
  • Indoor/Outdoor: Indoor
  • Number of Poles: 2
  • Number of Receptacles: 1.0
  • Number of Wires: 3
  • Operating Temperature: 40 °F, 60 °F
  • Outlet Type: Straight Blade
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.38 in
  • Wire Size: 10 AWG
Heavy-Duty Spec Grade Single Receptacle Side, Wire 15A 125V
QTY
  • Product Description
  • Features
  • Specifications
Heavy-Duty Spec Grade Single Receptacle Side, Wire 15A 125V
  • Features
    • Auto-ground clip assures positive ground.
    • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
    • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
    • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
    • One-piece brass triple-wire power contacts for lasting retention.
    • For covering patents, see www.legrand.us/patents.
    • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 1.08 in
    • Width : 1.38 in
    • Amperage : 15.0 A
    • Country of Origin : Mexico
    • Standard : UL 498
    • Voltage : 125.0 V
    • Number of Wires : 3.0
    • Indoor/Outdoor : Indoor
    • Wire Size : 14 - 10 AWG
    • Wall Plate Included : No
    • Number of Receptacles : 1.0
    • Outlet Type : Straight Blade
    • Number of Poles : Double Pole
    • Application Sector : Commercial
    • Connection Location : Side Only
    • NEMA Configuration Code : 5-15R
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Operating Temperature Max : 60.0 °C
    • Operating Temperature Min : -40.0 °C
    • Features : Heavy Duty Steel Mounting Strap
    • Operating Temperature : -40°-60°C
    • Color : Ivory
    • Finish : Matte
    • Product Line : Pass & Seymour
