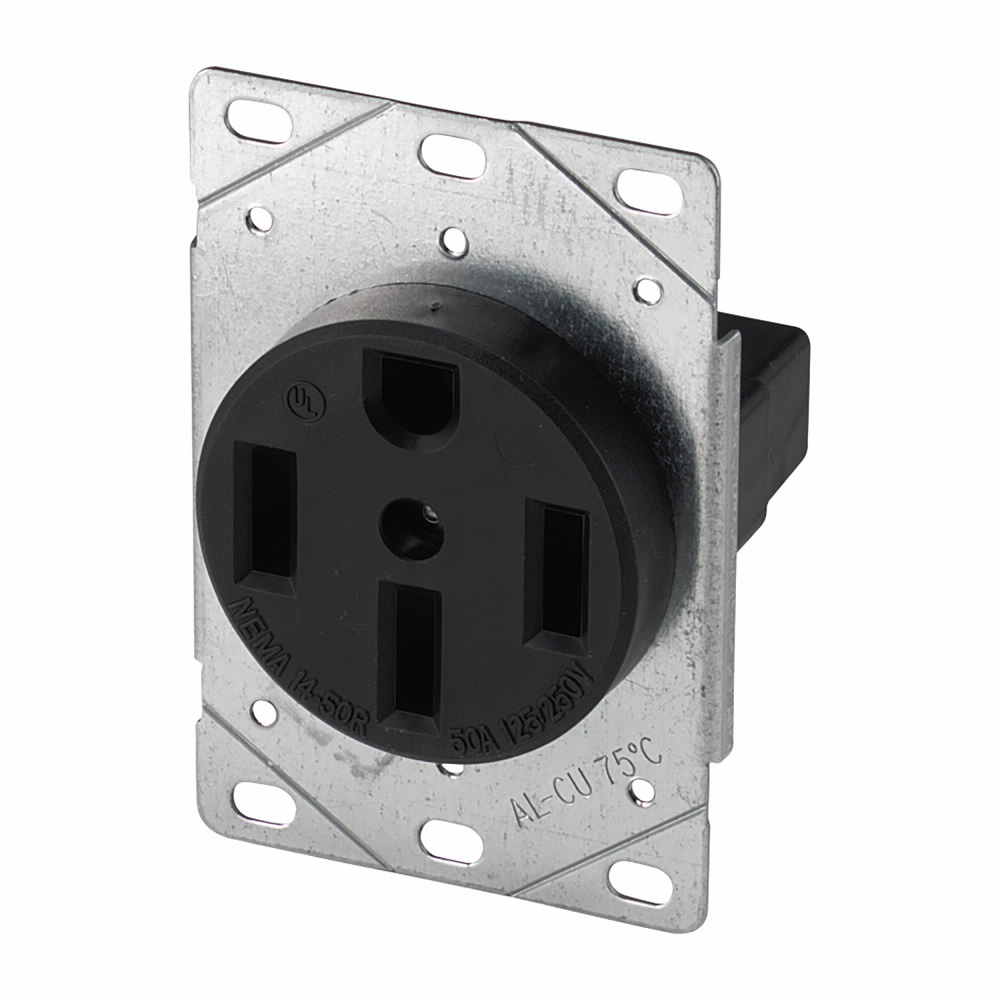

Range Power Receptacle

CWD 1258-SP 50A 125/250V FL RC

CPD1258SP 1258-SP TT032664306907

45.52 / EA

http://schema.org/OutOfStock

Mayer-DDS-Range Power Receptacle-1

Amperage: 50 A
Connection Type: Screw
Height: 8 in
Length: 2.5 in
Material: Glass-filled Nylon
Mounting Type: Flush
NEMA: 14-50R
Number of Poles: 3
Number of Wires: 3
Receptacle Type: Non Grounding
Style: Power
Type: Receptacle
Voltage: 125/250 V
Width: 5 in
Wire Size: 4 AWG
Wiring Method: Back

QTY

Features
Specifications

Certifications

CSA Certified
UL Listed

Product Compliance

RoHS Compliant
NAFTA

Specifications

Color : Black
Design Type : Receptacle
Nema Configuration : 14-50R
Number Of Poles : Three-pole
Number Of Wires : Three-wire
Receptacle Type : Three-pole, three-wire, non grounding
Connection Type : Screw
Material : Glass-filled nylon
Style : Power
Used_With : S21
Special Features : Range
Allowable Wire Size : #12 - 4 AWG
Amperage Rating : 50A
Mounting Type : Flush
Voltage Rating : 125/250V
Wiring Method : Back
Height : 8 IN
Length : 2.5 IN
Width : 5 IN
