PASS & SEYMOUR

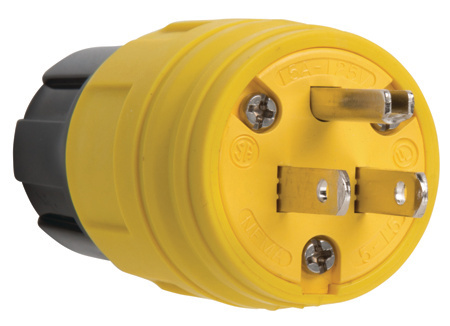

15A, 125V Watertight Straight Blade Plug, Yellow

STR BLD IP67 PLUG 15A 125V 5-1

PSS14W47 14W47 785007114140
31.52 / EACH
http://schema.org/OutOfStock
Mayer-DDS-15A, 125V Watertight Straight Blade Plug, Yellow-1
  • Amperage: 15 A
  • Applications: Industrial
  • Country of Origin: USA
  • Depth: 2.62 in
  • Indoor/Outdoor: Indoor, Outdoor
  • NEMA: 5-15P
  • Number of Poles: 2
  • Number of Wires: 3
  • Type: Plug
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.85 in
Rated watertight for 1,500 psi high-pressure hosedown, Pass and Seymour plugs and connectors feature multiple seals to ensure protection against the environment. Constructed of a sturdy rubber body, which makes them impact- and chemical-resistant, they have nickel-plated blades and contacts for superior corrosion resistance.
QTY
  • Product Description
  • Features
  • Specifications
Rated watertight for 1,500 psi high-pressure hosedown, Pass and Seymour plugs and connectors feature multiple seals to ensure protection against the environment. Constructed of a sturdy rubber body, which makes them impact- and chemical-resistant, they have nickel-plated blades and contacts for superior corrosion resistance.
  • Features
    • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat and weather.
    • Nickel-plated blades and contacts for long-lasting, superior corrosion resistance.
    • Devices resist high-pressure hose down of 1,500 psi.
    • Color-coded sealing bushings provided for a large range of cord diameters.
    • Large ribs on body for a superior grip when mating.
    • For covering patents, see www.legrand.us/patents.
  • Certifications
    • UL Listed
    • CSA Listed
  • Specifications
    • Depth : 2.62 in
    • Width : 1.85 in
    • Color : Yellow
    • Product Line : Pass & Seymour
    • Country of Origin : United States
    • Flanged : No
    • Standard : UL498
    • Amperage : 15.0 A
    • Voltage : 125.0 V
    • NEMA Rating : 5-15P
    • Features : Watertight
    • Indoor/Outdoor : Both
    • Number of Wires : 3.0
    • Warranty Type : 1-Year
    • Number of Poles : Double Pole
    • Application Sector : Industrial
    • NEMA Configuration Code : 5-15P
    • Connector Style : Straight Blade
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Special Features : Rubber housing, nickel plated blades & contacts
    • Type : Plug
