WIREMOLD

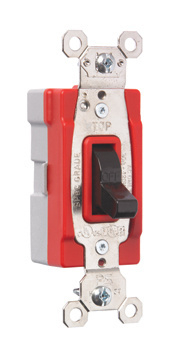

PlugTail® Single Pole 15A Toggle Switch, Black

PT 20A 120/277V SP SW BK

WRMPT20AC1BK 785007026252
9.41 / EA
http://schema.org/OutOfStock
Mayer-DDS-PlugTail® Single Pole 15A Toggle Switch, Black-1
  • Amperage: 15 A
  • Applications: Commercial, Industrial
  • Country of Origin: Mexico
  • Finish: Matte
  • Indoor/Outdoor: Indoor
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 1
  • Number of Switches: 1
  • Switch Type: Toggle
  • Type: Switch
  • Voltage: 120/277 V
  • Warranty Length: 1 yr
PlugTail® Single-Pole 15A Toggle Switch
QTY
  • Product Description
  • Features
  • Specifications
PlugTail® Single-Pole 15A Toggle Switch
  • Features
    • One-piece nickel-plated mounting strap for superior corrosion resistance
    • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
    • Large brass contacts snugly terminate on device blade terminals. Audible snapping latch assures connection, allows release.
    • Polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
    • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
    • No exposed terminals create a finger safe application before, during, and after installation.
    • Glass-reinforced nylon back body for durability and strength.
    • Heavy-duty bumpers for quiet, smooth operation.
    • Shallow design for easier installation.
    • Auto-ground clip assures positive ground.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Certifications
    • cULus Listed
  • Specifications
    • Country of Origin : Mexico
    • Type : Switch
    • Amperage : 15.0 A
    • Standard : FEDSPEC
    • Features : PlugTail
    • Number of Gangs : 1
    • Voltage : 120/277 V
    • Switch Type : Toggle
    • Indoor/Outdoor : Indoor
    • Mounting Type : Wall Box
    • Number of Switches : 1.0
    • Wall Plate Included : No
    • Throw Type : Single Throw
    • Requires Neutral Wire : No
    • Number of Poles : Single Pole
    • Application Sector : Commercial
    • Application Sector : Industrial
    • Connection Location : Back Only
    • Wire Connection Type : PlugTail
    • Warranty Type : 1-Year Limited Warranty
    • Terminal Accommodation : #14 AWG - #12 AWG
    • Color : Black
    • Finish : Matte
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
