PlugTail® 20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, Gray

PT DUP RECEP HG TR 20A/125V GR

PSSPTTR8300GRY PTTR8300-GRY 785007013412
29.08 / EACH
http://schema.org/OutOfStock

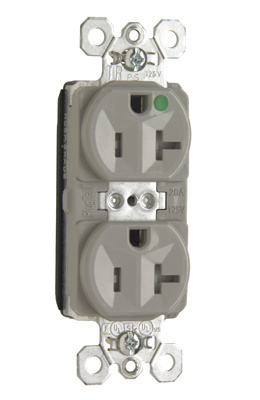

Mayer-DDS-PlugTail® 20A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, Back and Side Wire, Gray-1
  • Amperage: 20 A
  • Applications: Commercial, Healthcare
  • Country of Origin: Mexico
  • Depth: 0.625 in
  • Finish: Matte
  • Height: 3.281 in
  • Indoor/Outdoor: Indoor
  • Number of Poles: 2
  • Number of Receptacles: 2.0
  • Number of Wires: 3
  • Operating Temperature: 40 °F, 60 °F
  • Outlet Type: Hospital Grade, Tamper-Resistant
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.5 in
  • Wire Size: 10 AWG
PlugTail® Tamper-Resistant Hospital Grade Duplex Receptacle, Back and Side Wire, 20A, 125V. PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
QTY
  • Product Description
  • Features
  • Specifications
PlugTail® Tamper-Resistant Hospital Grade Duplex Receptacle, Back and Side Wire, 20A, 125V. PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
  • Features
    • Dual mechanical shutter system to help prevent insertion of foreign objects
    • Brushed finish.
    • Plated steel wrap strap design for maximum durability and corrosion resistance.
    • No exposed terminals create a finger safe application before, during, and after installation.
    • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
    • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
    • Auto-ground clip assures positive ground.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
    • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
    • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Specifications
    • Depth : 0.625 in
    • Height : 3.281 in
    • Amperage : 20.0 A
    • Standard : UL 498
    • Width : 1.5 in
    • Country of Origin : Mexico
    • Voltage : 125.0 V
    • Standard : FEDSPEC
    • Number of Wires : 3.0
    • Indoor/Outdoor : Indoor
    • Wire Size : 14 - 10 AWG
    • Wall Plate Included : No
    • Is Tamper-Resistant : Yes
    • Number of Receptacles : 2.0
    • Outlet Type : Hospital Grade
    • Number of Poles : Double Pole
    • Outlet Type : Tamper-Resistant
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • Connection Location : Back Only
    • NEMA Configuration Code : 5-20R
    • Wire Connection Type : PlugTail
    • Warranty Type : 1-Year Limited Warranty
    • Operating Temperature Max : 60.0 °C
    • Operating Temperature Min : -40.0 °C
    • Operating Temperature : -40°-60°C
    • Color : Gray
    • Finish : Matte
    • Product Line : Pass & Seymour
    • Features : Single Piece Plated Steel Mounting Strap
