PlugTail® 20A 125V Heavy Duty Hospital-Grade Compact Duplex Receptacle, White

HOSP GRADE EHD DUP RECEPT 20A

PSSPT8300HW PT-8300HW 785007091434
15.00 / EACH
http://schema.org/OutOfStock

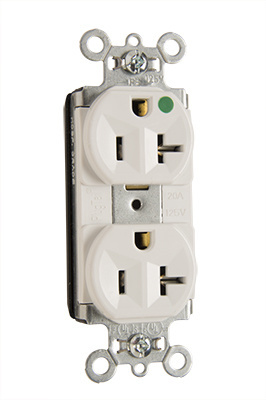

Mayer-DDS-PlugTail® 20A 125V Heavy Duty Hospital-Grade Compact Duplex Receptacle, White-1
  • Amperage: 20 A
  • Applications: Commercial, Healthcare
  • Country of Origin: Mexico
  • Depth: 0.625 in
  • Dielectric Strength: 2000 V
  • Finish: Matte
  • Height: 3.281 in
  • Indoor/Outdoor: Indoor
  • Number of Poles: 2
  • Number of Receptacles: 2.0
  • Number of Wires: 3
  • Operating Temperature: 40 °F, 60 °F
  • Outlet Type: Hospital Grade
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.5 in
  • Wire Size: 10 AWG
PlugTail® Heavy-Duty Compact Design Hospital-Grade Duplex Receptacle PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
QTY
  • Product Description
  • Features
  • Specifications
PlugTail® Heavy-Duty Compact Design Hospital-Grade Duplex Receptacle PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.
  • Certifications
    • cULus Listed
  • Features
    • Large brass contacts snugly terminate on device blade terminals.
    • Wire Size: #12 AWG THHN
  • Specifications
    • Depth : 0.625 in
    • Height : 3.281 in
    • Color : White
    • Finish : Matte
    • Width : 1.5 in
    • Product Line : Pass & Seymour
    • Country of Origin : Mexico
    • Standard : CUL
    • Standard : FSUL
    • Amperage : 20.0 A
    • Voltage : 125.0 V
    • Standard : FEDSPEC
    • Standard : CSA Lsied
    • Standard : UL Listed
    • Number of Wires : 3.0
    • Indoor/Outdoor : Indoor
    • Wire Size : 14 - 10 AWG
    • Wall Plate Included : No
    • Number of Receptacles : 2.0
    • Outlet Type : Hospital Grade
    • Number of Poles : Double Pole
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • Connection Location : Back Only
    • NEMA Configuration Code : 5-20R
    • Wire Connection Type : PlugTail
    • Warranty Type : 1-Year Limited Warranty
    • Operating Temperature Max : 60.0 °C
    • Operating Temperature Min : -40.0 °C
    • Operating Temperature : -40°-60°C
    • Dielectric Strength : Withstands 2000V minimum
    • Features : Single Piece Plated Steel Mounting Strap
