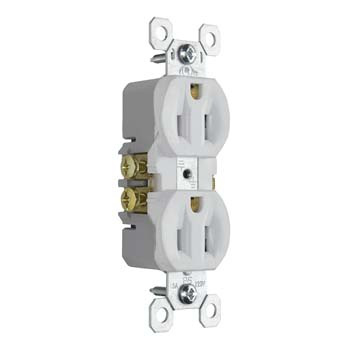

Trademaster® 15A 125V Tamper-Resistant Duplex Receptacle, White

DUPLEX REC TR 15A/125V WHITE

PSS3232TRW 3232-TRW 785007240276
2.42 / EACH
http://schema.org/OutOfStock
  • Amperage: 15 A
  • Applications: Hospitality, Residential
  • Country of Origin: Vietnam
  • Depth: 1 in
  • Finish: Matte
  • Height: 3.31 in
  • Indoor/Outdoor: Indoor
  • Number of Poles: 2
  • Number of Receptacles: 2.0
  • Number of Wires: 3
  • Outlet Type: Tamper-Resistant
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.32 in
Our Pass & Seymour TradeMaster® receptacles combine a traditional look with reliable, time-tested operation for any residential application. This receptacle is also outfitted with our patented automatic shutter system to prevent young children from inserting common objects, such as hairpins or keys. The shutters release when a plug is inserted. Required by the National Electrical Code® (NEC®).For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
QTY
  • Features
  • Specifications
  • Certifications
    • UL Listed
    • cULus Listed
  • Features
    • Quality Materials, durability, and time-tested design
    • Rated 15 amperes
    • Side wire termination accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
  • Specifications
    • Country of Origin : Vietnam
    • Depth : 1.0 in
    • Height : 3.31 in
    • Width : 1.32 in
    • Color : White
    • Finish : Matte
    • Product Line : Pass & Seymour
    • Amperage : 15.0 A
    • Number of Poles : Double Pole
    • Indoor/Outdoor : Indoor
    • Number of Receptacles : 2.0
    • Standard : UL 498
    • Is Tamper-Resistant : Yes
    • Outlet Type : Tamper-Resistant
    • Application Sector : Residential; Hospitality
    • Number of Wires : 3.0
    • Connection Location : Back and Side
    • Wire Connection Type : Screw Terminals; Push Wire
    • Wall Plate Included : No
    • Warranty Type : 1-Year Limited Warranty
    • Voltage : 125.0 V
    • Terminal Accommodation : #14 AWG - #10 AWG
    • NEMA Configuration Code : 5-15R
