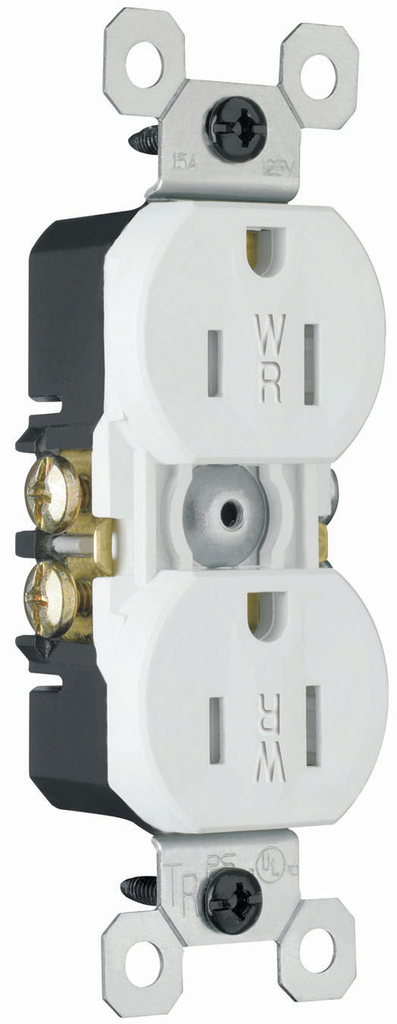

Whether you need to plug in a hedge trimmer, light a driveway, pathway or deck, or enjoy your favorite music by the pool, our Pass & Seymour weather-resistant receptacles are the better solution. And since this receptacle is tamper resistant as required by the National Electrical Code® (NEC®), you can feel confident that your children will be protected.

• Features
• Residential Weather-Resistant Receptacles are Tamper-Resistant as required by 2008 National Electrical Code.
• Listed to the Weather-Resistant supplement of UL498, meeting demanding UL requirements including: Ultraviolet light exposure test; Cold impact test; Accelerated aging test; Stringent material requirements for current-carrying parts, wire binding screws and mounting straps to ensure superior corrosion resistance.
• WR markings on face per UL Weather-Resistant requirements.
• Patented internal shutter system lets plugs in, but keeps keys and other objects out with automatic shutters that block access.
• Side wire accepts #12 – #14 AWG solid wire.
• Push wire accepts #14 AWG solid only.
• Low profile face.
• Traditional contoured face.
• High-impact resistant thermoplastic construction.
• Safer and more effective than plastic outlet caps.
• TR markings identify devices as Tamper-Resistant.
• For covering patents, see www.legrand.us/patents.
• Eco-Benefit Information
• RoHS Compliant

• Buy American Act Compliance
• Country Of Origin : MEXICO
• Buy American Act Status : Trade Agreement Act Compliant
• Technical Information
• Amps : 15A
• NEMA Configuration Number : 5-15R
• NEMA Rating : Yes
• Volts : 125
• Volts (AC) : 125
• Dimensions
• Depth (US) : 1.0"
• Height (US) : 3.31"
• Width (US) : 1.32"
• General Info
• Color : White
• Type : Duplex
• Number Of Poles : 2
• Number Of Wires : 3
• Special Features : Weather-Resistant
• Listing Agencies/Third Party Certifications
• RoHS : Yes
• CSA Listing Info : C22.2 No.42
• CSA Standard : Yes
• cULus : Yes
• UL Listing No : UL498
• UL Standard : Yes
• UN SPSC : 39121406
