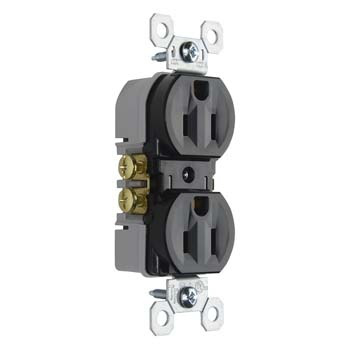

Trademaster® 15A 125V Tamper-Resistant Duplex Receptacle, Black

DUPLEX REC TR 15A/125V BLACK

PSS3232TRBK 3232-TRBK 785007240306
2.44 / EACH
http://schema.org/OutOfStock
  • Amperage: 15 A
  • Applications: Hospitality, Residential
  • Country of Origin: China
  • Depth: 1 in
  • Finish: Matte
  • Height: 3.31 in
  • Indoor/Outdoor: Indoor
  • Number of Poles: 2
  • Number of Receptacles: 2.0
  • Number of Wires: 3
  • Outlet Type: Tamper-Resistant
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.32 in
Our Pass & Seymour TradeMaster® receptacles combine a traditional look with reliable, time-tested operation for any residential application. This receptacle is also outfitted with our patented automatic shutter system to prevent young children from inserting common objects, such as hairpins or keys. The shutters release when a plug is inserted. Required by the National Electrical Code® (NEC®).For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
QTY
  • Features
  • Specifications
  • Certifications
    • UL Listed
    • cULus Listed
  • Features
    • Quality Materials, durability, and time-tested design
    • Rated 15 amperes
    • Side wire termination accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
  • Specifications
    • Country of Origin : China
    • Depth : 1.0 in
    • Height : 3.31 in
    • Width : 1.32 in
    • Color : Black
    • Finish : Matte
    • Product Line : Pass & Seymour
    • Amperage : 15.0 A
    • Number of Poles : Double Pole
    • Indoor/Outdoor : Indoor
    • Number of Receptacles : 2.0
    • Is Tamper-Resistant : Yes
    • Outlet Type : Tamper-Resistant
    • Application Sector : Residential; Hospitality
    • Wall Plate Included : No
    • Number of Wires : 3.0
    • Warranty Type : 1-Year Limited Warranty
    • Voltage : 125.0 V
    • Connection Location : Back and Side
    • Wire Connection Type : Push Wire; Screw Terminals
    • Terminal Accommodation : #14 AWG - #10 AWG
    • NEMA Configuration Code : 5-15R
