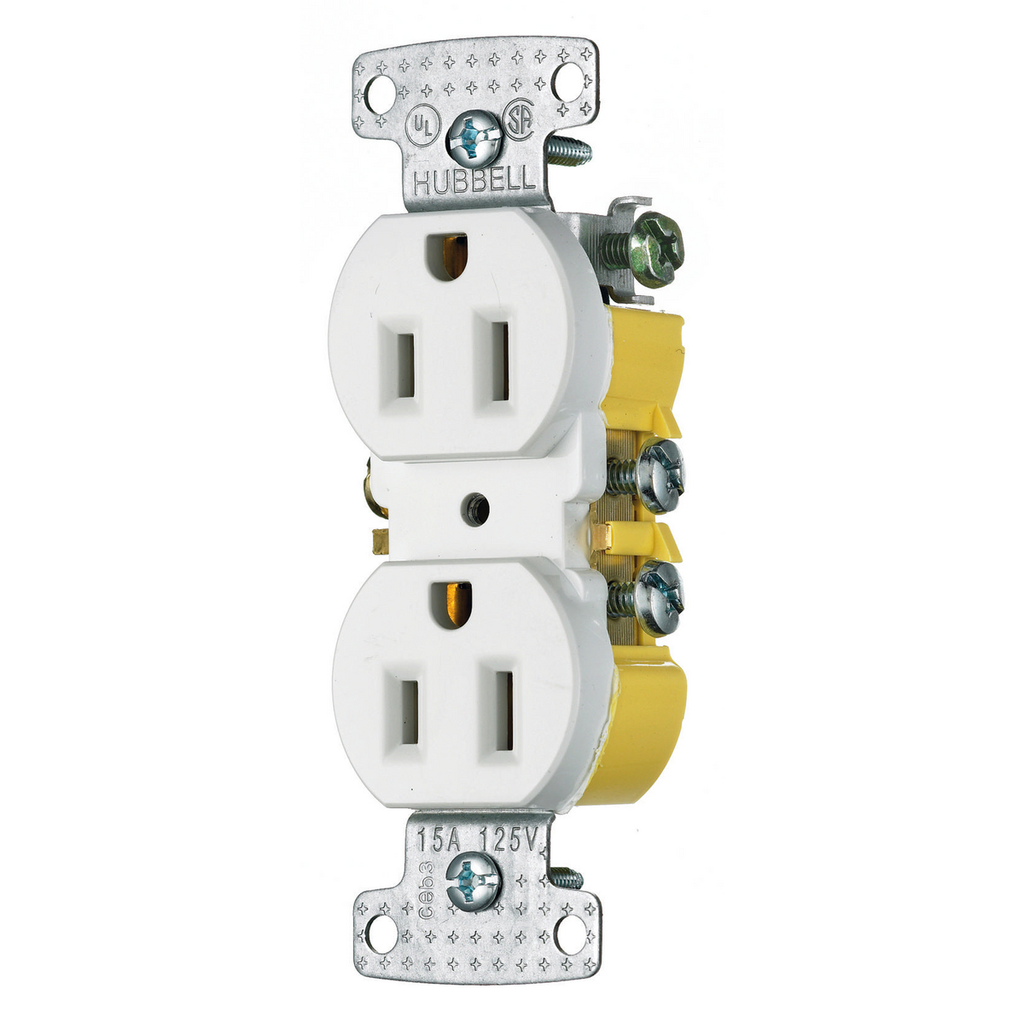

tradeSELECT® Straight Blade Receptacle Duplex 15A Push Terminals

tradeSELECT® Straight Blade Receptacle Duplex 15A Push Terminals

HUBRR15W RR15W 883778100031
1.53 / EACH
http://schema.org/OutOfStock
Mayer-DDS-tradeSELECT® Straight Blade Receptacle Duplex 15A Push Terminals-1
  • Amperage: 15 A
  • Country of Origin: China
  • Current: 15 A
  • Material: Thermoplastic
  • Number of Poles: 2
  • Number of Wires: 3
  • Wattage: 1875 W
  • Width: 1.590 in
  • Wire Size: 14-12 AWG
tradeSELECT® Straight Blade Receptacle, Residential Grade, Duplex, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Push Terminals
QTY
  • Product Description
  • Features
  • Specifications
tradeSELECT® Straight Blade Receptacle, Residential Grade, Duplex, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Push Terminals
  • Features
    • Smooth indented face appearance
    • Multiple-drive Slot/Phillips/Robertson head screws
    • Tough thermoplastic ultrasonically welded cover and base
    • Self Grounding
  • Certifications
    • EU RoHS Indicator : Yes
  • Specifications
    • Country of Origin : China
    • Current / Amperage Rating : 15 A
    • Width : 1.590 in
    • Performance : Environmental - Operating temperature - -20°C to 60°C;Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
    • Standards - RoHS Compliance Status : CM
    • Amperage Rating : 15 A
    • Application : Residential Receptacles
    • Color : White
    • Environmental Conditions : Indoor Dry Unless Protected By Additional Means
    • NEMA Rating : 5-15R
    • Number of Poles : 2-Pole
    • Number of Wires : 3-Wire Grounding
    • Phase : Single Phase
    • Special Features : Self Grounding
    • Voltage Rating : 125 VAC
    • Wattage : 1875
    • Wire Size : #14 AWG to #12 AWG
    • Voltage Rating Description : 125 VAC
    • Connectivity : Push and Side Wire
    • Display Size : Standard Sized Product
    • Nema Rating : 5-15R
    • Number Of Poles : 2-Pole
    • Number Of Wires : 3-Wire Grounding
    • Description - Invoice : RESI DUP RCPT, 15A 125V, PUSH TERM, WH
    • Freight Class Code : 06168002
    • Harmonization Code : 8536698000
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Replaced Catalog Number : RR15KW
    • Material - Mounting Hardware : Screw Mounting
    • Current Rating : 15 A
    • Material : Thermoplastic
    • Base Unit of Measure : EA
    • BOX SIZE : 2.000x8.000x4.300 (in)
    • Carton - Gross Weight per Pack : 1.200 lb.
    • Carton - Number of Sub Packs : 200
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 883778100031
    • Carton - Total Units : 10 EA
    • Case - Total Units : 200 EA
    • Case Weight : 26.200 lb.
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
    • Pallet Height : 42.500 in
    • Pallet Length : 48.000 in
    • Pallet Weight : 1438.250 lb.
    • Pallet Width : 40.000 in
