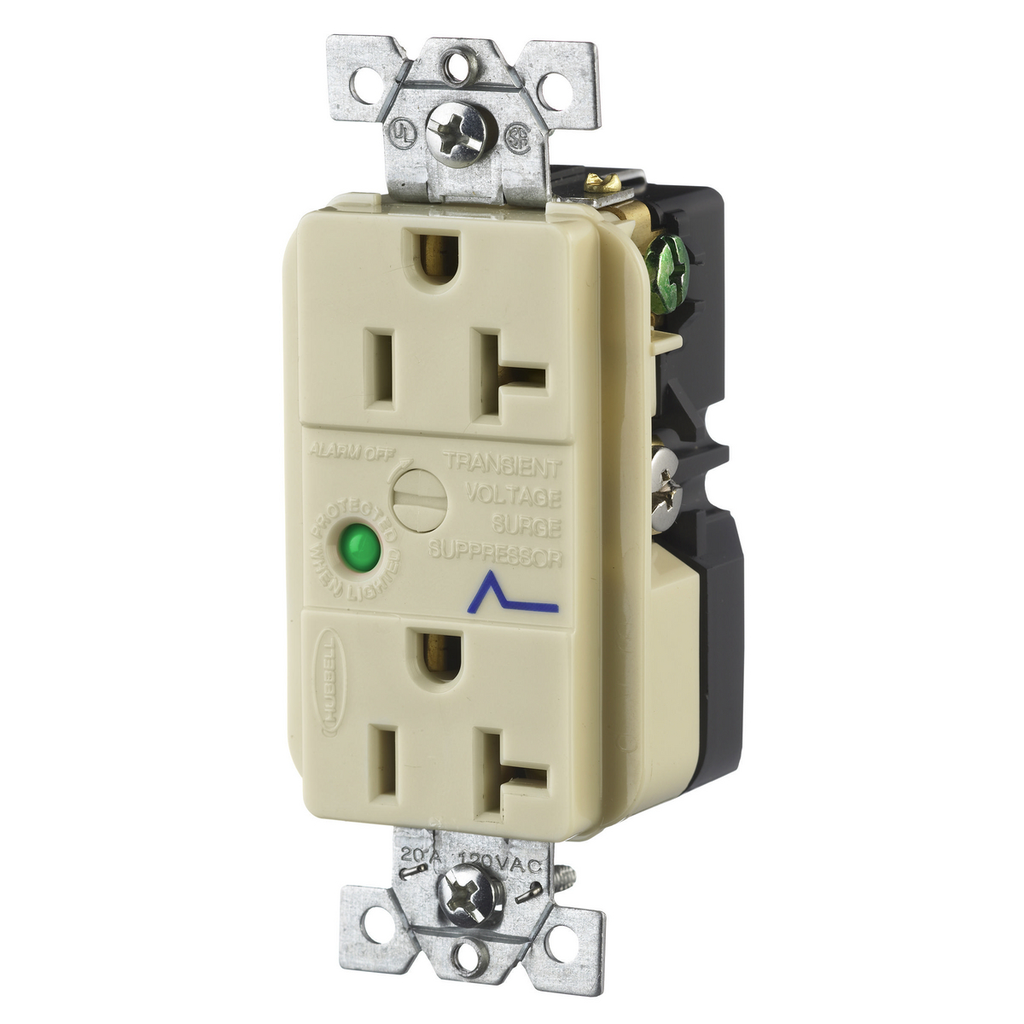

Surge Protective Devices, SPIKESHIELD TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, Ivory

Surge Protective Devices, SPIKESHIELD TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, Ivory

HUBHBL5362ISA HBL5362ISA 783585060279
128.29 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Surge Protective Devices, SPIKESHIELD TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, Ivory-1
  • Amperage: 20 A
  • Country of Origin: China
  • Material: Composite
  • Width: 2.2 in, 2.200 in
Surge Protective Devices, SPIKESHIELD TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, Ivory
QTY
  • Product Description
  • Features
  • Specifications
Surge Protective Devices, SPIKESHIELD TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, Ivory
  • Features
    • Automatic self-grounding staple
    • Distinctive surge symbol provides quick identification
    • Power-on indicator light verifies that power is available
    • Alert alarm sounds when surge protection is no longer functioning
    • Standard Product
  • Specifications
    • Color : Ivory
    • Country of Origin : CN
    • Width : 2.200 in
    • Each - Width : 2.200 in
    • Industry Standard(s) : CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
    • Amperage Rating : 20 A
    • Application : Decorator Duplex with Light and Alarm
    • Environmental Conditions : Indoor Dry Unless Protected By Additional Means
    • Frequency Rating : 60 Hz
    • Operating Temperature : 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
    • Outlet : Straight Blade
    • Phase : Single Phase
    • Response Time : 5
    • Special Features : Standard Product
    • Standard : CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
    • Type : Duplex
    • Voltage Rating : 125 V
    • Connectivity : Terminal Screws
    • Nema Rating : 5-20R
    • Class Code : A44
    • Description - Invoice : DUP SPD RCPT, 20A 125V, 5-20R, IV, ALARM
    • Freight Class Code : 06168002
    • Harmonization Code : 8537109999
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Replaced Catalog Number : 5362IS
    • Sub Class Code : A44A420
    • Material - Mounting Hardware : Mounting Screws
    • Indicator(s) Type : LED and Audible Alarm
    • Material : Composite
    • Base Unit of Measure : EA
    • BOX SIZE : 4.200x11.000x4.500 (in)
    • Carton - Gross Weight per Pack : 3.15 lb.
    • Carton - Number of Sub Packs : 10
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 783585060279
    • Carton - Total Units : 10 EA
    • Case - Total Units : 50 EA
    • Case Weight : 16.250 lb.
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
  • Certifications
    • EU RoHS Indicator : No
