HUBBELL WIRING DEVICES

Straight Blade Devices, Receptacles, Duplex, Load Controlled, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, Gray

2/2 CONTROLLED 20A 125V B/S

HUBBR20C2GRY BR20C2GRY 783585551388
11.23 / EACH
http://schema.org/OutOfStock

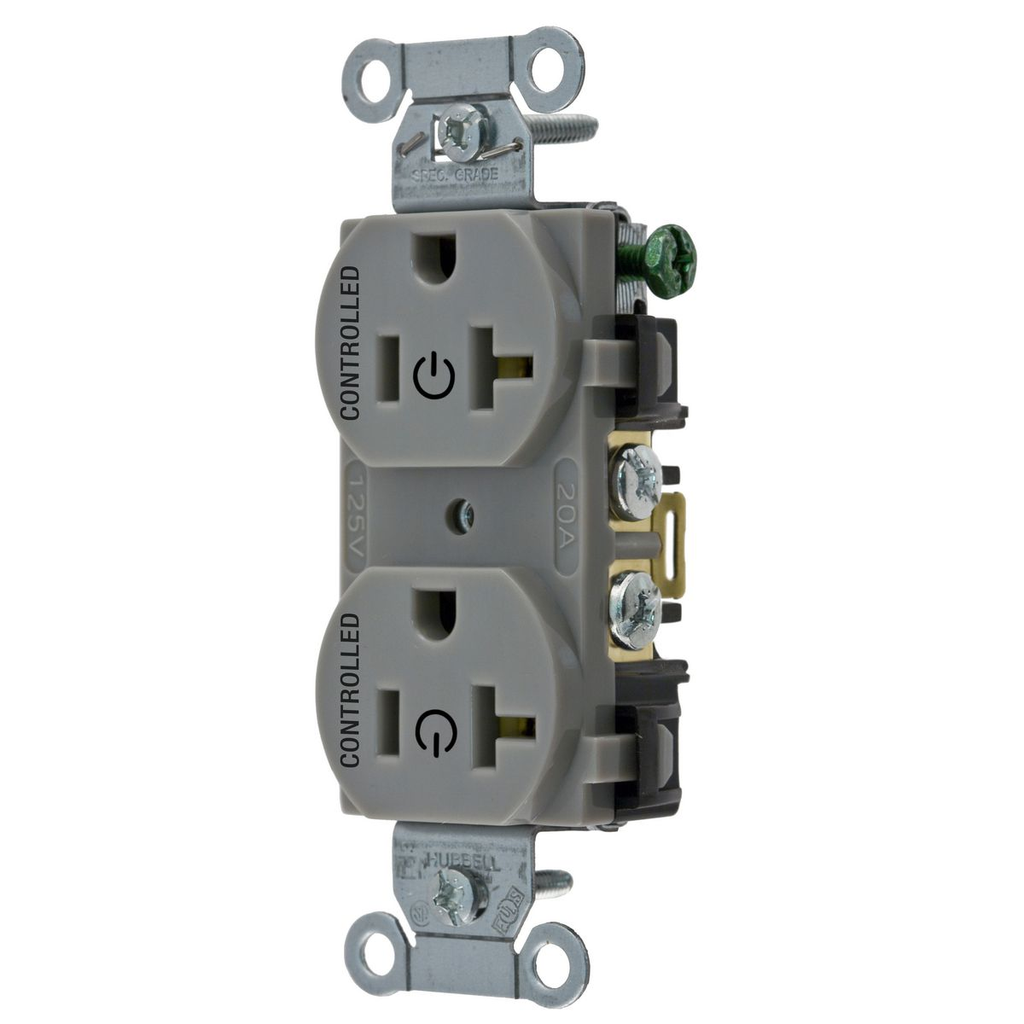

Mayer-DDS-Straight Blade Devices, Receptacles, Duplex, Load Controlled, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, Gray-1
  • Amperage: 20 A
  • Country of Origin: China
  • Height: 3.28 in
  • Horsepower: 1 hp
  • Length: 1.32 in
  • Material: Nylon
  • Number of Poles: 2
  • Number of Wires: 3
  • Weight: 0.2 lb
  • Width: 0.83 in, 1.900 in
  • Wire Size: 14-10 AWG
Straight Blade Devices, Receptacles, Duplex, Load Controlled, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, Gray
QTY
  • Product Description
  • Features
  • Specifications
Straight Blade Devices, Receptacles, Duplex, Load Controlled, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Back and Side Wired, Gray
  • Features
    • Permanently marked with universal power symbol and the word "CONTROLLED" to visually identify receptacles used in automatic energy management systems
    • Markings can be read regardless of mounting orientation
    • Complies with NEC Section 406.3, ASHRAE 90.1, and California Title 24 requirements
    • Complements Hubbell's Load Logic control's or any available energy management system
  • Specifications
    • Country of Origin : CN
    • Dimensions : 1.32 in x 0.83 in x 3.28 in
    • Each - Width : 1.900 in
    • Height : 3.28 in
    • Horsepower - Maximum : 1
    • Industry Standard(s) : CSA Certified 22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
    • Length : 1.32 in
    • Amperage Rating : 20 A
    • Application : Commercial Specification Grade Duplex
    • Color : Gray
    • Dielectric Strength : Withstands 2,000V minimum
    • NEMA Rating : 5-20R
    • Number of Poles : 2-Pole
    • Number of Wires : 3-Wire
    • Size : 1.32 in x 0.83 in x 3.28 in
    • Standard : CSA Certified 22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
    • Type : Two Controlled Faces
    • Voltage Rating : 125 V
    • Wire Size : #14 AWG to #10 AWG
    • Weight : 0.2 lb.
    • Width : 0.83 in
    • Connectivity : Back and Side Wired
    • Nema Rating : 5-20R
    • Number Of Poles : 2-Pole
    • Number Of Wires : 3-Wire
    • Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact
    • Style : Smooth Face
    • Class Code : A04
    • Description - Invoice : 2/2 CONTROLLED 20A 125V, B/S, DUP, GY
    • Freight Class Code : 06168002
    • Harmonization Code : 8536698000
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Sub Class Code : A04A060
    • Material - Mounting Hardware : Screw Mounting
    • Material : Nylon
    • Base Unit of Measure : EA
    • BOX SIZE : 3.700x9.900x4.600 (in)
    • Carton - Gross Weight per Pack : 2.000 lb.
    • Carton - Number of Sub Packs : 10
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 00783585551388
    • Carton - Total Units : 10 EA
    • Case - Total Units : 100 EA
    • Case Weight : 22.600 lb.
    • Pallet Height : 38.800 in
    • Pallet Length : 48.000 in
    • Pallet Weight : 813.600 lb.
    • Pallet Width : 40.000 in
  • Certifications
    • EU RoHS Indicator : Contact Manufacturer
