primary_image

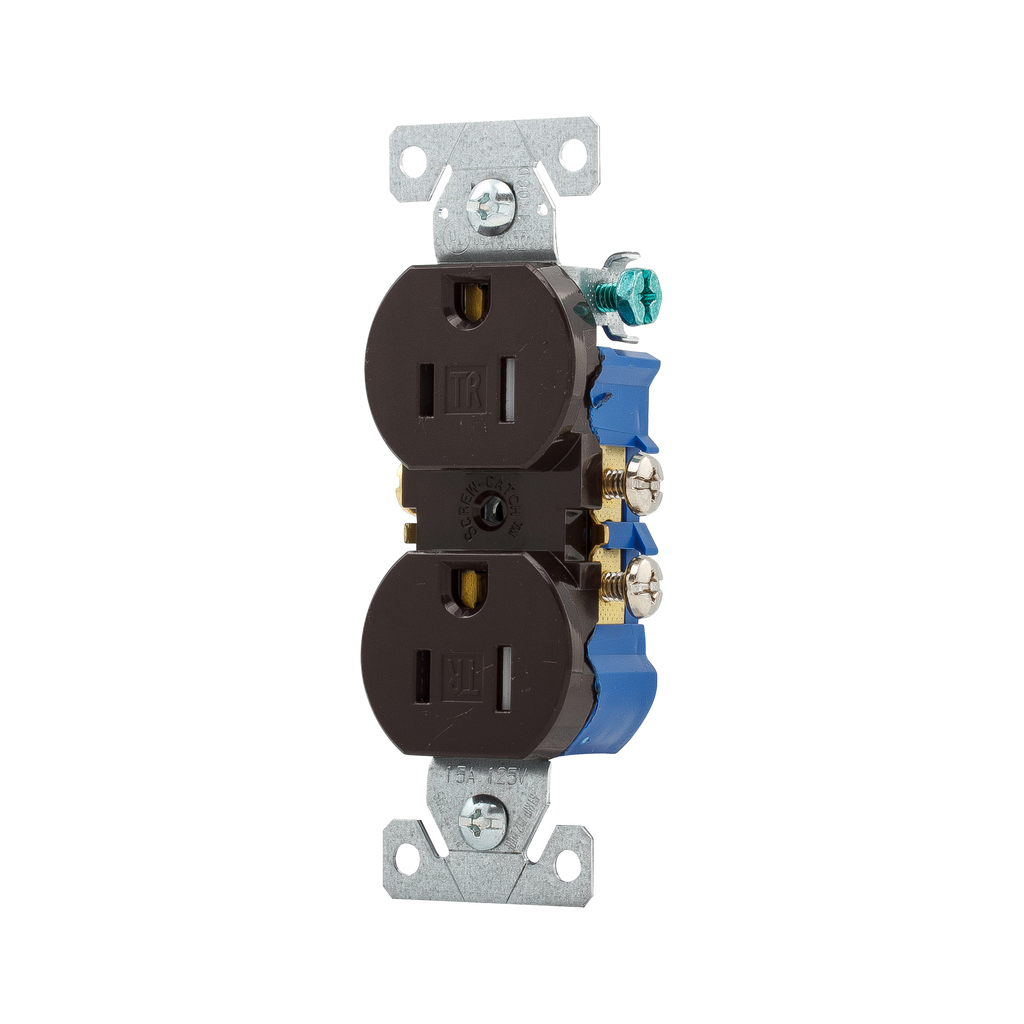

Eaton residential grade duplex rece — Features: Tamper resistant, Allowable Wire Size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum, Color: Brown, Face/Body Material: Impact-resistant thermoplastic face PVC body, Style Type: Standard, NEMA Configuration: 5-15R, Packaging Type: Core pack

RECP TR DUP 15A 125V 2P3W STR

CPDTR270B TR270B 032664666506
1.79 / EA
http://schema.org/OutOfStock
Mayer-DDS-Eaton residential grade duplex rece — Features: Tamper resistant, Allowable Wire Size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum, Color: Brown, Face/Body Material: Impact-resistant thermoplastic face PVC body, Style Type: Standard, NEMA Configuration: 5-15R, Packaging Type: Core pack-1
  • Amperage: 15 A
  • Applications: Commercial/residential
  • Connection Type: Screw
  • Contact Material: Brass
  • Device Type: Receptacle
  • Height: 4 in
  • Length: 1.24 in
  • Material: Thermoplastic
  • Number of Poles: 2
  • Number of Wires: 3
  • Product Series: Straightblade Receptacles
  • Type: Duplex Receptacle
  • Voltage: 125 V
  • Weight: 0.01 lb
  • Width: 0.79 in
  • Wiring Method: Side And Push
Eaton residential grade duplex receptacle, #14-10 AWG, 15A, Commercial, Residential, Flush, 125V, Side and push, Brown, Brass, Impact-resistant thermoplastic face, PVC body, 5-15R, Duplex, Screw, Thermoplastic, Core pack
QTY
  • Product Description
  • Features
  • Specifications
Eaton residential grade duplex receptacle, #14-10 AWG, 15A, Commercial, Residential, Flush, 125V, Side and push, Brown, Brass, Impact-resistant thermoplastic face, PVC body, 5-15R, Duplex, Screw, Thermoplastic, Core pack
  • Certifications
    • cULus Listed
  • Specifications
    • Length : 1.24 in
    • Height : 4 in
    • Width : 0.79 in
    • Weight : 0.01 lbs
    • Nom Product Type : Residential grade
    • Device Type : Receptacle
    • Type : Duplex receptacle
    • Amperage Rating : 15A
    • Voltage Rating : 125V
    • Contact Material : Brass
    • Application : Commercial/residential
    • Device Grade : Standard grade
    • Wiring Method : Side and push
    • Number Of Wires : 3
    • Mounting Method : Flush
    • Number Of Poles : Two-pole
    • Style Type : Standard
    • Material : Thermoplastic
    • Color : Brown
    • Connection Type : Screw
    • Allowable Wire Size : Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
    • NEMA Configuration : 5-15R
    • Torque Rating : 14 lbf-inch
    • Design Type : Straight blade
    • Face/Body Material : Impact-resistant thermoplastic face PVC body
    • Receptacle Type : Duplex
    • Product Series : Straightblade Receptacles
