Appleton™ FSQC 30, 60 and 100 Amp Series Interlocked Receptacles - PN ACP1034CD

APPLETON PLUG

APPACP1034CD ACP1034CD 781381440165
893.21 / Each
http://schema.org/OutOfStock

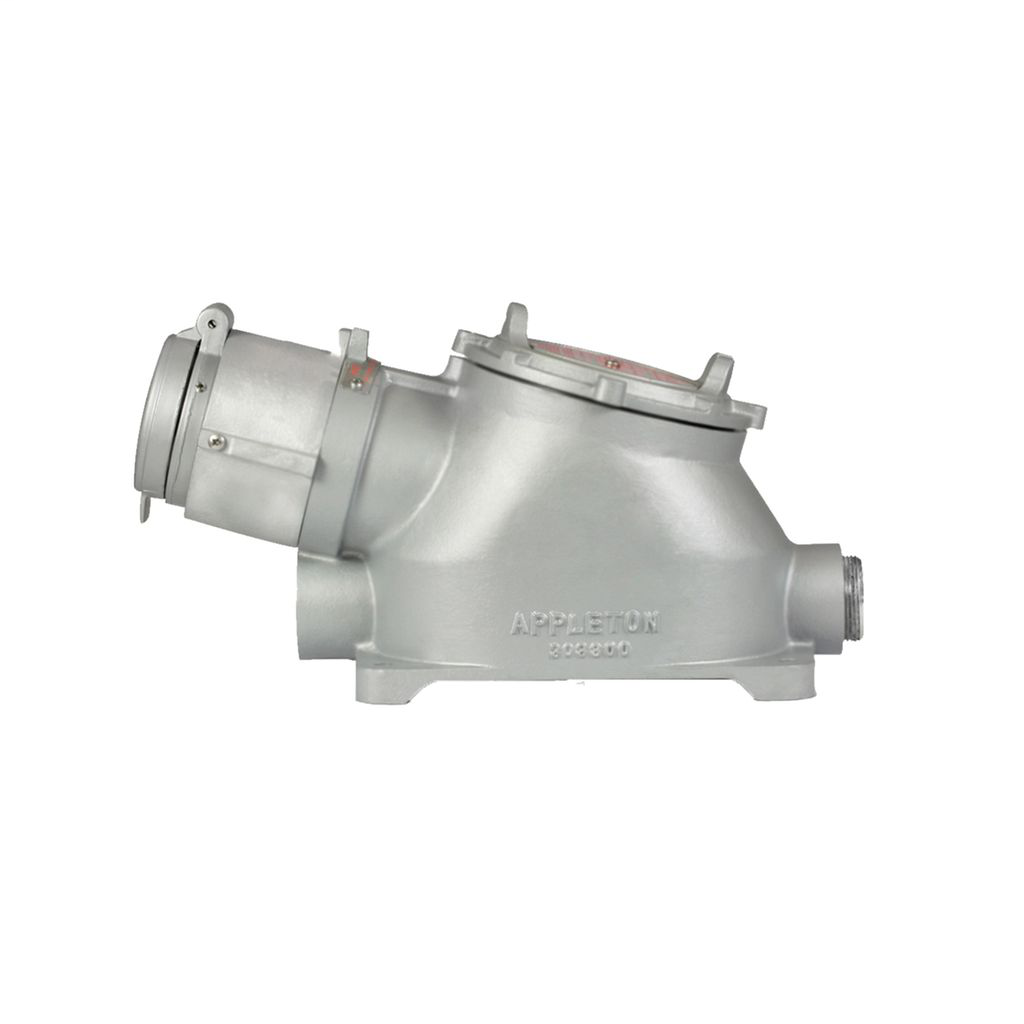

Mayer-DDS-Appleton™ FSQC 30, 60 and 100 Amp Series Interlocked Receptacles - PN ACP1034CD-1
  • Amperage: 100 A, 30 A, 60 A
  • Number of Wires: 3
  • Voltage: 120 V, 240 V, 480 V, 600 V
FSQC 30, 60 and 100 Amp Series Receptacles incorporate an interlocked disconnect switch for added safety in hazardous environments. The explosionproof and dust-ignitionproof FSQC is designed for use with Powertite™ plugs. Simply insert the plug and rotate the receptacle face to the ON position to lock it in place and energize the receptacle. For installations where different line voltages are used, a special polarization option prevents plug insertion into a receptacle wired for a different voltage.
QTY
  • Product Description
  • Features
  • Specifications
FSQC 30, 60 and 100 Amp Series Receptacles incorporate an interlocked disconnect switch for added safety in hazardous environments. The explosionproof and dust-ignitionproof FSQC is designed for use with Powertite™ plugs. Simply insert the plug and rotate the receptacle face to the ON position to lock it in place and energize the receptacle. For installations where different line voltages are used, a special polarization option prevents plug insertion into a receptacle wired for a different voltage.
  • Features
    • Interlocked disconnect switch provides safe connect and disconnect operation at 30, 60 or 100 Amp, 600 Vac maximum, three pole, non-fused motor circuit switch
    • To operate, insert the plug and turn receptacle collar to the ON position. To remove the plug, turn the plug to the OFF position and pull the plug out
    • Style 2 (shell and extra pole) grounding
    • Spring door keeps dust out of receptacle when plug is not in use. Screw cover also supplied free of charge for NEMA 4 applications.
    • Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
    • Insulators provide superior dielectric and mechanical strength and lowest arc tracking
    • Contacts have beryllium copper wire springs
    • Tapped NPT conduit openings at top and bottom: 30 Amp 3/4#8221;, 60 Amp 1-1/2#8221;, 100 Amp 2#8221;
    • Large housing provides ample wiring room
    • Powertite™ Series plug fits hazardous location FSQC receptacles
  • Specifications
    • Hazardous Area Classification : Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III; NEMA 3, 3R, 4, 4X, 7CD, 9FG
    • Amperage : 30, 60 or 100
    • Voltage : 120 Vac, 240 Vac, 480 Vac or 600 Vac
    • Number of Poles : 4
    • Number of Wires : 3
    • Plug Cable Diameter : 30 Amp: 0.500 to 1.125#8221;, 60 Amp: 0.500 to 1.375#8221;, 100 Amp: 0.875#8221; to 1.906#8221;
    • Wire Range : 30 Amp: #10-#8, 60 Amp: #6-#4, 100 Amp: #2-1/0
    • Mounting Box Entries : Feed-Thru
    • Materials and Finishes : Receptacles, mounting box, covers and plug housings are copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Insulating blocks are fiber glass reinforced polyester.
