PASS & SEYMOUR

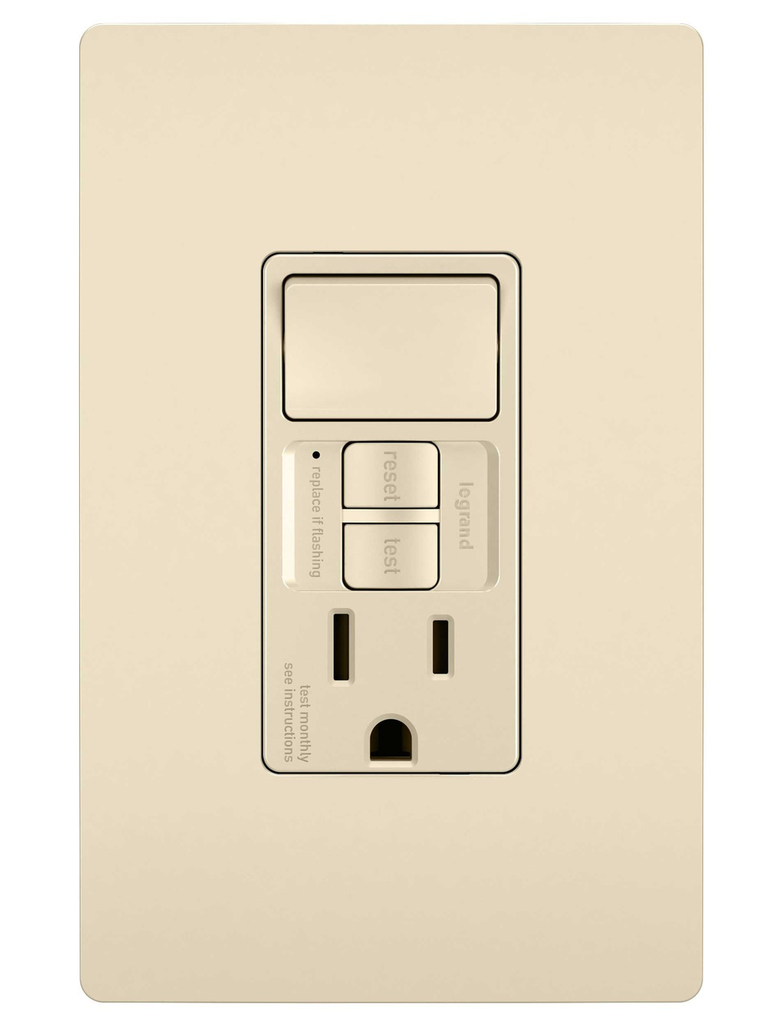

radiant® Combination Single Pole Switch and Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock® Protection, Light Almond

RADIANT 15A SLFTST GFCI/SWITCH

PSS1597SWTTRLACCD4 1597SWTTRLACCD4 785007135732
0.00 / EA
http://schema.org/OutOfStock
  • Amperage: 15 A
  • Applications: Commercial, Multi-Dwelling Unit, Residential
  • Country of Origin: China
  • Depth: 1.03 in
  • Finish: Satin
  • Frequency: 60 Hz
  • Height: 4.2 in
  • Indoor/Outdoor: Indoor
  • Mounting Type: Box
  • Number of Gangs: 1
  • Number of Poles: 1, 2
  • Number of Receptacles: 1.0
  • Number of Wires: 3
  • Outlet Type: GFCI, Tamper-Resistant
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.73 in
A step up from ordinary, this combination device features a compact switch with a tamper-resistant GFCI outlet. Ideal for use with vents in kitchens and baths, the code-compliant outlet self-tests automatically every three seconds to ensure reliable protection ground fault occurrences, and makes it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. Part of the radiant® Collection, it also features sleek, clean lines for a sophisticated look.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
QTY
  • Product Description
  • Features
  • Specifications
A step up from ordinary, this combination device features a compact switch with a tamper-resistant GFCI outlet. Ideal for use with vents in kitchens and baths, the code-compliant outlet self-tests automatically every three seconds to ensure reliable protection ground fault occurrences, and makes it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. Part of the radiant® Collection, it also features sleek, clean lines for a sophisticated look.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
  • Features
    • Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI outlets make it easier to fix trips with a convenient reset button on the outlet.
    • Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.
    • Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
    • Protects children with a patented shutter system that prevents improper insertion of foreign objects, complete with ""invisi-shutters"" for an invisible effect.
    • Installs easily in as little as 10 minutes.
    • Features durable, high-impact resistant thermoplastic construction.
    • More color options available to fit any style.
    • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • Certifications
    • cULus Listed
    • UL Listed
  • Specifications
    • Depth : 1.03 in
    • Height : 4.2 in
    • Amperage : 15.0 A
    • Width : 1.73 in
    • Voltage : 125.0 V
    • Country of Origin : China
    • Outlet Type : GFCI
    • Mounting Type : Box
    • Features : Self-Test
    • Number of Gangs : 1.0
    • Number of Wires : 3.0
    • Features : Combination
    • Indoor/Outdoor : Indoor
    • Frequency Rating : 60 Hz
    • Is Tamper-Resistant : Yes
    • Wall Plate Included : Yes
    • Number of Receptacles : 1.0
    • Number of Poles : Double Pole
    • Number of Poles : Single Pole
    • Outlet Type : Tamper-Resistant
    • Application Sector : Commercial
    • NEMA Configuration Code : 5-15R
    • Application Sector : Residential
    • Connection Location : Back and Side
    • Jigsaw Channel Availability : Retail
    • Special Features : Single Pole Switch
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Application Sector : Multi-Dwelling Unit
    • Wire Connection Type : Internal Pressure Plates
    • Environmental Conditions : 95% Humidity, UL 94 V2
    • Color : Light Almond
    • Finish : Satin
    • Product Line : Pass & Seymour
