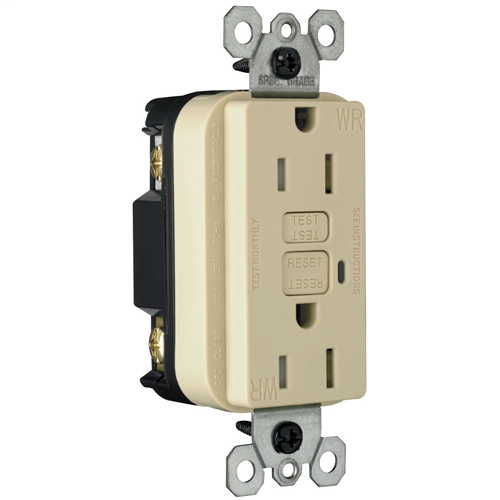

TradeMaster/Spec Grade Weather-Resistant 15A Duplex GFCI, Ivory

GFCI TR WR 15A125V20A FD THRU

PSS1595TRWRI 1595-TRWRI 785007240900
19.73 / EA
http://schema.org/OutOfStock
Mayer-DDS-TradeMaster/Spec Grade Weather-Resistant 15A Duplex GFCI, Ivory-1
  • Amperage: 15 A
  • Depth: 1.13 in
  • Grade: Specification
  • Height: 4.2 in
  • Length: 4.20 in
  • NEMA: 5-15R
  • Product Series: TradeMaster
  • Style: Decorator
  • Voltage: 125 V
  • Width: 1.72 in
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. With high-impact-resistant, thermoplastic construction, our spec-grade GFCI are the most durable GFCI available.
QTY
  • Product Description
  • Features
  • Specifications
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. With high-impact-resistant, thermoplastic construction, our spec-grade GFCI are the most durable GFCI available.
  • Features & Benefits
    • Tamper-Resistant: Meets National Electrical Code® Tamper-Resistant requirements
    • Protects children: patented shutter system helps prevent improper insertion of foreign objects
    • Trip indicator light (red LED)
    • For covering patents, see www.legrand.us/patents.
    • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected
    • FSUL Listed (Federal Specification WC596)
    • Weather-Resistant: Meets National Electrical Code® Weather-Resistant requirements
    • Exceeds UL943 voltage surge requirements;survives 100x the required UL 3kA/6kV voltage surge test cycles.
    • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly
  • Available Options
    • TradeMaster®/Spec Grade Weather-Resistant 15A Duplex GFCI, Gray
    • TradeMaster®/Spec Grade Weather-Resistant 15A Duplex GFCI, Brown
    • TradeMaster®/Spec Grade Weather-Resistant 15A Duplex GFCI, White
    • TradeMaster®/Spec Grade Weather-Resistant 15A Duplex GFCI, Light Almond
    • TradeMaster®/Spec Grade Weather-Resistant 15A Duplex GFCI, Ivory
  • Specifications
    • Width (U S) : 1.72"
    • UL Listed : Yes
    • CUL Listing No : E42190
    • Depth (U S) : 1.13"
    • Style : Decorator
    • Available Colors : White, ivory, light almond, brown, gray
    • CSA Standard : C22.2 No. 42, 144
    • UL Listing No : UL498
    • Product Series : TradeMaster
    • Color : Ivory
    • Buy American Act Status : No
    • Volts A C : 125
    • Country of Origin : CHINA
    • Length (U S) : 4.20"
    • Special Features : Weather Resistant
    • Amps : 15A
    • NEMA Configuration Number : 5-15R
    • Grade Type : Specification
    • cULus : Yes
    • UL Standard : Yes
    • UN SPS C : 39121614
    • Height (U S) : 4.2"
    • cUL Standard : Yes
    • Volts : 125V
    • Federal Spec : Yes
    • Fed Spec Number : WC596
    • NEMA Rating : Yes
