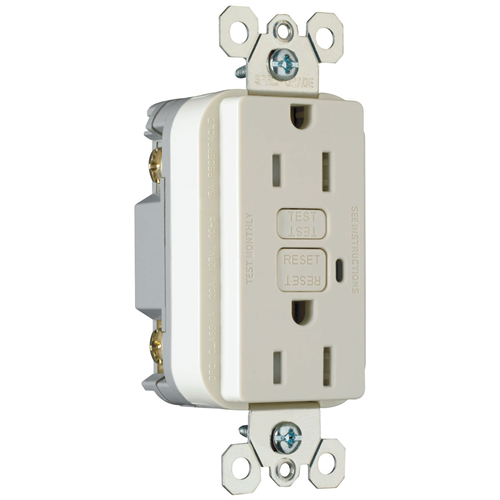

TradeMaster/Spec Grade Tamper-Resistant 15A Duplex GFCI, Light Almond

GFCI TR 15A125V20A FD THRU LA

PSS1595TRLA 1595-TRLA 785007243642
26.25 / EA
http://schema.org/OutOfStock
Mayer-DDS-TradeMaster/Spec Grade Tamper-Resistant 15A Duplex GFCI, Light Almond-1
  • Amperage: 15 A
  • Depth: 1.13 in
  • Grade: Specification
  • Height: 4.2 in
  • Length: 4.20 in
  • NEMA: 5-15R
  • Product Series: TradeMaster
  • Style: Decorator
  • Voltage: 125 V
  • Width: 1.72 in
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Our spec-grade GFCI are the most durable GFCI available. Also features patented SafeLock™ protection—if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected.
QTY
  • Product Description
  • Features
  • Specifications
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Our spec-grade GFCI are the most durable GFCI available. Also features patented SafeLock™ protection—if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected.
  • Features & Benefits
    • For covering patents, see www.legrand.us/patents.
    • Meets 2008 National Electrical Code® Tamper-Resistant requirements.
    • Extra-long strap.
    • Side or internal screw-pressure-plate back wire with #10 – #14 AWG solid or stranded copper wire.
    • Class A rated GFCI.
    • Button colors match the device face.
    • 1/4" thinner than competitors' GFCIs; leaves more room for wires in the box.
    • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
    • Mounting screws are shipped captive in the device and wall plate for easier installation.
    • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
    • Trip indicator light (red LED).
    • Dual-direction test and reset buttons.
    • 10kA short circuit rating.
    • FSUL Listed (Federal Specification WC596).
    • High-impact-resistant thermoplastic construction.
    • Ground screw has a back wire clamp for easy installation.
    • Supplied with matching TP26 nylon wall plate.
    • Two back wire holes per terminal.
    • Tri-drive screws.
    • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
    • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Available Options
    • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Black
    • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Ivory
    • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Brown
    • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, White
    • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Light Almond
    • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Gray
  • Specifications
    • Fed Spec Number : WC596
    • UL Standard : Yes
    • Style : Decorator
    • Volts A C : 125
    • Width (U S) : 1.72"
    • NEMA Rating : Yes
    • Length (U S) : 4.20"
    • UL Listing No : UL498
    • Country of Origin : CHINA
    • CSA Standard : C22.2 No. 42, 144
    • UN SPS C : 39121614
    • NEMA Configuration Number : 5-15R
    • Height (U S) : 4.2"
    • Volts : 125V
    • Depth (U S) : 1.13"
    • Available Colors : White, ivory, light almond, brown, black, gray, antique brass, dark bronze, nickel, titanium
    • Amps : 15A
    • Federal Spec : Yes
    • Buy American Act Status : No
    • cULus : Yes
    • Color : Light Almond
    • Grade Type : Specification
    • Special Features : Tamper Resistant
    • cUL Standard : Yes
    • Product Series : TradeMaster
