PASS & SEYMOUR

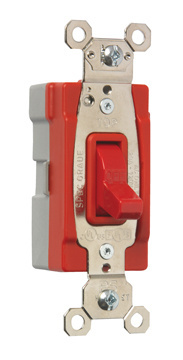

PlugTail® Single Pole 20A Toggle Switch, Red

PT 20A 120/277V SP SW RED

PSSPT20AC1RED PT20AC1-RED 785007108620
12.71 / EACH
http://schema.org/OutOfStock
Mayer-DDS-PlugTail® Single Pole 20A Toggle Switch, Red-1
  • Amperage: 20 A
  • Applications: Commercial, Industrial
  • Country of Origin: Mexico
  • Depth: 1.073 in
  • Finish: Matte
  • Height: 2.375 in
  • Indoor/Outdoor: Indoor
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 1
  • Number of Switches: 1
  • Switch Type: Toggle
  • Type: Switch
  • Voltage: 120/277 V
  • Warranty Length: 1 yr
  • Width: 1.32 in
PlugTail® Single-Pole 20A Toggle Switch
QTY
  • Product Description
  • Features
  • Specifications
PlugTail® Single-Pole 20A Toggle Switch
  • Features
    • One-piece toggle molded from chemical-, impact-, and heat-resistant thermoplastic.
    • Impact- and chemical- resistant cover.
    • Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.
    • One-piece nickel-plated mounting strap for superior corrosion resistance.
    • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
    • Auto-ground clip assures positive ground.
    • Shallow design for easier installation.
    • Heavy-duty bumpers for quiet, smooth operation.
    • No exposed terminals create a finger-safe application before, during, and after installation.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 1.073 in
    • Height : 2.375 in
    • Type : Switch
    • Width : 1.32 in
    • Standard : cULus
    • Country of Origin : Mexico
    • Amperage : 20.0 A
    • Standard : WS8996
    • Standard : FEDSPEC
    • Features : PlugTail
    • Number of Gangs : 1
    • Voltage : 120/277 V
    • Color : Red
    • Finish : Matte
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
    • Switch Type : Toggle
    • Indoor/Outdoor : Indoor
    • Mounting Type : Wall Box
    • Number of Switches : 1.0
    • Wall Plate Included : No
    • Throw Type : Single Throw
    • Requires Neutral Wire : No
    • Number of Poles : Single Pole
    • Application Sector : Commercial
    • Application Sector : Industrial
    • Connection Location : Back Only
    • Wire Connection Type : PlugTail
    • Warranty Type : 1-Year Limited Warranty
    • Terminal Accommodation : #14 AWG - #12 AWG
    • Special Features : Built in connector, glass reinforced nylon back body, shallow design
