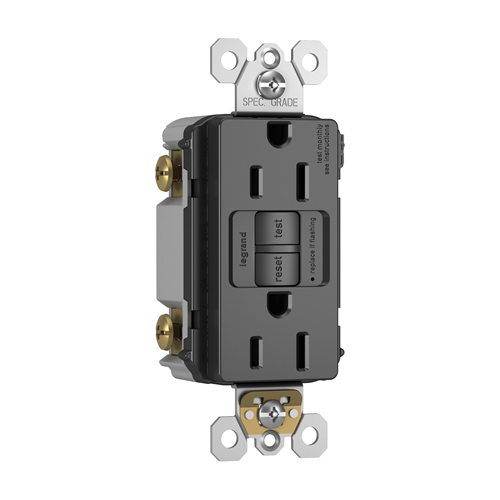

Legrand 1597-TRBK 15A 125V Self-Test Tamper-Resistant GFCI, Black

GFCI ST TAMPER 15A 125V BLACK

PSS1597TRBK 1597-TRBK 785007048636
26.25 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Legrand 1597-TRBK 15A 125V Self-Test Tamper-Resistant GFCI, Black-1
  • Amperage: 15 A
  • NEMA: 5-15R
  • Voltage: 125 V
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
QTY
  • Product Description
  • Features
  • Specifications
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
  • Features & Benefits
    • Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
    • Extra-long strap.
    • 10kA short circuit rating.
    • Class A rated GFCI.
    • Dual-direction test and reset buttons.
    • Meets 2015 UL requirements.
    • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
    • Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.
    • Trip Time: 0.025 sec., nominal per UL Standard
    • Auto-Ground clip assures a positive ground to metal box.
    • 20 Amp feed-thru capacity
    • Button colors match the device face.
    • Mounting screws are shipped captive in the device and wall plate for easier installation.
    • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
    • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
    • Supply Voltage Range: 102-132 VAC
    • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
    • Feed-thru wiring configuration allows GFCI to protect downstream receptacles.
    • Ground screw has back-wire clamp for easy installation.
    • Supply Voltage: 125VAC, 60 Hz
    • Meets National Electrical Code® Tamper-Resistant requirements.
    • High-impact-resistant thermoplastic construction.
    • Two back-wire holes per terminal.
    • Trip Threshold: 5 +/- 1 m
    • FSUL Listed (Federal Specification WC596).

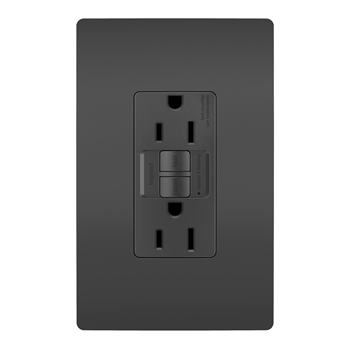

    • Supplied with matching TP wall plate (except NI, AB, and DB models).
    • Trip indicator light (red LED).
  • Available Options
    • Trademaster®/Spec-Grade Tamper-Resistant 15A Self-Test Duplex GFCI, Brown
    • Trademaster®/Spec-Grade Tamper-Resistant 15A Self-Test Duplex GFCI, Antique Brass
    • Trademaster®/Spec-Grade Tamper-Resistant 15A Self-Test Duplex GFCI, Black
    • Trademaster®/Spec-Grade Tamper-Resistant 15A Self-Test Duplex GFCI, Light Almond
    • Trademaster®/Spec-Grade Tamper-Resistant 15A Self-Test Duplex GFCI, Nickel
    • Trademaster®/Spec-Grade Tamper-Resistant 15A Self-Test Duplex GFCI, White
    • Trademaster®/Spec-Grade Tamper-Resistant 15A Self-Test Duplex GFCI, Dark Bronze
    • Trademaster®/Spec-Grade Tamper-Resistant 15A Self-Test Duplex GFCI, Ivory
  • Specifications
    • Volts : 125
    • Federal Spec : Yes
    • cULus : Yes
    • Fed Spec Number : WC596
    • Country of Origin : CHINA
    • UL Listed : Yes
    • CSA Listed : No
    • UL Standard : UL498
    • NEMA Configuration Number : 5-15R
    • Amps : 15A
    • Color : Black
