PASS & SEYMOUR

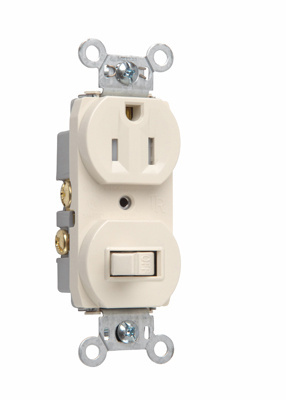

15A 120V/125V Combination Single-Pole Toggle Switch and Tamper-Resistant Single Receptacle, Light Almond

RECEP SW COMBO 1P 15A 120V LA

PSS691TRLA 691-TRLA 785007108651
23.89 / EACH
http://schema.org/OutOfStock
Mayer-DDS-15A 120V/125V Combination Single-Pole Toggle Switch and Tamper-Resistant Single Receptacle, Light Almond-1
  • Amperage: 15 A
  • Applications: Hospitality, Residential
  • Country of Origin: Mexico
  • Depth: 1.15 in
  • Finish: Satin
  • Height: 4.06 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 1
  • Number of Switches: 1
  • Operating Cycles: 30000
  • Switch Type: Toggle
  • Type: Combination, Outlet, Switch, Tamper-Resistant
  • Voltage: 120 V, 125 V
  • Warranty Length: 1 yr
  • Width: 1.32 in
Our standard Pass and Seymour combination switches allow you to add lights to any room in your home without having to add or replace wall boxes. This tamper-resistant version features a dual mechanical shutter system to help prevent the insertion of foreign objects, making it much safer and more convenient than plastic outlet caps. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
QTY
  • Features
  • Specifications
  • Features
    • Easily accessible break-off separate or common feed.
    • One-piece heat-treated triple-wipe brass power contacts.
    • Two devices fit into the space of one.
    • Grounding combination devices meet NEC Requirements.
    • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
    • For covering patents, see www.legrand.us/patents.
  • Certifications
    • cULus Listed
  • Specifications
    • Country of Origin : Mexico
    • Depth : 1.15 in
    • Height : 4.06 in
    • Width : 1.32 in
    • Color : Light Almond
    • Finish : Satin
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
    • Amperage : 15.0 A
    • Number of Poles : Single Pole
    • Standard : UL20; UL498
    • Contact Configuration : N-O
    • Environmental Conditions : Flammability: UL94 V2
    • Special Features : Dual mechanical shutter system to help prevent insertion of foreign objects. Easily accessible break-off for separate or common feed. Side wire #12 and #14 AWG. Two devices fit into the space of one. Grounding combination devices meet NEC Requirements.
    • Operating Cycles : 30000.0
    • Features : Combination
    • Application Sector : Hospitality; Residential
    • Number of Switches : 1.0
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Indoor/Outdoor : Indoor
    • Connection Location : Side Only
    • Load Rating : 15 A @ 120/125 VAC
    • Switch Type : Toggle
    • Mounting Type : Wall Box
    • Throw Type : Single Throw
    • Number of Gangs : 1
    • Type : Combination; Outlet; Switch; Tamper-Resistant
    • Terminal Accommodation : #14 AWG - #12 AWG
    • Wall Plate Included : No
    • Requires Neutral Wire : Yes
    • Voltage : 125 VAC; 120 VAC
    • Load Type : Fluorescent; Incandescent; CFL; Universal; Xenon; Halogen; LED
