HUBBELL WIRING DEVICES

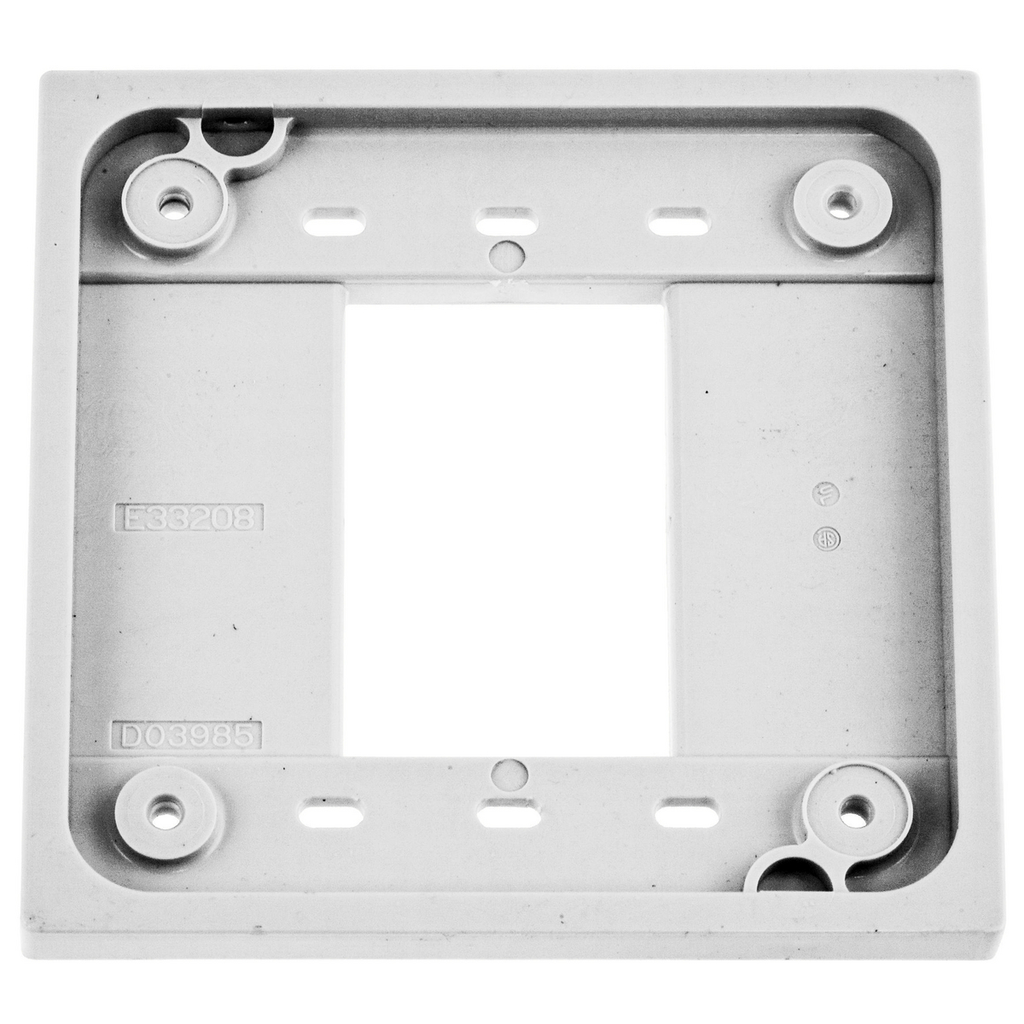

Straight Blade Devices, Accessories, 4-Plex Adapter Plate for 1 and 2 Gang device boxes, White, Single Pack

ADAPTER PLATE-WHITE

HUBHBL4APW HBL4APW 783585014456
14.75 / EA
http://schema.org/OutOfStock
Mayer-DDS-Straight Blade Devices, Accessories, 4-Plex Adapter Plate for 1 and 2 Gang device boxes, White, Single Pack-1
  • Height: 0.58 in
  • Length: 4.78 in
  • Material: Poly Carbonate
  • Weight: 0.15 lb
  • Width: 4.700 in, 4.78 in
Straight Blade Devices, Accessories, 4-Plex Adapter Plate for 1 and 2 Gang device boxes, White, Single Pack
QTY
  • Product Description
  • Features
  • Specifications
Straight Blade Devices, Accessories, 4-Plex Adapter Plate for 1 and 2 Gang device boxes, White, Single Pack
  • Features
    • Mounts directly to 1 and 2 gang or 4-inch square boxes
    • Adapter Plate
  • Specifications
    • Country of Origin : PR
    • Dimensions : 4.78 in x 4.78 in x 0.58 in
    • Each - Width : 4.700 in
    • Height : 0.58 in
    • Industry Standard(s) : Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186
    • Length : 4.78 in
    • Application : 4-Plex Hospital Grade
    • Color : White
    • Dielectric Strength : Withstands 2,000V minimum
    • Environmental Conditions : Indoor Dry Unless Protected By Additional Means
    • Size : 4.78 in x 4.78 in x 0.58 in
    • Special Features : Adapter Plate
    • Standard : Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186
    • Type : Adapter Plate
    • Width : 4.78 in
    • Operating Temperature : Maximum continuous 75°C and minimum -40°C without Impact
    • Weight : 0.15 lb.
    • Class Code : A04
    • Description - Invoice : ADAPTER PLATE, 4-PLEX, WH
    • Freight Class Code : 06168002
    • Harmonization Code : 3925900000
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Replaced Catalog Number : 4APW
    • Sub Class Code : A04A060
    • Material : Polycarbonate
    • Series : 4-Outlet Receptacle
    • Base Unit of Measure : EA
    • BOX SIZE : 5.200x6.000x6.300 (in)
    • Carton - Gross Weight per Pack : 5.3 lb.
    • Carton - Number of Sub Packs : 5
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 783585014456
    • Carton - Total Units : 5 EA
    • Case - Total Units : 30 EA
    • Case Weight : 7.100 lb.
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
    • Pallet Height : 42.000 in
    • Pallet Length : 48.000 in
    • Pallet Weight : 340.800 lb.
    • Pallet Width : 40.000 in
  • Certifications
    • EU RoHS Indicator : Yes
