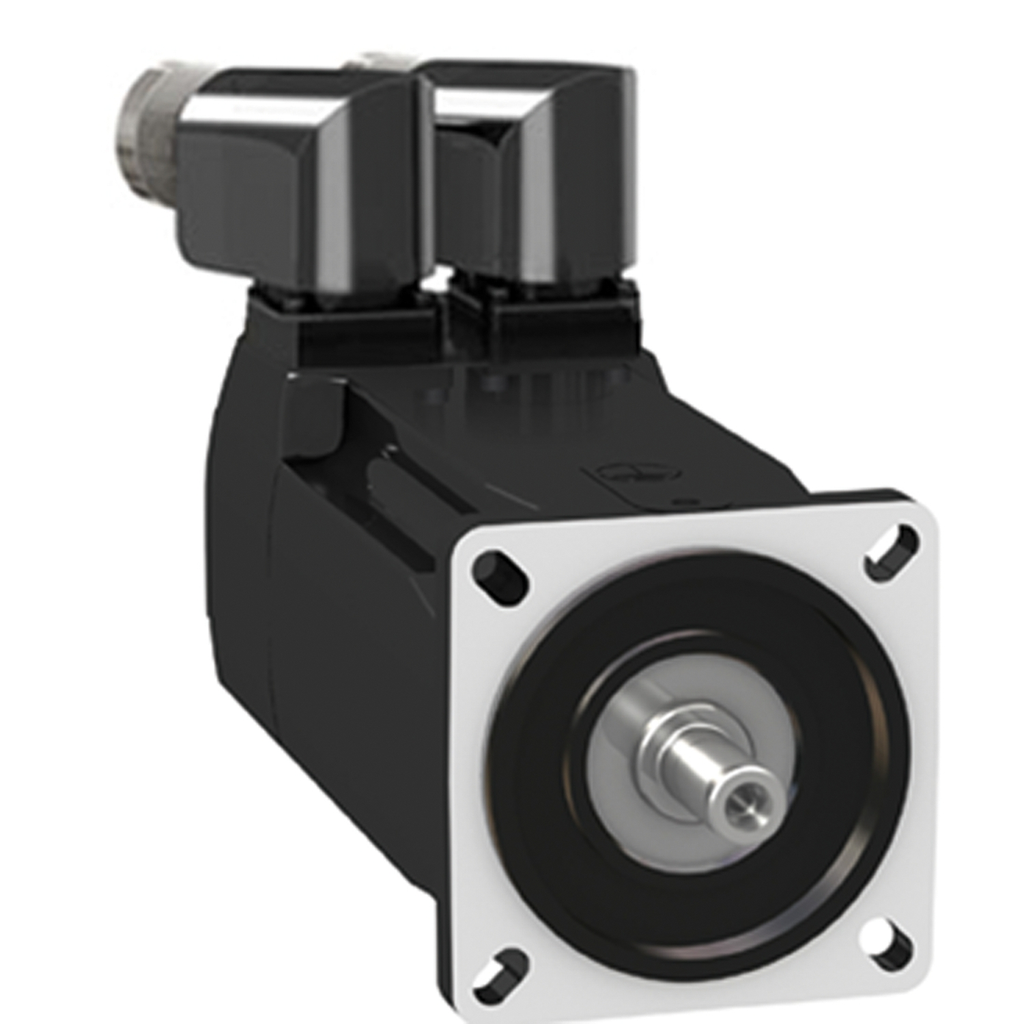

This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 8000RPM, a keyed shaft end, with a holding brake. It is equipped with a multi-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 1.78A, a continuous power of 1.05W, and a continuous stall torque of 1.2Nm. Shaft end is IP65 rated, and IP67 with an IP67kit. The motor flange size is 70mm, fixed by 4x 5.5mm holes. The circle diameter of the mounting holes is 82mm. It weighs 1.6kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32AU60N4, LXM32SU60N4, LXM32MU60N4, LXM32CU60N4, LXM32AD12N4, LXM32SD12N4, LXM32MD12N4, and LXM32CD12N4 servo drives. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Circle Diameter Of The Mounting Holes : 82 mm
• Maximum Permanent Current : 5.97 A
• Continuous Power : 1.05 W
• Temperature Magnet Hot : 100 °C
• Stator Electrical Time Constant : 2.8 ms 20 °C
• Holding Torque : 3 N.m holding brake
• Maximum Radial Force Fr : 660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm
• Number Of Motor Stacks : 1
• Rotor Inertia : 0.7 kg.cm²
• Number Of Motor Poles : 5.0
• Back Emf Constant : 50.72 V/krpm 120 °C
• Maximum Axial Force Fa : 0.2 x Fr
• Centring Collar Depth : 2.5 mm
• Second Shaft : without second shaft end
• Shaft Length : 23 mm
• Brake Pull-In Power : 7 W
• Phase : three phase
• Length : 161 mm
• Maximum Current Irms : 5.97 A LXM32.U60N4 || 6 A LXM32.D12N4
• Net Weight : 2.6 kg
• Sizing Reference : BMH0701P
• Centring Collar Diameter : 60 mm
• Stator Inductance : 10.35 mH 20 °C
• Motor Flange Size : 70 mm
• [Us] Rated Supply Voltage : 480 V
• Number Of Mounting Holes : 4
• Shaft Diameter : 11 mm
• Key Width : 18 mm
• Mounting Holes Diameter : 5.5 mm
• Type Of Cooling : natural convection
• Accuracy Error [Angular] : 1.4 °
• Feedback Type : multiturn SinCos Hiperface
• Stator Resistance : 8.3 Ohm 20 °C
• Range Compatibility : Lexium 32
• Continuous Stall Current : 1.78 A
• Temperature Magnet Rt : 20 °C
• Network Number Of Phases : 3
• Torque Constant : 0.79 N.m/A 120 °C
• Temperature Copper Hot : 135 °C
• Specifications
• Country of Origin : Germany
• Length : 161 mm
• Width : 18 mm
• Weight : 2.6 kg
• Maximum Mechanical Speed : 8000 rpm
• Mounting Support : international standard flange
• Holding Brake : with
• Speed Feedback Resolution : 131072 points/turn x 4096 turns
• Product Or Component Type : servo motor
• Nominal Output Power : 350 W LXM32.U60N4 1.5 A, 400 V, three phase || 350 W LXM32.U60N4 1.5 A, 480 V, three phase || 700 W LXM32.D12N4 3 A, 400 V, three phase || 700 W LXM32.D12N4 3 A, 480 V, three phase
• Peak Stall Torque : 4.2 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 4.2 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 4.2 N.m LXM32.D12N4 3 A, 400 V, three phase || 4.2 N.m LXM32.D12N4 3 A, 480 V, three phase
• Product Compatibility : LXM32.U60N4 400...480 V three phase || LXM32.D12N4 400...480 V three phase
• Ip Degree Of Protection : IP65 standard || IP67 with IP67 kit
• Shaft End : keyed
• Nominal Speed : 3000 rpm LXM32.U60N4 1.5 A, 400 V, three phase || 3000 rpm LXM32.U60N4 1.5 A, 480 V, three phase || 5000 rpm LXM32.D12N4 3 A, 400 V, three phase || 5000 rpm LXM32.D12N4 3 A, 480 V, three phase
• Electrical Connection : rotatable right-angled connectors
• Nominal Torque : 1.1 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 1.1 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 1.3 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.3 N.m LXM32.D12N4 3 A, 480 V, three phase
• Device Short Name : BMH
• Continuous Stall Torque : 1.2 N.m LXM32.U60N4 1.5 A, 400 V, three phase || 1.2 N.m LXM32.U60N4 1.5 A, 480 V, three phase || 1.4 N.m LXM32.D12N4 3 A, 400 V, three phase || 1.4 N.m LXM32.D12N4 3 A, 480 V, three phase
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP111002EN
• Packaging Without Single Use Plastic : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Scip Number : a7df881f-135f-4256-b8c2-ea55d4c9a151
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : N/A
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 763.9681625741
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 19.3632934307
• Carbon Footprint Of The Distribution Phase [A4] : 0.3 kg CO2 eq.
• Pvc Free : Yes
• Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 784 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.2184063066
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 783.9161819259
• Contractual warranty
• Warranty : 18 months
