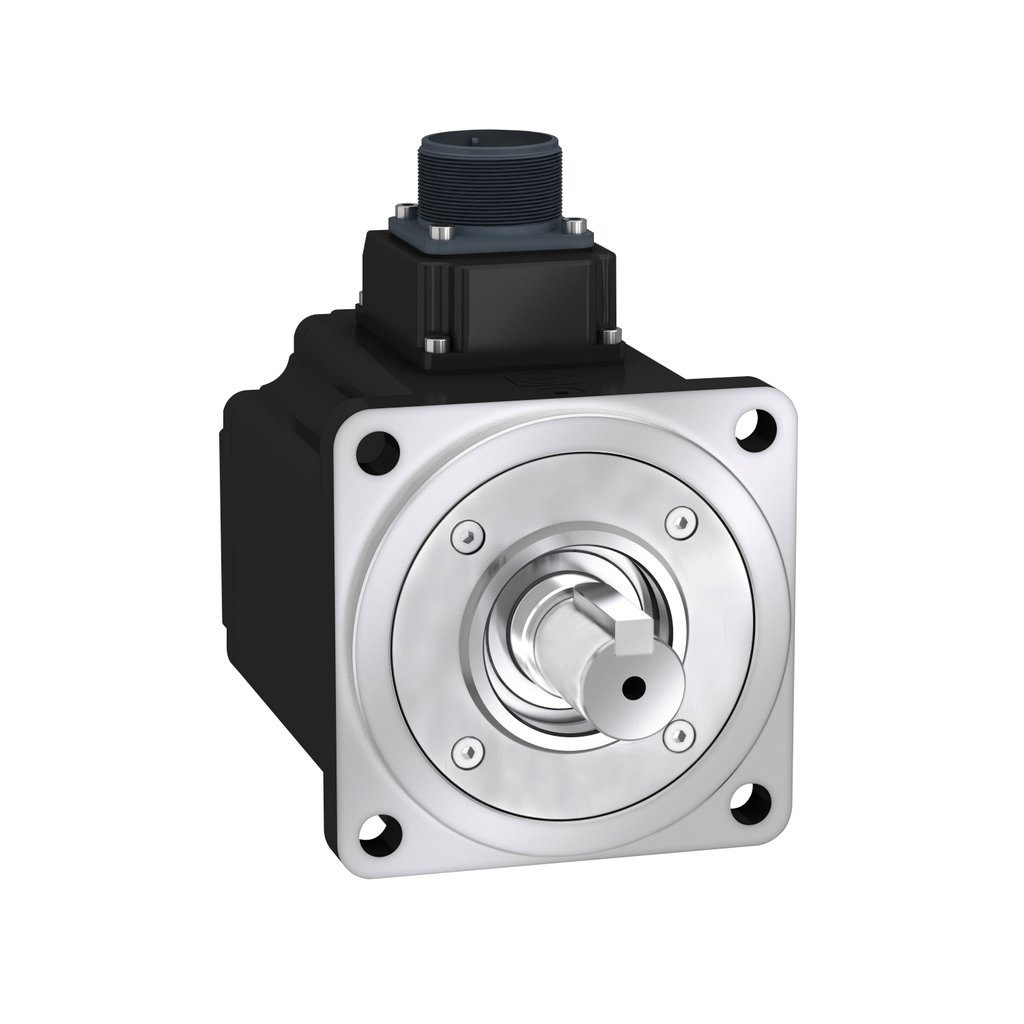

This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 5000RPM and keyed shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 5.83A and a continuous power of 1000W. The shaft dimensions are 22mm (diameter) x 45mm (length). It is furnished with MIL connector for electrical connection. It is an IP50 and IP65 rated product. The length of this product is 153.5mm and the centering collar dimensions are 7mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 4.6kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM26D servo drive motor at 1kW 220V single phase and LXM26D servo drive motor. It supports 100mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

• Nominal Speed
• 3000 rpm LXM26D 7 A, 220 V, single phase
• 3000 rpm LXM26D 7 A, 220 V, three phase
• 3000 rpm LXM28... 7 A, 220 V, single phase
• 3000 rpm LXM28... 7 A, 220 V, three phase
• IP Degree Of Protection
• IP50 IM V3
• IP65 IM B5, IM V1
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0412368206
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.7 kg CO2 eq.
• 0.6948939574
• Inertia
• 0.0 kg.cm² of brake
• 2.39 kg.cm² of motor
• Nominal Output Power
• 1000 W LXM26D 7 A, 220 V, single phase
• 1000 W LXM26D 7 A, 220 V, three phase
• 1000 W LXM28... 7 A, 220 V, single phase
• 1000 W LXM28... 7 A, 220 V, three phase
• Electrical Connection
• connector MIL
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 37 kg CO2 eq.
• 37.0820941704
• Peak Stall Torque
• 9.54 N.m LXM26D 7 A, 220 V, single phase
• 9.54 N.m LXM26D 7 A, 220 V, three phase
• 9.54 N.m LXM28... 7 A, 220 V, single phase
• 9.54 N.m LXM28... 7 A, 220 V, three phase
• Accessories
• VW3M7101R01
• VW3M7102R150
• VW3M2207
• Stator Electrical Time Constant
• 6.27 ms 20 °C
• Stator Resistance
• 0.67 Ohm 20 °C
• Maximum Radial Force FR
• 570 N 3000 rpm
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Stator Inductance
• 4.2 mH 20 °C
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 4 032 kg CO2 eq.
• 4032.4754914313
• Persona Type Ids
• EU
• OM
• OM8
• Nominal Torque
• 3.18 N.m half speed
• 3.18 N.m full speed
• 3.18 N.m LXM26D 7 A, 220 V, single phase
• 3.18 N.m LXM26D 7 A, 220 V, three phase
• 3.18 N.m LXM28... 7 A, 220 V, single phase
• 3.18 N.m LXM28... 7 A, 220 V, three phase
• Carbon Footprint Of The Distribution Phase A4
• 0.834789574
• 0.8 kg CO2 eq.
• Continuous Stall Torque
• 3.18 N.m LXM26D 7 A, 220 V, single phase
• 3.18 N.m LXM26D 7 A, 220 V, three phase
• 3.18 N.m LXM28 7 A, 220 V, single phase
• 3.18 N.m LXM28 7 A, 220 V, three phase
• Torque Constant
• 0.55 N.m/A 20 °C
• Product Compatibility
• LXM26D servo drive 1 kW, 220 V, single phase
• LXM26D servo drive 1 kW, 220 V, three phase
• LXM28... servo drive 1 kW, 220 V, single phase
• LXM28... servo drive 1 kW, 220 V, three phase
• Maximum Current IRMS
• 18.9 A LXM28... 1 kW, 220 V
• 20.0 A

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000075_3D-CAD
• Physical Attributes
• Key Width : 8 mm
• Motor Flange Size : 100 mm
• Shaft Length : 45 mm
• Complementary Attributes
• Maximum Ambient Air Temperature For Operation : 40.0 °C
• Maximum Mechanical Speed : 5000 rpm
• Maximum Operational Altitude : 1000.0 m
• Minimum Ambient Air Temperature For Operation : 0.0 °C
• Minimum Operational Altitude : 0.0 m
• Maximum In Rated Current : 6.64 A
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-06
• Device Type : Motion - drive & motor
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 37.0820941704
• Distribution Carbon Footprint : 0.834789574
• Installation Carbon Footprint : 0.0412368206
• Use Carbon Footprint : 4032.4754914313
• End Of Life Carbon Footprint : 0.6948939574
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1504002EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 2444
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 4
• Tier : 4
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Brake Pull In Power : 10.4 W
• Centring Collar Diameter : 95 mm
• Circle Diameter Of The Mounting Holes : 115 mm
• Coefficient 1 1 : -1.87500000003E-05 N.m/rpm
• Coefficient 1 2 : 5.62440546E-19 N.m/rpm²
• Coefficient 1 3 : -2.965143E-22 N.m/rpm3
• Coefficient 1 4 : 7.11E-26 N.m/rpm4
• Coefficient 1 5 : -7.8919E-30 N.m/rpm5
• Coefficient 1 6 : 3.2E-34 N.m/rpm6
• Coefficient 2 0 : 0 N.m
• Coefficient 2 1 : 8.75000000000026E-06 N.m/rpm
• Continuous Stall Current : 5.83 A
• Derating Altitude Start : 1000.0 m
• Derating Temperature Scale : 40.0 °C
• Derating Temperature Start : 40.0 °C
• Device Short Name : BCH2
• Distance Shaft Shoulder Flange : 7 mm
• Feedback Type : 20 bits single turn absolute encoder
• Holding Brake : without
• Maximum Operational Altitude : 1000.0 m
• Minimum Ambient Air Temperature For Operation : 0.0 °C
• Minimum Operational Altitude : 0.0 m
• Motor Figures : 230.0 V
• Motor Voltage Drop Coefficient : 1
• Mounting Holes Diameter : 9.2 mm
• Network Number Of Phases : 1
• Number Of Motor Poles : 5.0
• Number Of Motor Stacks : 1
• Package Weight Lbs : 5.893 kg
• Peak Nominal Torque : 9.54 N.m
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : servo motor
• Returnability : No
• Rotor Inertia : 2.4 kg.cm²
• Saturation Coefficient : -3.8243890773E-18
• Shaft Diameter : 22 mm
• Shaft End : keyed
• Sizing Reference : BCH2
• Sustainable Packaging : No
• Temperature Copper Hot : 135 °C
• Temperature Magnet Hot : 100 °C
• Temperature Magnet RT : 20 °C
• Total Lifecycle Carbon Footprint : 4 071 kg CO2 eq.
• Maximum In Rated Current : 6.64 A
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 4071.1285059537
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1504002EN
• Pep Verification Date : 2020-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 6470
• Functional Unit Description : To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
• Functional Unit Quantity : 1
• Functional Unit Unit : unité (unit)
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 8230.436
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Energy model used: China
• Energy Model Installation A5 : Electricity mix; AC; < 1kV; EU-27
• Energy Model Use B6 : Electricity mix; AC; < 1kV; EU-27
• Energy Model End Of Life C1 C4 : Electricity mix; AC; < 1kV; EU-27
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0013291219
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0009786963
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000334
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000016
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0003503737
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000169
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 46098.0239022446
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 307.5063340807
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 11.7279630045
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.5279940695
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 45771.5096728612
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 6.7519382287
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.0022608661
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0002125163
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.0020483498
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Hazardous Waste Disposed Of Kg Total Life Cycle : 40.5871126457
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 28.584779148
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0000115089
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 2.102206518
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 9.9001154709
• Materials For Energy Recovery Kg Total Life Cycle : 0.051281278
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0.051281278
• Materials For Recycling Kg Total Life Cycle : 2.5499706166
• Materials For Recycling Kg Manufacturing A1 A3 : 0.3346846861
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.7188445628
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 1.4964413677
• Net Use Of Fresh Water M3 Total Life Cycle : 14621.4434147006
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.376717926
• Net Use Of Fresh Water M3 Distribution A4 : 0.0000747096
• Net Use Of Fresh Water M3 Installation A5 : 0.0000061726
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 14621.0659027344
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0007131579
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 15070.4973122306
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 35.7090325112
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0296597276
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0254629316
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 15034.7076165176
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0255405426
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.000268139
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000054082
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000017
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000001
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0002626873
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000417
• Radioactive Waste Disposed Of Kg Total Life Cycle : 10.06539165
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0242458173
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000211247
• Radioactive Waste Disposed Of Kg Installation A5 : 0.0000017344
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 10.041081773
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000412006
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 71067.710529701
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 750.9406950673
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 11.787440583
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.5328610762
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 70296.0718984454
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 8.3776345291
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 81336.6019800963
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 777.923206278
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 11.8033979821
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.534253722
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 80537.9540582129
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 8.3870639013
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 10268.1900038454
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 26.989764574
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0157296435
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0013866254
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 10241.1738691617
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0092538408
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 45.683132287
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 45.683132287
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 71022.0143413602
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 705.2445067265
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 11.787440583
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.5328610762
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 70296.0718984454
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 8.3776345291
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 14.0606446188
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 14.0606446188
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 10254.1293592266
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 12.9291199552
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0157296435
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0013866254
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 10241.1738691617
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0092538408
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Total Life Cycle : 1.6436121076
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 1.6436121076
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Air Pollution M3 Total Life Cycle : 178957.2065697043
• Air Pollution M3 Manufacturing A1 A3 : 5301.9909192825
• Air Pollution M3 Distribution A4 : 35.5102903587
• Air Pollution M3 Installation A5 : 1.8156618834
• Air Pollution M3 Operational Energy Use B6 : 173557.7593170138
• Air Pollution M3 End Of Life C1 C4 : 60.1303811659
• Water Pollution M3 Total Life Cycle : 171793.7505339809
• Water Pollution M3 Manufacturing A1 A3 : 5187.3877802691
• Water Pollution M3 Distribution A4 : 137.2771524664
• Water Pollution M3 Installation A5 : 6.1744254484
• Water Pollution M3 Operational Energy Use B6 : 166395.1705659316
• Water Pollution M3 End Of Life C1 C4 : 67.7406098655
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 17.0296865873
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.9361830072
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 1.0435259121
• Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.2033335314
• Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0038114973
• Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0001711576
• Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 16.820662379
• Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.001708022
• Global Warming Kg Equivalent Co2 Total Life Cycle : 4071.1285059537
• Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 37.0820941704
• Global Warming Kg Equivalent Co2 Distribution A4 : 0.834789574
• Global Warming Kg Equivalent Co2 Installation A5 : 0.0412368206
• Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 4032.4754914313
• Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.6948939574
• Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0114530605
• Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0002719866
• Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000128138
• Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.9242661188
• Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0001790275
• Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0265647175
• Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0008778746
• Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000489776
• Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 1.0156001924
• Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0004341501
• General Attributes
• Product Or Component Type : servo motor
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=368469649&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 4071.1285059537
• Circularity Profile : ENVEOLI1504002EN
• Environmental Disclosure : ENVPEP1504002EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1504002EN
• Pep Verification Date : 2020-11-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Specifications
• Country of Origin : China
