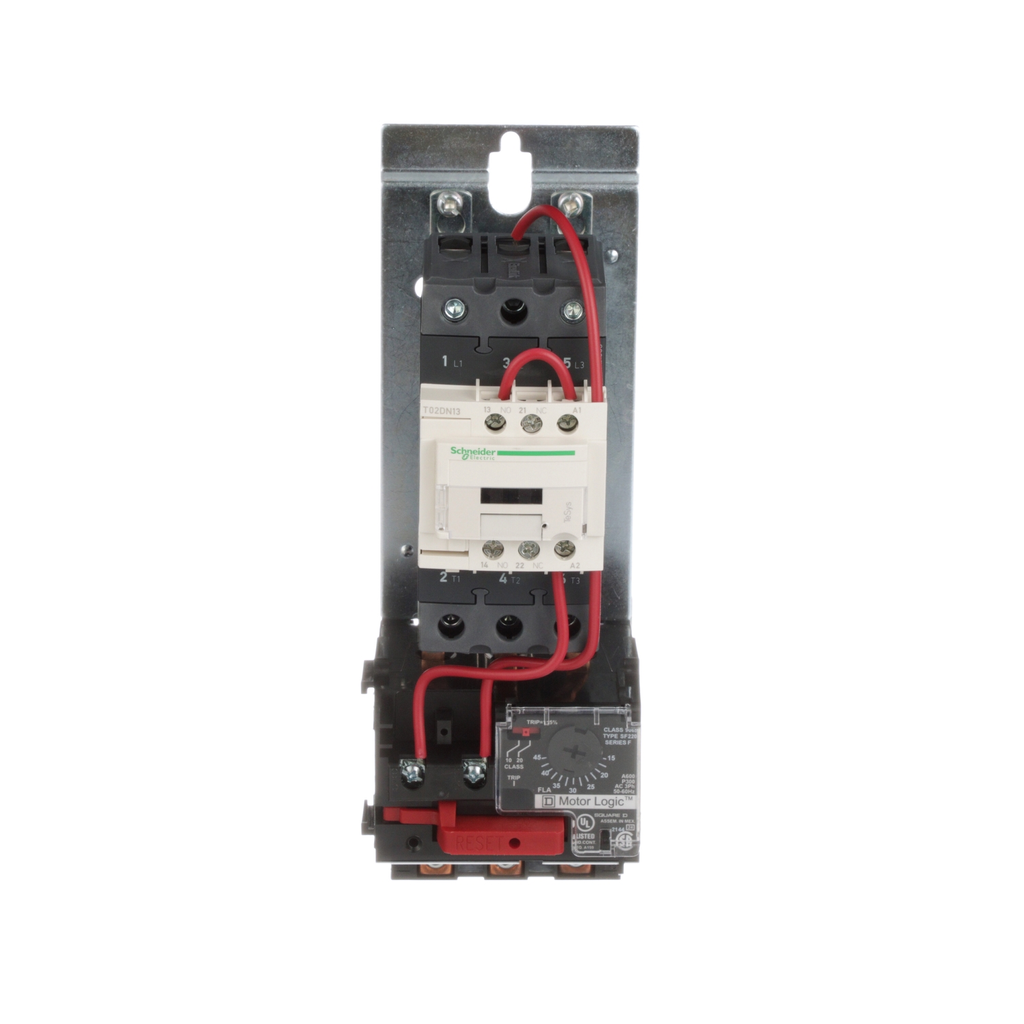

Motor Starter, TeSys NEMA, nonreversing, Size 2, 45A, 3 pole, HP rated, Motor Logic SSOLR, 120 VAC 60 Hz coil, open

OPEN STARTER NEMA SZ 2 3P 120V

SQDT36DN13G7 T36DN13G7 785901958123
799.76 / EA
http://schema.org/OutOfStock
Mayer-DDS-Motor Starter, TeSys NEMA, nonreversing, Size 2, 45A, 3 pole, HP rated, Motor Logic SSOLR, 120 VAC 60 Hz coil, open-2
  • Country of Origin: USA
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 2 motor starter has a 45 amperage continuous current rating. It also has ratings of 10 HP at 200 VAC, of
QTY
  • Product Description
  • Features
  • Specifications
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 2 motor starter has a 45 amperage continuous current rating. It also has ratings of 10 HP at 200 VAC, of
  • Uc Control Circuit Voltage
    • 120 V AC
  • Rated Power In Hp
    • 10 HP 200 V AC
    • 15 HP 230 V AC
    • 25 HP 460 V AC
    • 25 HP 575 V AC
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Ue Rated Operational Voltage
    • 600 V AC
  • Accessories
    • LADN22
    • LADN13
    • LADN40
    • LADN04
    • LADN31
    • LADC22
    • LADN11
    • LADN20
    • LADN02
    • LADN10
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
  • Thermal Overload Type
    • solid state Motor Logic class 10/20 15-45 A
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Product Certifications
    • UL Listed
    • CSA
  • Complementary Attributes
    • Control Circuit : common control circuit
    • Line Rated Current : 45 A
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-17
    • ETIM 10 : EC001037
    • Html Descr : TeSys NEMA Sz 2 Open StarterLine Rated Current : 45 AAuxiliary Contacts :&nb
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 2011
    • ROHS Eur Full Compliance Status : Compliant with Exemptions
    • ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Electrical Connection : screw clamp terminals
    • Motor Starter Type : non reversing
    • Package Weight Lbs : 1.837 kg
    • Phase : 3 phase
    • Poles Description : 3P
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : starter
    • Range Of Product : TeSys N
    • Returnability : Yes
    • Sustainable Packaging : No
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : starter
    • Range Of Product : TeSys N
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=465372387&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant with Exemptions
    • Nema Degree Of Protection : not rated (open device)
    • Nema Size : 2
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
  • Specifications
    • Country of Origin : United States
