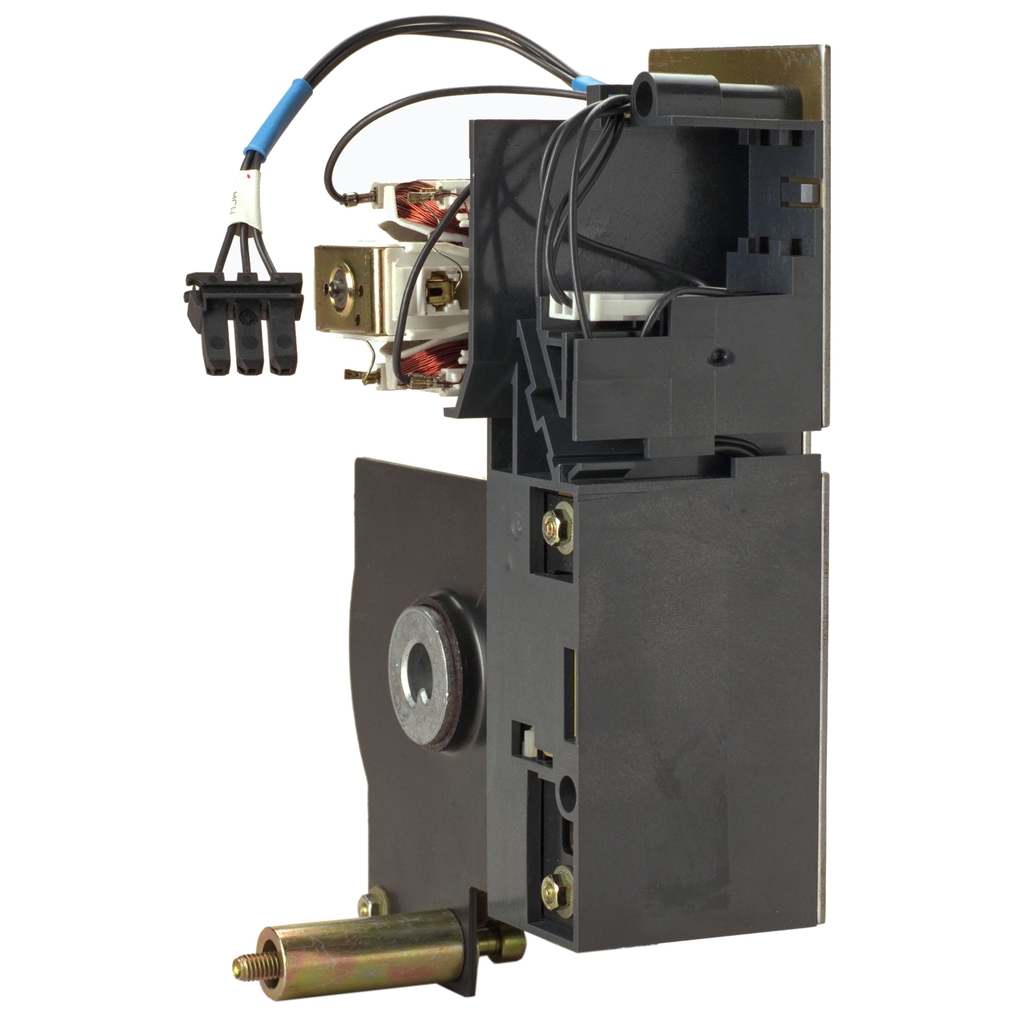

This is an automatic spring charging control accessory for MasterPacT NW circuit breakers. This is a control accessory. This spring charging accessory has a rated voltage for 100-130 VAC. This product complies with UL and CSA standards.

• Features
• Protects electrical systems from overloads, short circuits, and ground faults
• Manually opens/closes a circuit and trips automatically at preset overcurrent
• Prevents unsafe access by blocking door opening when breaker is ON or tripped
• Avoids accidental energizing by disabling breaker closing when the door is open
• Allows controlled override for maintenance using a tool when needed
• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

• Complementary Attributes
• Rated Voltage : 100-130 V AC
• Important Information Attributes
• Persona Type Ids : LC, OM8, PB
• Persona Type Names : Contractor, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Carbon Footprint Of The Distribution Phase A4 : 0.24244104, 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 4 kg CO2 eq., 4.051442948
• Carbon Footprint Of The Installation Phase A5 : 0.370765686, 0.4 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 9 kg CO2 eq., 9.091458565
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.1 kg CO2 eq., 0.084016
• Local Data Status : Publishable
• Local Publishable Date : 2026-09-05
• Return Indicator : Y
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Weee Scope : In
• Weee Product Category : 4
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2307034EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Circuit Breaker Type : Y-frame
• Device Application : automatic spring charging
• Device Short Name : MCH
• Energy Efficiency Optimized : False
• Mounting Mode : fixed
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : spring charging motor
• Range Of Product : MasterPact NW
• Returnability : Yes
• Software Version : v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 14 kg CO2 eq.
• Database Version : 2022-01
• Data Source : extrapolated product
• Accessory / Separate Part Category : control accessory
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8501404020
• Warranty In Months : 18
• Functional Unit Description : The electric Motor mechanism is equipped as standard with a limit switch contact CH that signals the “charged” position of the mechanism (springs charged), during 10 years
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Recyclability Potential In % : 74
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Carbon Footprint : 13.84012424
• Circularity Profile : ENVEOLI2307034EN
• Environmental Disclosure : ENVPEP2307034EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2307034EN
• Pep Verification Date : 2023-12-03
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : spring charging motor
• Range Of Product : MasterPact NW
• Contractual Warranty Attributes
• Warranty : 18 months
• Specifications
• Country of Origin : China
• Weight : 1854 g
