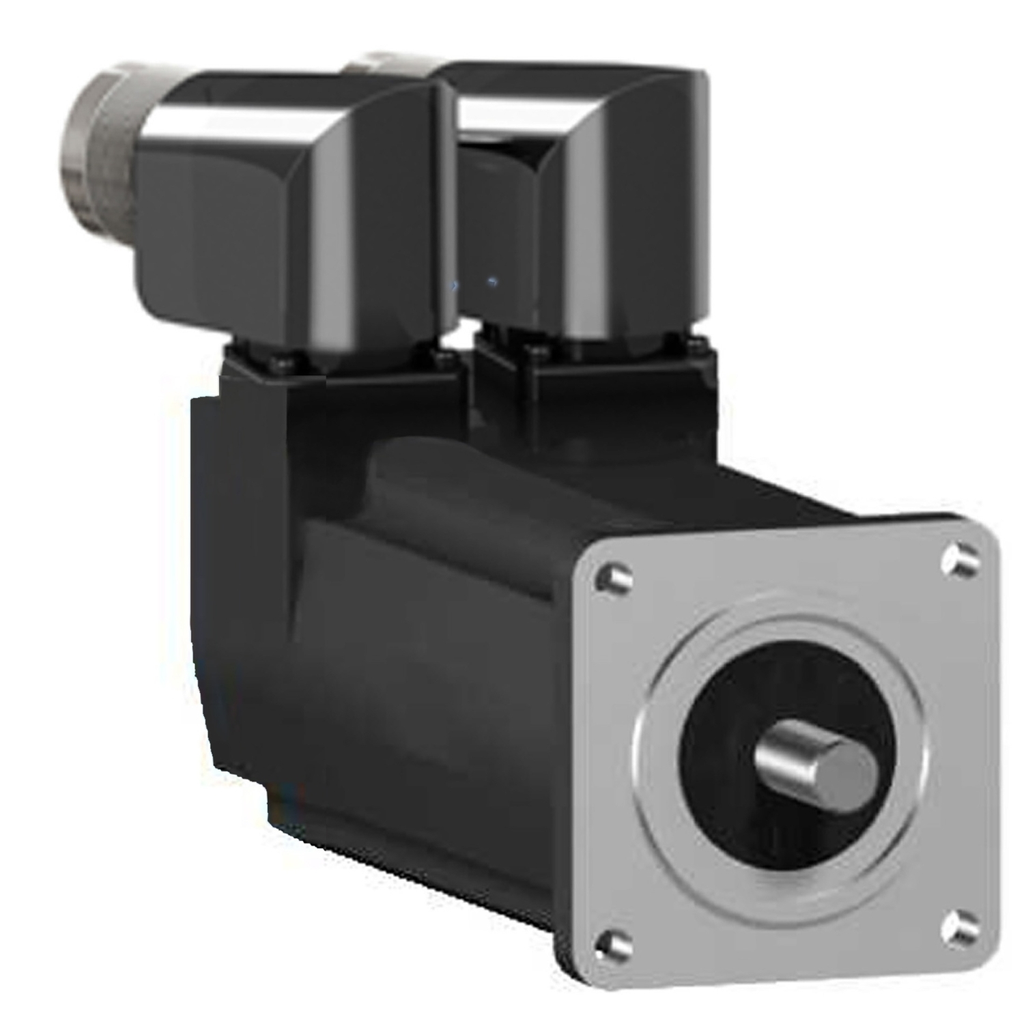

servo motor SH3 055 0,42Nm,nokey,multi,brake,90°conn.IP54/IP65,9k RPM

SH055/80005/0/0/00/00/00/11/00

SQDSH30551P02F2000 SH30551P02F2000 3606485295121
2547.20 / EA
http://schema.org/OutOfStock
Mayer-DDS-servo motor SH3 055 0,42Nm,nokey,multi,brake,90°conn.IP54/IP65,9k RPM-1
  • Shaft Diameter: 9 mm
  • Shaft End: Smooth Shaft
  • Shaft Length: 20 mm
  • Warranty Length: 18 mth
This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 3-pole servo motor features maximum mechanical speed of 9000RPM and smooth shaft end with holding brake. It is an equipped with an absolute multi-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 0.73A and a continuous power of 290W. The shaft dimensions are 9mm (diameter) x 20mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 and IP65 rated product. The length of this product is 159mm and the centering collar dimensions are 2mm (depth) x 40mm (diameter) with 63mm mounting hole. It weighs 1.3kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 55mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Motor Flange Size : 55 mm
    • Shaft Length : 20 mm
  • Complementary Attributes
    • Maximum Radial Force FR : 340 N 1000 rpm, 270 N 2000 rpm, 240 N 3000 rpm, 220 N 4000 rpm, 200 N 5000 rpm, 190 N 6000 rpm, 180 N 7000 rpm, 170 N 8000 rpm
    • Maximum Ambient Air Temperature For Operation : 60.0 °C
    • Maximum Current IRMS : 2.9 A
    • Maximum Mechanical Speed : 9000 rpm
    • Maximum Operational Altitude : 3000.0 m
    • Minimum Ambient Air Temperature For Operation : -20.0 °C
    • Minimum Operational Altitude : 0.0 m
    • Maximum In Rated Current : 0.62 A
  • Important Information Attributes
    • Persona Type Ids : EU, OM
    • Persona Type Names : End User, Original Equipment Manufacturer
    • Inertia : 0.021 kg.cm² of brake, 0.059 kg.cm² of motor
    • Nominal Speed : 2000 rpm 115 V single phase, 4000 rpm 230 V single phase, 8000 rpm 400 V three phase, 8000 rpm 480 V three phase
    • Nominal Torque : 0.5 N.m 115 V single phase, 0.5 N.m 230 V single phase, 0.35 N.m 400 V three phase, 0.35 N.m 480 V three phase, 0.35 N.m full speed, 0.49 N.m half speed
    • Carbon Footprint Of The Distribution Phase A4 : 0.2370045946, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2 kg CO2 eq., 0.1731022703
    • Carbon Footprint Of The Installation Phase A5 : 0.0162964919, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 8 kg CO2 eq., 8.0421783784
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 952 kg CO2 eq., 952.3534193255
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : Motion - drive & motor
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Centring Collar Diameter : 40 mm
    • Circle Diameter Of The Mounting Holes : 63 mm
    • Continuous Stall Current : 0.73 A
    • Continuous Stall Torque : 0.42 N.m 115...480 V three phase
    • Derating Altitude Scale : 80.0 m
    • Derating Altitude Start : 1000.0 m
    • Derating Temperature Scale : 80.0 °C
    • Derating Temperature Start : 40.0 °C
    • Device Short Name : SH3
    • Electrical Connection : rotatable right angled connector
    • Holding Brake : with
    • Holding Torque : 0.8 N.m
    • Maximum Operational Altitude : 3000.0 m
    • Minimum Ambient Air Temperature For Operation : -20.0 °C
    • Minimum Operational Altitude : 0.0 m
    • Motor Figures : 400.0 V
    • Mounting Holes Diameter : 5.5 mm
    • Package Weight Lbs : 1.837 kg
    • Peak Nominal Torque : 1.5 N.m
    • Peak Stall Torque : 1.5 N.m 115...480 V three phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : servo motor
    • Returnability : Yes
    • Shaft Diameter : 9 mm
    • Shaft End : smooth shaft
    • Sizing Reference : SH30551P
    • Stator Inductance : 37.13 mH
    • Stator Resistance : 41.8 Ohm
    • Sustainable Packaging : No
    • Temperature Copper Hot : 130 °C
    • Torque Constant : 0.58 N.m/A 120 °C
    • Total Lifecycle Carbon Footprint : 961 kg CO2 eq.
    • Maximum In Rated Current : 0.62 A
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP111049EN
    • Pep Verification Date : 2020-08-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
    • Product Manager : FABIEN GAULT
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5, IP65 motor: conforming to IEC 60034-5, IP65 shaft bushing: conforming to IEC 60034-5
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 960.8220010607
    • Environmental Disclosure : ENVPEP111049EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP111049EN
    • Pep Verification Date : 2020-08-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : servo motor
  • Output Attributes
    • Nominal Output Power : 100 W 115 V single phase, 210 W 230 V single phase, 400 W 400 V three phase, 440 W 480 V three phase
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
