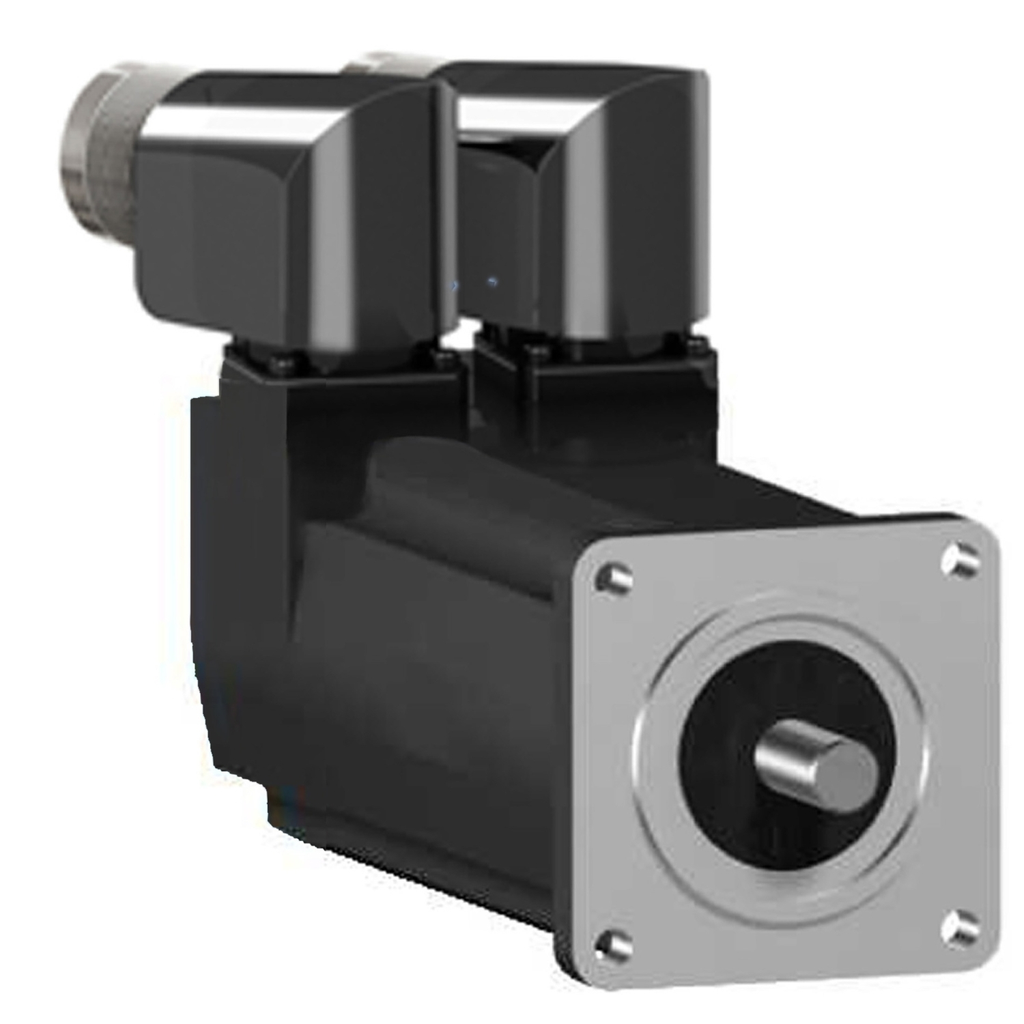

servo motor SH3 055 0,42Nm,key,multi,nobrake,90Â°conn.IP54/IP65,9k RPM

Name: servo motor SH3 055 0,42Nm,key,multi,nobrake,90Â°conn.IP54/IP65,9k RPM
Brand: SCHNEIDER ELECTRIC
SKU: SQDSH30551P12A2000
Price: 2256.35 USD
Availability: OutOfStock

SH055/80005/0/1/00/00/00/10/00

SQDSH30551P12A2000 SH30551P12A2000 3606485295183

2256.35 / EA

http://schema.org/OutOfStock

Mayer-DDS-servo motor SH3 055 0,42Nm,key,multi,nobrake,90Â°conn.IP54/IP65,9k RPM-1

Country of Origin: Germany
Shaft Diameter: 9 mm
Shaft End: Parallel Key
Shaft Length: 20 mm
Warranty Length: 18 mth

QTY

Features
Specifications

Nominal Speed

2000 rpm 115 V single phase
4000 rpm 230 V single phase
8000 rpm 400 V three phase
8000 rpm 480 V three phase

IP Degree Of Protection

IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5
IP65 motor: conforming to IEC 60034-5
IP65 shaft bushing: conforming to IEC 60034-5

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon Footprint Of The Installation Phase A5

0.0141940049
0 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

0.2 kg CO2 eq.
0.1507695332

Inertia

0.0 kg.cm² of brake
0.059 kg.cm² of motor

Nominal Output Power

100 W 115 V single phase
210 W 230 V single phase
400 W 400 V three phase
440 W 480 V three phase

Carbon Footprint Of The Manufacturing Phase A1 To A3

7 kg CO2 eq.
7.0046191646

Peak Stall Torque

1.5 N.m 115...480 V three phase

Maximum Radial Force FR

340 N 1000 rpm
270 N 2000 rpm
240 N 3000 rpm
220 N 4000 rpm
200 N 5000 rpm
190 N 6000 rpm
180 N 7000 rpm
170 N 8000 rpm

Persona Type Names

End User
Original Equipment Manufacturer

Carbon Footprint Of The Use Phase B2 B3 B4 B6

952 kg CO2 eq.
952.3534193255

Persona Type Ids

Nominal Torque

0.5 N.m 115 V single phase
0.5 N.m 230 V single phase
0.35 N.m 400 V three phase
0.35 N.m 480 V three phase
0.35 N.m full speed
0.49 N.m half speed

Carbon Footprint Of The Distribution Phase A4

0.2064275184
0.2 kg CO2 eq.

Continuous Stall Torque

0.42 N.m 115...480 V three phase

Device Short Name

Torque Constant

0.58 N.m/A 120 °C

Assets

CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001366_3D-CAD

Physical Attributes

Key Width : 3 mm
Motor Flange Size : 55 mm
Shaft Length : 20 mm

Complementary Attributes

Maximum Ambient Air Temperature For Operation : 60.0 °C
Maximum Current IRMS : 2.9 A
Maximum Mechanical Speed : 9000 rpm
Maximum Operational Altitude : 3000.0 m
Minimum Ambient Air Temperature For Operation : -20.0 °C
Minimum Operational Altitude : 0.0 m
Maximum In Rated Current : 0.62 A

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 2025-07-09
Device Type : Motion - drive & motor
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 15 year(s)
Manufacturing Carbon Footprint : 7.0046191646
Distribution Carbon Footprint : 0.2064275184
Installation Carbon Footprint : 0.0141940049
Use Carbon Footprint : 952.3534193255
End Of Life Carbon Footprint : 0.1507695332
Legacy WEEE Scope : Out
Scope Perimeter : At least in Europe
EOLI Availability Display : No need of specific recycling operations
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant with Exemptions
ROHS EUR Conformity Date : 1901
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 5
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : Y
WD Status : 2 - SELECTED (Migration)
Tier Id : 3
Tier : 3
Function Option Id : ADVANCED
Function Option : Advanced
Market Segmentation Id : INDUSTRIAL
Market Segmentation : Industrial
Centring Collar Diameter : 40 mm
Circle Diameter Of The Mounting Holes : 63 mm
Continuous Stall Current : 0.73 A
Derating Altitude Scale : 80.0 m
Derating Altitude Start : 1000.0 m
Derating Temperature Scale : 80.0 °C
Derating Temperature Start : 40.0 °C
Electrical Connection : rotatable right angled connector
Holding Brake : without
Maximum Operational Altitude : 3000.0 m
Minimum Ambient Air Temperature For Operation : -20.0 °C
Minimum Operational Altitude : 0.0 m
Motor Figures : 400.0 V
Mounting Holes Diameter : 5.5 mm
Network Number Of Phases : 3
Number Of Motor Poles : 3.0
Package Weight Lbs : 1.6 kg
Peak Nominal Torque : 1.5 N.m
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : servo motor
Returnability : Yes
Rotor Inertia : 0.059 kg.cm²
Shaft Diameter : 9 mm
Shaft End : parallel key
Sizing Reference : SH30551P
Stator Inductance : 37.13 mH
Stator Resistance : 41.8 Ohm
Sustainable Packaging : No
Temperature Copper Hot : 130 °C
Total Lifecycle Carbon Footprint : 960 kg CO2 eq.
Maximum In Rated Current : 0.62 A
Carbon Footprint Kg Co2 Eq Total Life Cycle : 959.7294295467
Relationship Type : Compatible relationship
Pep Code : ENVPEP111049EN
Pep Verification Date : 2020-08-01
PCR Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent internal review
Product Weight In G : 1600
Functional Unit Description : Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional Unit Quantity : 1
Functional Unit Unit : unit
Reference Lifetime In Y : 10
Energy Consumption On Product Lifetime In Kwh : 1943.7979
Nbr Of Units In Pkg : 1
Warranty In Months : 18
Energy Model Manufacturing A1 A3 : Energy model used: Germany
Energy Model Installation A5 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model Use B6 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model End Of Life C1 C4 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Components For Re Use Kg Total Life Cycle : 0
Components For Re Use Kg Manufacturing A1 A3 : 0
Components For Re Use Kg Distribution A4 : 0
Components For Re Use Kg Installation A5 : 0
Components For Re Use Kg Operational Energy Use B6 : 0
Components For Re Use Kg End Of Life C1 C4 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0006046894
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0005219263
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000083
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000005
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000827503
Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.000000004
Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 10876.6391959614
Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 61.9341523342
Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 2.9002457002
Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.1823036855
Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 10810.0538259369
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 1.5686683047
Exported Energy Mj By Energy Vector Total Life Cycle : 0.0007846781
Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0000737592
Exported Energy Mj By Energy Vector Distribution A4 : 0
Exported Energy Mj By Energy Vector Installation A5 : 0.0007109189
Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
Hazardous Waste Disposed Of Kg Total Life Cycle : 26.783419666
Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 24.7213759214
Hazardous Waste Disposed Of Kg Distribution A4 : 0
Hazardous Waste Disposed Of Kg Installation A5 : 0.0000032633
Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.4964974837
Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 1.5655429975
Materials For Energy Recovery Kg Total Life Cycle : 0.0083628501
Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
Materials For Energy Recovery Kg Distribution A4 : 0
Materials For Energy Recovery Kg Installation A5 : 0
Materials For Energy Recovery Kg Operational Energy Use B6 : 0
Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0083628501
Materials For Recycling Kg Total Life Cycle : 1.5296766585
Materials For Recycling Kg Manufacturing A1 A3 : 0.1511410319
Materials For Recycling Kg Distribution A4 : 0
Materials For Recycling Kg Installation A5 : 0.2489434889
Materials For Recycling Kg Operational Energy Use B6 : 0
Materials For Recycling Kg End Of Life C1 C4 : 1.1295921376
Net Use Of Fresh Water M3 Total Life Cycle : 3453.2706829947
Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.1270840295
Net Use Of Fresh Water M3 Distribution A4 : 0.0000184751
Net Use Of Fresh Water M3 Installation A5 : 0.0000020012
Net Use Of Fresh Water M3 Operational Energy Use B6 : 3453.1434164722
Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0001620167
Non Hazardous Waste Disposed Of Kg Total Life Cycle : 3557.3564140753
Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 6.5928255528
Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0073346437
Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0073026044
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 3550.7429304389
Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0060208354
Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000732144
Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000111648
Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000004
Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000620408
Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000083
Radioactive Waste Disposed Of Kg Total Life Cycle : 2.3760936358
Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0046453071
Radioactive Waste Disposed Of Kg Distribution A4 : 0.000005224
Radioactive Waste Disposed Of Kg Installation A5 : 0.0000005505
Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 2.3714332671
Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000092871
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 16740.2897503061
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 133.2835380835
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 2.914987715
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.1838506143
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 16601.9549611169
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.9524127764
Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 19167.1752667558
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 141.5312039312
Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 2.9189189189
Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.1842869779
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 19020.5862426771
Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 1.9546142506
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2426.8862477912
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 8.2484520885
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0038899263
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0004368943
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2418.6312815602
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0021873219
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.5378476658
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.5378476658
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 16738.750683967
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 131.7444717445
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 2.914987715
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.1838506143
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 16601.9549611169
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.9524127764
Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.9102702703
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.9102702703
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2421.9757809607
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.337985258
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0038899263
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0004368943
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2418.6312815602
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0021873219
Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Secondary Materials Kg Total Life Cycle : 0.4943882064
Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.4943882064
Use Of Secondary Materials Kg Distribution A4 : 0
Use Of Secondary Materials Kg Installation A5 : 0
Use Of Secondary Materials Kg Operational Energy Use B6 : 0
Use Of Secondary Materials Kg End Of Life C1 C4 : 0
Air Pollution M3 Total Life Cycle : 43011.3665876374
Air Pollution M3 Manufacturing A1 A3 : 1998.4275184275
Air Pollution M3 Distribution A4 : 8.7815233415
Air Pollution M3 Installation A5 : 0.6125208845
Air Pollution M3 Operational Energy Use B6 : 40989.660209259
Air Pollution M3 End Of Life C1 C4 : 13.8848157248
Water Pollution M3 Total Life Cycle : 39871.9354355728
Water Pollution M3 Manufacturing A1 A3 : 522.2407862408
Water Pollution M3 Distribution A4 : 33.9479115479
Water Pollution M3 Installation A5 : 2.1320884521
Water Pollution M3 Operational Energy Use B6 : 39298.2200547374
Water Pollution M3 End Of Life C1 C4 : 15.3945945946
Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 3.9973010945
Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.2204311408
Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.2428411076
Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.023372973
Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0009425651
Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0000589857
Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 3.9725351407
Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.00039143
Global Warming Kg Equivalent Co2 Total Life Cycle : 959.7294295467
Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 7.0046191646
Global Warming Kg Equivalent Co2 Distribution A4 : 0.2064275184
Global Warming Kg Equivalent Co2 Installation A5 : 0.0141940049
Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 952.3534193255
Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.1507695332
Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0020320393
Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0000672609
Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000044132
Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.2182854775
Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000419499
Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0026549386
Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0002171007
Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000163312
Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.2398556108
Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000971263

General Attributes

Product Or Component Type : servo motor

Environment Attributes

ROHS Exemption Information : Yes
China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=417169607&lang=en-us
Take Back : No
Recycled Metal Content At Cr Level : 0 %
China ROHS Regulation : X
Mercury Free : Yes
Carbon Footprint : 959.7294295467
Environmental Disclosure : ENVPEP111049EN
EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
Pep Code : ENVPEP111049EN
Pep Verification Date : 2020-08-01
PCR Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent internal review

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months

Specifications

Country of Origin : Germany

servo motor SH3 055 0,42Nm,key,multi,nobrake,90Â°conn.IP54/IP65,9k RPM

SH055/80005/0/1/00/00/00/10/00

characters left.
