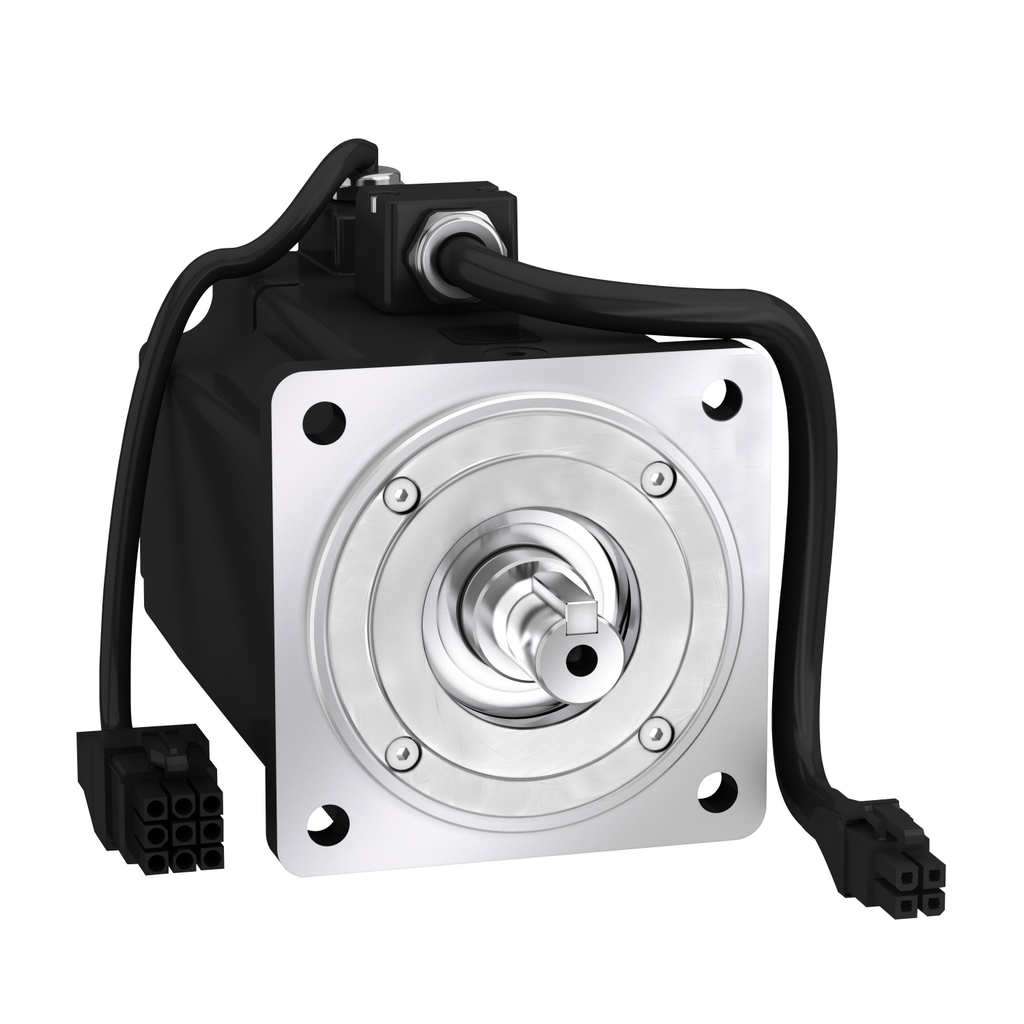

servo motor BCH, Lexium 28, 80mm, 750W, 1.54kg.cm², without oil seal, with key, leads connection

Name: servo motor BCH, Lexium 28, 80mm, 750W, 1.54kg.cm², without oil seal, with key, leads connection
Brand: Mayer Electric Supply
SKU: SQDBCH2HF0731CA5C
Price: 928.86 USD
Availability: OutOfStock

80mm, 750W, IP54, w/ key, lea

SQDBCH2HF0731CA5C BCH2HF0731CA5C 3606480733741

928.86 / EA

http://schema.org/OutOfStock

Mayer-DDS-servo motor BCH, Lexium 28, 80mm, 750W, 1.54kg.cm², without oil seal, with key, leads connection-1

Country of Origin: China
Length: 5.43 in
Shaft Diameter: 19 mm
Shaft End: Keyed
Shaft Length: 35 mm

QTY

Features
Specifications

Nominal Speed

3000 rpm LXM28... 4.5 A, 220 V, single phase
3000 rpm LXM28... 4.5 A, 220

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon Footprint Of The Installation Phase A5

0.0221799283
0 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

0.4 kg CO2 eq.
0.373760583

Phase

three phase
single phase

Ip Degree Of Protection

IP54 IM B5, IM V1
IP50 IM V3

Nominal Output Power

750 W LXM28... 4.5 A, 220 V, single phase
750 W LXM28... 4.5 A, 220 V, three phase
750

Carbon Footprint Of The Manufacturing Phase A1 To A3

20 kg CO2 eq.
19.9452376682

Peak Stall Torque

7.16 N.m LXM28... 4.5 A, 220 V, single phase
7.16 N.m LXM28... 4.5 A, 220

Accessories

VW3M7101R01
VW3M7102R150
VW3M2207

Stator Electrical Time Constant

4.07 ms 20 °C

Stator Resistance

1.5 Ohm 20 °C

Persona Type Names

End User
Original Equipment Manufacturer
OEM - Control Panelbuilder

Stator Inductance

6.1 mH 20 °C

Carbon Footprint Of The Use Phase B2 B3 B4 B6

3 318 kg CO2 eq.
3317.7034249803

Persona Type Ids

Us Rated Supply Voltage

220 V
110 V

Nominal Torque

2.39 N.m half speed
2.39 N.m full speed
2.39 N.m LXM28... 4.5 A, 220 V, single phase
2.39 N.m LXM28... 4.5 A, 220 V, single

Carbon Footprint Of The Distribution Phase A4

0.4490058296
0.4 kg CO2 eq.

Continuous Stall Torque

2.39 N.m LXM28 4.5 A, 220 V, single phase
2.39 N.m LXM28 4.5 A, 220 V, three phase
2.3

Torque Constant

0.6 N.m/A 20 °C

Maximum Radial Force Fr

332 N 3000 rpm

Product Compatibility

LXM28... servo drive 0.75 kW, 220 V, single phase
LXM2

Maximum Current Irms

13.23 A LXM28... 0.75 kW, 220 V
13.23 A LXM28... 0.75 kW, 110 V
13.23 A LXM28... 0.75 kW, 110

Physical Attributes

Key Width : 6 mm
Motor Flange Size : 80 mm
Shaft Length : 35 mm

Complementary Attributes

Line Rated Current : 4.29 A
Maximum Ambient Air Temperature For Operation : 40.0 °C
Maximum Axial Force Fa : 115 N
Maximum Mechanical Speed : 5000 rpm
Maximum Operational Altitude : 1000.0 m
Maximum Permanent Current : 4.29 A
Minimum Ambient Air Temperature For Operation : 0.0 °C
Minimum Operational Altitude : 0.0 m
Maximum In Rated Current : 4.29 A

Important Information Attributes

Country Id : US
Local Data Status : Publishable
Local Publishable Date : 2025-04-06
ETIM 10 : EC001851
Device Type : Motion - drive & motor
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 15 year(s)
Manufacturing Carbon Footprint : 19.9452376682
Distribution Carbon Footprint : 0.4490058296
Installation Carbon Footprint : 0.0221799283
Use Carbon Footprint : 3317.7034249803
End Of Life Carbon Footprint : 0.373760583
Legacy WEEE Scope : Out
WEEE Product Category : 5
Scope Perimeter : At least in Europe
EOLI Availability Display : Yes
End Of Life Doc Ref : ENVEOLI1504002EN
Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
ROHS Eur In Scope : No
ROHS Eur Status : Compliant
ROHS Eur Conformity Date : 2444
ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 1
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : N
WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
Tier Id : 4
Tier : 4
Function Option Id : ADVANCED
Function Option : Advanced
Market Segmentation Id : INDUSTRIAL
Market Segmentation : Industrial
Brake Pull In Power : 10.2 W
Centring Collar Diameter : 70 mm
Circle Diameter Of The Mounting Holes : 90 mm
Coefficient 1 1 : -1.87500000003E-05 N.m/rpm
Coefficient 1 2 : 5.62440546E-19 N.m/rpm²
Coefficient 1 3 : -2.965143E-22 N.m/rpm3
Coefficient 1 4 : 7.11E-26 N.m/rpm4
Coefficient 1 5 : -7.8919E-30 N.m/rpm5
Coefficient 1 6 : 3.2E-34 N.m/rpm6
Coefficient 2 0 : 0 N.m
Coefficient 2 1 : 8.75000000000026E-06 N.m/rpm
Continuous Power : 750 W
Continuous Stall Current : 4.01 A
Derating Altitude Start : 1000.0 m
Derating Temperature Scale : 40.0 °C
Derating Temperature Start : 40.0 °C
Device Short Name : BCH2
Distance Shaft Shoulder Flange : 4 mm
Electrical Connection : free lead
Feedback Type : 20 bits single turn absolute encoder
Holding Brake : without
Maximum Operational Altitude : 1000.0 m
Minimum Ambient Air Temperature For Operation : 0.0 °C
Minimum Operational Altitude : 0.0 m
Motor Figures : 230.0 V
Motor Voltage Drop Coefficient : 1
Mounting Holes Diameter : 6.6 mm
Mounting Support : asian standard flange
Network Number Of Phases : 1
Number Of Motor Poles : 4
Number Of Motor Stacks : 2
Number Of Mounting Holes : 4
Package Weight Lbs : 3.48 kg
Peak Nominal Torque : 7.16 N.m
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : servo motor
Range Compatibility : Lexium 28
Returnability : No
Rotor Inertia : 1.54 kg.cm²
Saturation Coefficient : -3.8243890773E-18
Shaft Diameter : 19 mm
Shaft End : keyed
Sizing Reference : BCH2
Sustainable Packaging : No
Temperature Copper Hot : 135 °C
Temperature Magnet Hot : 100 °C
Temperature Magnet Rt : 20 °C
Total Lifecycle Carbon Footprint : 3 338 kg CO2 eq.
Type Of Cooling : natural convection
Maximum In Rated Current : 4.29 A
Carbon Footprint Kg Co2 Eq Total Life Cycle : 3338.4936089892
Relationshiptype : Compatible relationship

General Attributes

Product Or Component Type : servo motor

Output Attributes

Output Current 3s Peak : 13.5 A

Environment Attributes

ROHS Exemption Information : Yes
China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=368469596&lang=en-us
Take Back : No
Reach Free Shvc : Yes
Recycled Metal Content At Cr Level : 0 %
China ROHS Regulation : X
Toxic Heavy Metal Free : Yes
Mercury Free : Yes
Carbon Footprint : 3338.4936089892
Ambient Air Temperature For Operation : -20-40 °C
Circularity Profile : ENVEOLI1504002EN
Environmental Disclosure : ENVPEP1504002EN
Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Reach Free Of Svhc : Yes
Reach Regulation : Free of Substances of Very High Concern above the threshold
