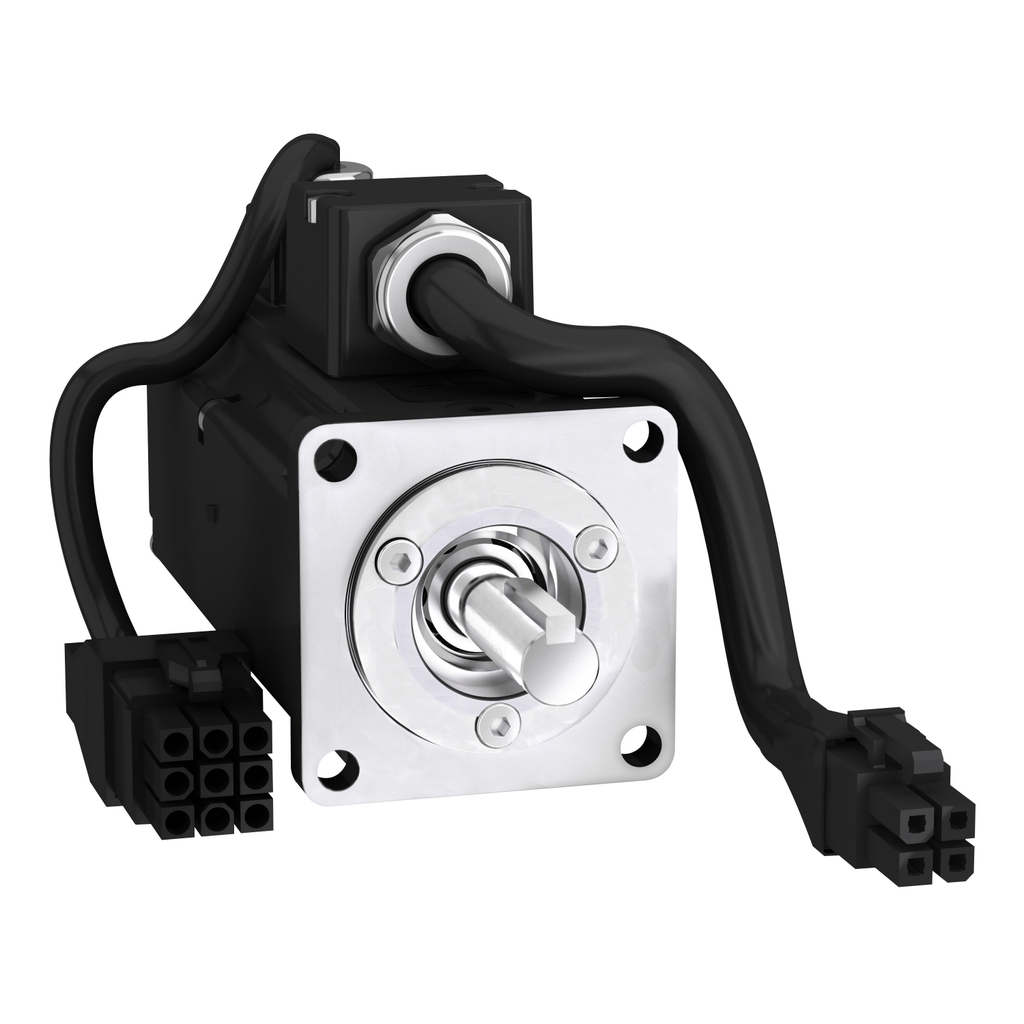

This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW and associated servo motors. This servo motor has a maximum mechanical speed of 5000RPM, a continuous stall torque of 0.32Nm, a keyed shaft end and a holding brake. It is equipped with a 20 bits single turn absolute encoder. It is a servo motor with a rated supply voltage of 220V, a continuous stall current of 0.81A and a continuous power of 100W. The shaft dimensions are 8mm (diameter) x 25mm (length). It is furnished with free leads connectors for power and encoder connections. It is an IP65 rated product (shaft and housing). It measures 100mm long without holding break, 129mm long with holding break, 55mm high, and its flange size is 40mm. It weighs 0.77kg. Servo motors BCH2 in combination with Lexium 28 servo drives are designed for application such as material working, material handling, assembly line, packaging. Lexium BCH2 servo motors are certified by EN 61800-5-1 2007, EN 60034-1 201O/AC 2010 standards, and UK. This motor is designed to be compatible with the Lexium 28 servo drive, encoder and power cables, connector kits, gearbox options and braking resistors. It installs on 4x holes of diameter 4.5mm, the circle diameter of the mounting holes is 46mm. Lexium 28 servo drives & Lexium BCH2 servo motors are the Optimized servo bundles for compact machines. Lexium 28 & Lexium BCH2 are optimized bundles for easy integration into machines, embedding communication interfaces, safety functions and DC bus sharing.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary
• Circle Diameter Of The Mounting Holes : 46 mm
• Maximum Permanent Current : 0.89 A
• Continuous Power : 100 W
• Maximum Mechanical Speed : 5000 rpm
• Temperature Magnet Hot : 100 °C
• Product Compatibility : LXM26D servo drive 0.1 kW, 220 V, single phase || LXM26D servo drive 0.1 kW, 220 V, three phase || LXM28... servo drive 0.1 kW, 220 V, single phase || LXM28... servo drive 0.1 kW, 220 V, three phase || LXM28... servo drive 0.1 kW, 110 V, single phase
• Stator Electrical Time Constant : 0.88 ms 20 °C
• Holding Torque : 0.32 N.m built-in
• Maximum Radial Force Fr : 85 N 3000 rpm
• Electrical Connection : free lead
• Mounting Support : asian standard flange
• Number Of Motor Stacks : 2
• Rotor Inertia : 0.076 kg.cm²
• Number Of Motor Poles : 4.0
• Back Emf Constant : 24 V/krpm 20 °C
• Maximum Axial Force Fa : 40 N
• Centring Collar Depth : 3 mm
• Holding Brake : with
• Shaft Length : 25 mm
• Brake Pull-In Power : 4.35 W
• Phase : three phase || single phase
• Maximum Current Irms : 2.65 A LXM28... 0.1 kW, 220 V || 2.65 A LXM28... 0.1 kW, 110 V
• Length : 130 mm
• Net Weight : 0.77 kg
• Sizing Reference : BCH2
• Centring Collar Diameter : 30 mm
• Stator Inductance : 20.6 mH 20 °C
• Motor Flange Size : 40 mm
• [Us] Rated Supply Voltage : 220 V || 110 V
• Nominal Output Power : 100 W LXM26D 0.9 A, 220 V, single phase || 100 W LXM26D 0.9 A, 220 V, three phase || 100 W LXM28... 0.9 A, 220 V, single phase || 100 W LXM28... 0.9 A, 220 V, three phase || 100 W LXM28... 1.8 A, 110 V, single phase
• Peak Stall Torque : 0.96 N.m LXM26D 0.9 A, 220 V, single phase || 0.96 N.m LXM26D 0.9 A, 220 V, three phase || 0.96 N.m LXM28... 0.9 A, 220 V, single phase || 0.96 N.m LXM28... 0.9 A, 220 V, three phase || 0.96 N.m LXM28... 1.8 A, 110 V, single phase
• Number Of Mounting Holes : 4
• Distance Shaft Shoulder-Flange : 3 mm
• Shaft Diameter : 8 mm
• Key Width : 3 mm
• Mounting Holes Diameter : 4.5 mm
• Type Of Cooling : natural convection
• Accuracy Error [Angular] : 0.044 °
• Shaft End : keyed
• Nominal Speed : 3000 rpm LXM26D 0.9 A, 220 V, single phase || 3000 rpm LXM26D 0.9 A, 220 V, three phase || 3000 rpm LXM28... 0.9 A, 220 V, single phase || 3000 rpm LXM28... 0.9 A, 220 V, three phase || 3000 rpm LXM28... 1.8 A, 110 V, single phase
• Feedback Type : 20 bits single turn absolute encoder
• Stator Resistance : 23.4 Ohm 20 °C
• Continuous Stall Current : 0.81 A
• Nominal Torque : 0.32 N.m LXM26D 0.9 A, 220 V, single phase || 0.32 N.m LXM26D 0.9 A, 220 V, three phase || 0.32 N.m LXM28... 0.9 A, 220 V, single phase || 0.32 N.m LXM28... 0.9 A, 220 V, three phase || 0.32 N.m LXM28... 1.8 A, 110 V, single phase
• Temperature Magnet Rt : 20 °C
• Network Number Of Phases : 1
• Torque Constant : 0.4 N.m/A 20 °C
• Continuous Stall Torque : 0.32 N.m LXM26D 0.9 A, 220 V, single phase || 0.32 N.m LXM26D 0.9 A, 220 V, three phase || 0.32 N.m LXM28 0.9 A, 220 V, single phase || 0.32 N.m LXM28 0.9 A, 220 V, three phase || 0.32 N.m LXM28 1.8 A, 110 V, single phase
• Temperature Copper Hot : 135 °C
• Specifications
• Country of Origin : China
• Length : 130 mm
• Width : 3 mm
• Weight : 0.77 kg
• Product Or Component Type : servo motor
• Range Compatibility : Lexium 28
• Device Short Name : BCH2
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1504002EN
• Packaging Without Single Use Plastic : No
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI1504002EN
• Take-Back : No
• Pvc Free : Yes
• Global Warming ; Total Life Cycle​ : 1 077 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1077.0794818732
• Environment
• Ambient Air Temperature For Operation : 0-40 °C
• Ip Degree Of Protection : IP50 IM V3 || IP65 IM B5, IM V1
