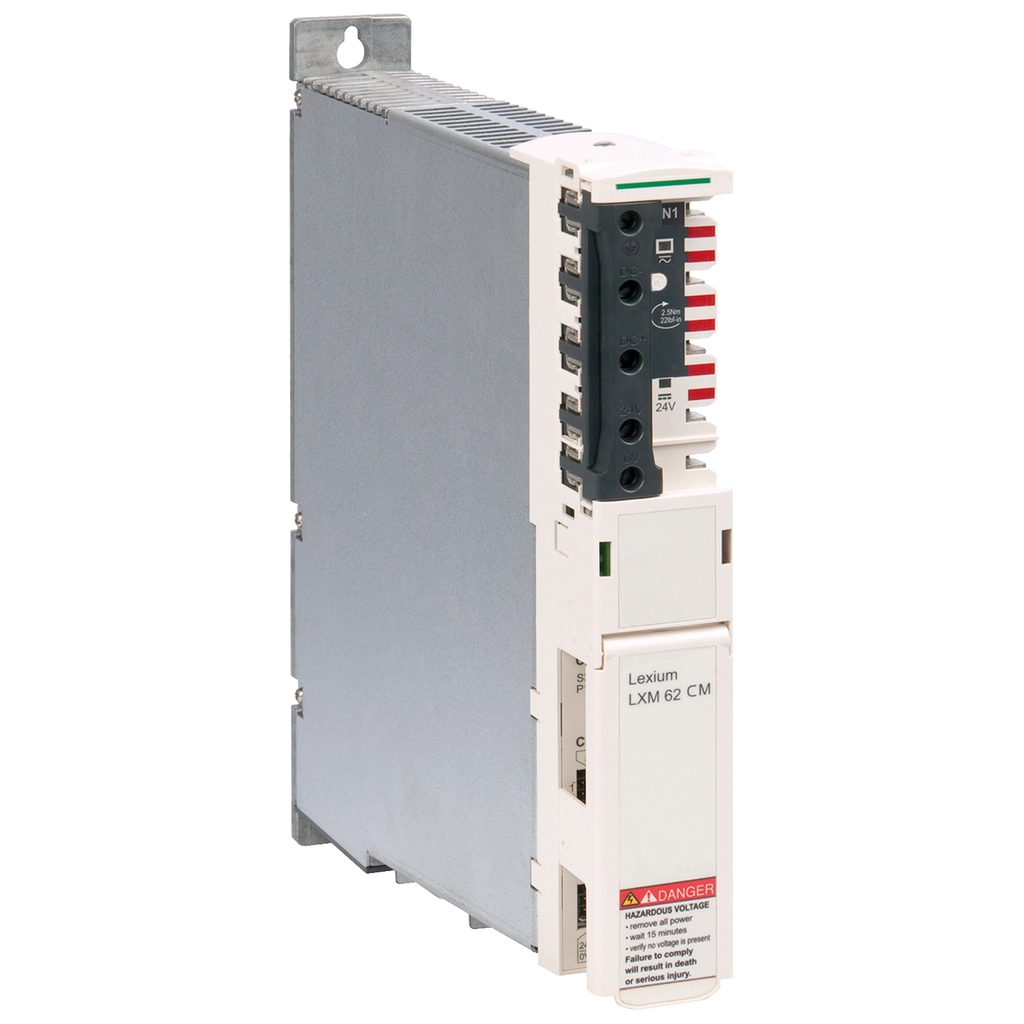

This product is part of the PacDrive 3 range, an offer of connection accessories. This connection module features SERCOS III interface. It is an integrated servo motor with a supply voltage of 250V to 700V and an input current of 20A. It is an IP20 rated product. Its dimensions are 44.5mm (width) x 270mm (depth) x 310mm (height). It weighs 3kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Pollution Degree : 2 IEC 61800-5-1
• Ip Degree Of Protection : IP20
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : No
• Environmental Disclosure : ENVPEP1407008EN
• Packaging Without Single Use Plastic : No
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI1407008EN
• Take-Back : No
• Pvc Free : Yes
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 25.3215936931
• Complementary
• Height : 310 mm
• Output Current : 20 A
• [Uc] Control Circuit Voltage : 24 V DC - 20...25 %)
• Net Weight : 3 kg
• [Us] Rated Supply Voltage : 250...700 V
• Input Current : 20 A
• Control Threshold Overvoltage : 860 V
• Physical Interface : SERCOS III
• Overvoltage Category : class 3 conforming to IEC 61800-5-1
• Type Of Cooling : natural convection
• Peak Output Current : 40 A
• Width : 44.5 mm
• Depth : 270 mm
• Specifications
• Country of Origin : United States
• Width : 44.5 mm
• Height : 310 mm
• Weight : 3 kg
• Range Of Product : PacDrive 3
• Accessory / Separate Part Category : connection accessories
• Product Or Component Type : connector module
• Device Short Name : ILM
