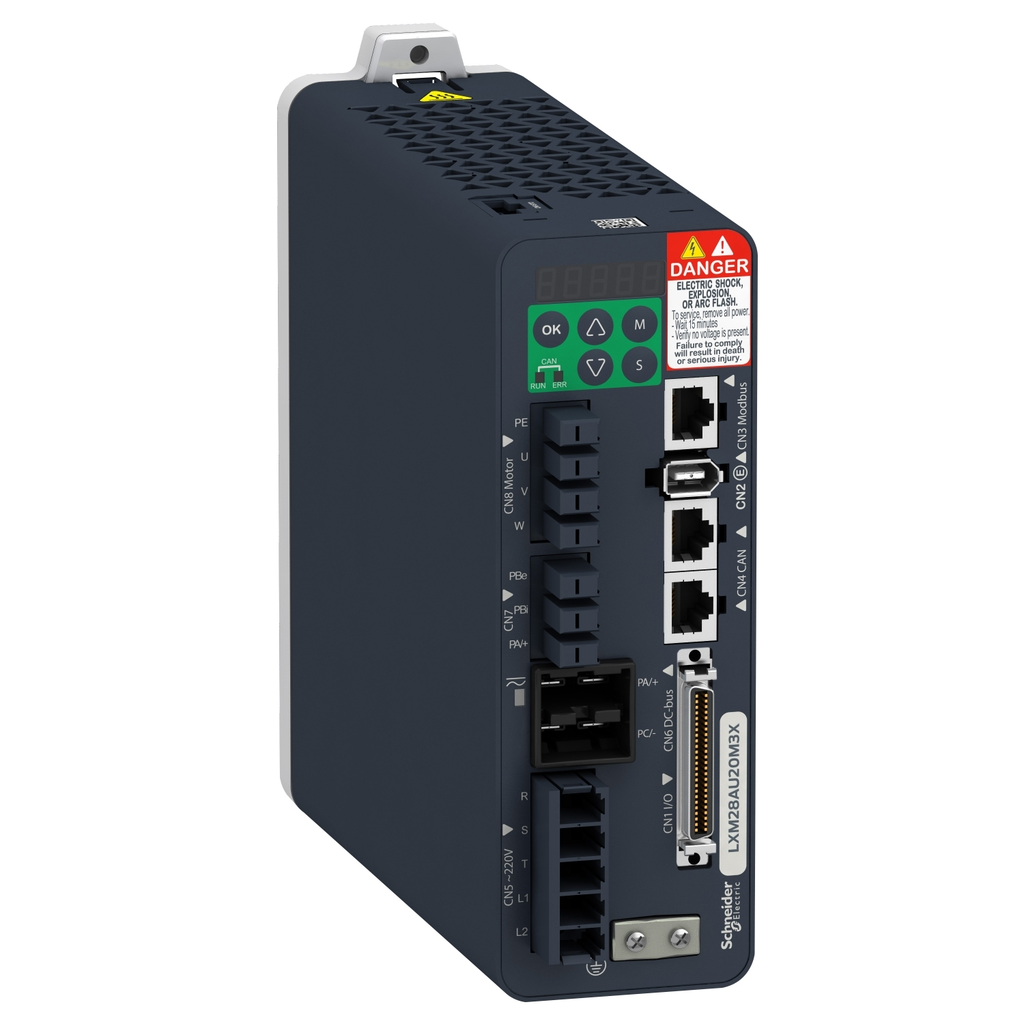

This product is part of the Lexium 28 range, an offer of servo drives from 0.05kW to 4.5kW. The motion servo drive features EMC filter, integrated CANopen, CAN motion interface 7-segment display with 5 buttons. It is a motion servo drive with a rated supply voltage of 220V (three phase), an output current of 12A, nominal power of 2kW and continuous power of 2000W. It is furnished with spring terminal for electrical connection and RJ45 connectors (CN4) for CANopen/CAN motion. There is an electrical isolation between power/control. It offers CANopen and CAN motion communication interfaces and physical interface of RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 62mm (width) x 184mm (depth) x 170mm (height). It weighs 1.7kg. It is suitable for machine control solutions. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (130mm, 4 motor stacks) at 2000W and servo motor BCH2 (100mm, 2 motor stacks) at 2000W. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Specifications
• Country of Origin : United States
• Width : 62 mm
• Height : 170 mm
• Weight : 1.7 kg
• Line Current : 8.7 A 137.1 % 220 V, three phase
• Format Of The Drive : compact housing
• Product Or Component Type : motion servo drive
• Range Of Product : Lexium 28
• Device Short Name : LXM28A
• Complementary
• [Us] Rated Supply Voltage : 200...240 V - 10...15 %)three phase
• Network Frequency : 47.5...63 Hz
• Type Of Cable : shielded motor cable 0-55 °C) copper
• Absolute Accuracy Error : 0.1 %
• Discrete Input Logic : positive or negative CN1)
• Continuous Output Current 2 : 12 A
• Continuous Output Current 3 : 12 A
• Electrical Isolation : between power and control
• Output Current 3S Peak : 36 A 220 V
• Physical Interface : RS485 Modbus Serial line slave
• Discrete Output Number : 5 logic output CN1)12...24 V DC || 1 pulse train output (PTO) CN1)
• Discrete Input Number : 8 programmable CN1) || 1 pulse train input (PTI) CN1) || 2 fast capture CN1) || 1 safety function STO CN9)
• Signalling Function : servo status and fault codes five 7-segment display units
• Connector Type : RJ45 CN4)CANopen, CANmotion
• Phase : three phase
• Net Weight : 1.7 kg
• Analogue Input Number : 2
• Switching Frequency : 8 kHz
• Discrete Output Logic : positive or negative CN1)
• Communication Iinterface : CANopen DS402 || CANmotion || pulse train output || pulse train input
• Emc Filter Compatibility : type 022
• Field Weakening : false
• Safety Function : STO (safe torque off), Integrated
• Number Of Addresses : 1-127 CANopen, CANmotion
• Maximum Leakage Current : 1.35 mA
• Width : 62 mm
• Overvoltage Category : III
• Depth : 184 mm
• Nominal Power : 2 kW 220 V 8 kHz
• Network Number Of Phases : 3
• Analogue Input Type : V_REF voltage analog input - 10...10 V 10 kOhm 14 bits || T_REF voltage analog input
• Supply Frequency : 50/60 Hz - 5...5 %
• Safety Level : SIL 2 IEC 61800-5-2 2007 || SIL 2 IEC 61508-1 2010 || PL d/category 3 ISO 13849-1 2008 || SIL 2 ISO 13849-1 2009/AC || SIL 2 IEC 60204-1 2006 || SIL 2 IEC 60204-1 2009/A1 || SIL 2 IEC 60204-1 2010/AC || SIL 2 IEC 62061 2012
• Height : 170 mm
• Product Compatibility : servo motor BCH2 130 mm, 4 2000 W || servo motor BCH2 100 mm, 2 2000 W || servo motor BCH2 180 mm, 1 2000 W
• Status Led : 1 LED (Red) charge || 1 LED (Green) RUN || 1 LED (Red) error
• Discrete Input Voltage : 24 V DC logic
• Transmission Rate : 250 kbit/s 100-250 m CANopen, CANmotion || 500 kbit/s 4-100 m CANopen, CANmotion || 1 Mbit/s 4-4 m CANopen, CANmotion
• Discrete Output Voltage : 12...24 V DC
• Marking : CE || CSA || cULus
• Output Current 3S Peak 2 : 36 A 220 V
• Output Current 3S Peak 3 : 36 A 220 V
• Communication Interface : CANopen, Integrated || CANmotion, Integrated
• Electrical Connection : spring terminal 3.3...4 mm², AWG 12 L1-L2) || spring terminal 3.3...4 mm², AWG 12 R, S, T) || spring terminal 3.3...4 mm², AWG 12 U, V, W, PE) || spring terminal 3.3...4 mm², AWG 12 PA/+, PBe)
• Supply Voltage Description : three phase 220 V AC 50...60 Hz
• Type Of Cooling : integrated fan
• Supply Voltage Limits : 200-255 V three phase
• Method Of Access : slave
• Control Signal Type : servo motor encoder feedback CN2
• Output Voltage : <= power supply voltage
• Operating Position : vertical
• Emc Filter : without EMC filter
• Continuous Output Current : 12 A 8 kHz
• Switching Frequency 2 : 8 kHz
• Protection Type : against reverse polarity inputs signal || against short-circuits outputs signal || overcurrent motor || overvoltage motor || undervoltage motor || overheating motor || overload motor || overspeed motor
• Switching Frequency 3 : 8 kHz
• Continuous Power : 2000 W 220 V
• Drive Voltage Drop Coefficient : 1
• Environment
• Product Certifications : cULus || CSA || CE
• Standards : IEC 61800-5-1
• Vibration Resistance : 3M4 3 mm 9-200 Hz)IEC 60721-3-3
• Shock Resistance : 10 gn, type I IEC 60721-3-3
• Operating Altitude : <= 3280.84 ft (1000 m) without derating || > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
• Ambient Air Temperature For Operation : 0-55 °C
• Electromagnetic Compatibility : conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
• Ambient Air Temperature For Storage : -25-65 °C
• Relative Humidity : 5-95 % without condensation
• Ip Degree Of Protection : IP20
• Environmental data
• Minimum Percentage Of Recycled Plastic Content : 0
• Take-Back : No
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 4482.1522875344
• Packaging Made With Recycled Cardboard : No
• Environmental Disclosure : ENVPEP1409001EN
• Packaging Without Single Use Plastic : No
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI1409001EN
• Pvc Free : Yes
