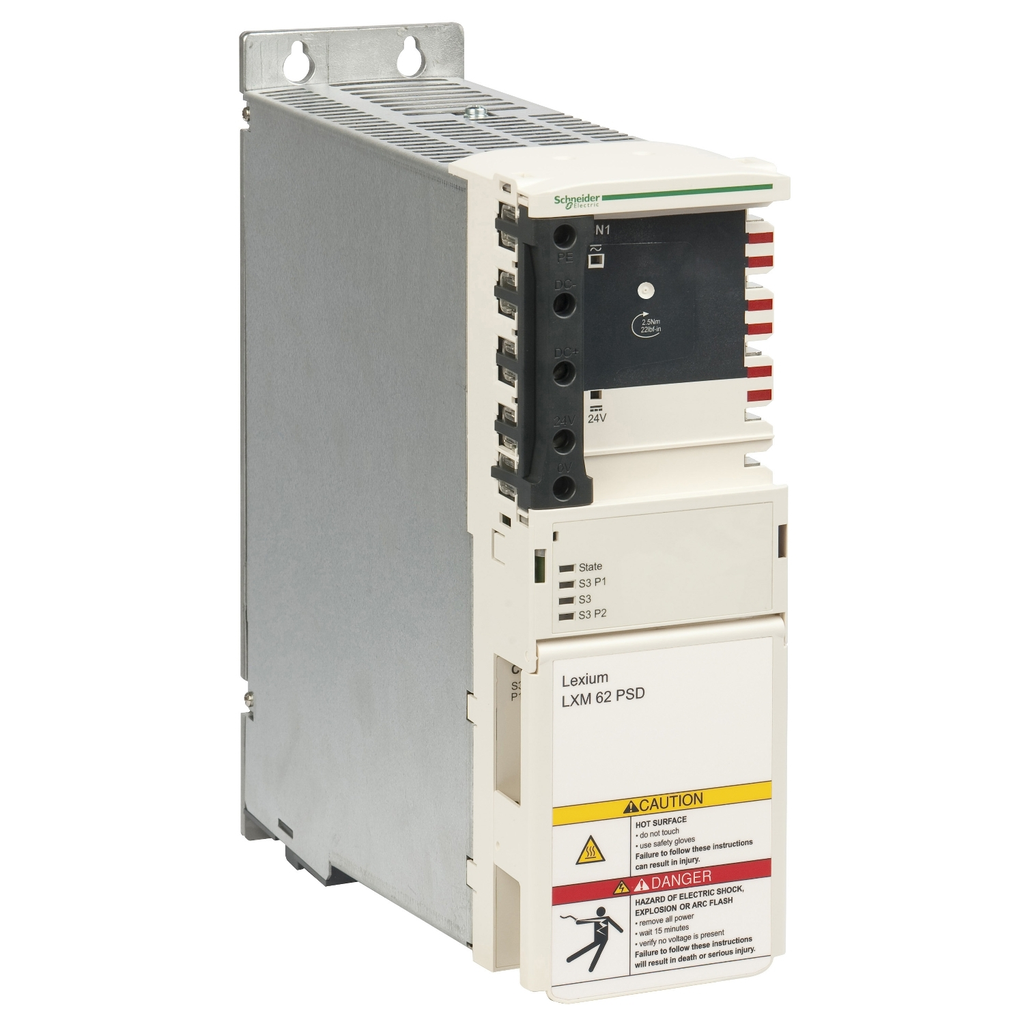

This product is part of the PacDrive 3 range, an offer of power supplies for integrated drives. The power supply module features SERCOS III communication interface. It offers 2 relay outputs for volt-free contacts. It is a power supply module with a rated supply voltage of 400V three phase, 230V single/three phase and a rated supply current of 21A single phase, 42A three phase AC. It is an IP20 rated product. Its dimensions are 89.5mm (width) x 270mm (depth) x 310mm (height). It weighs 6.3kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. This product is certified by CSA and UL. It meets EN/IEC 61800-5-1, EN/IEC 61800-3 and UL 508C standards. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Line Rated Current : 21 A single phase AC, 42 A three phase AC
• Maximum Power : 44.2 kW 400 V three phase AC, 53.2 kW 480 V three phase AC
• Uc Control Circuit Voltage : 24 V DC - 20...25 %)
• Us Rated Supply Voltage : 380...480 V three phase - 10...10 %), 208...360 V three phase - 10...10 %), 208...270 V single phase - 10...10 %)
• Maximum Braking Power : 46 kW
• Maximum Cable Capacity : 1.36 mF
• Maximum Dc Bus Voltage : 860 V
• Important Information Attributes
• Persona Type Ids : EU, OM
• Persona Type Names : End User, Original Equipment Manufacturer
• Environmental Characteristic : 3K3 IEC 60721-3-3 5-85 %
• Nominal Power : 22.1 kW 400 V three phase AC, 26.6 kW 480 V three phase AC
• Overvoltage Category : III conforming to IEC 61800-5-1
• Peak Current : 42 A single phase AC 1 s, 84 A three phase AC 1 s
• Safety Level : can reach SIL 2 IEC 61508, can reach PL d/category 3 ISO 13849-1
• Shock Resistance : 100 m/s² in operation IEC 60721-3-3, 300 m/s² during transport IEC 60721-3-3
• Vibration Resistance : 10 m/s² IEC 60721-3-3
• Carbon Footprint Of The Distribution Phase A4 : 0.9567, 1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 3 kg CO2 eq., 3.4335
• Carbon Footprint Of The Installation Phase A5 : 0, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 54 kg CO2 eq., 53.673
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 4 326 kg CO2 eq., 4326.3
• Certificate Agency : CSA, UL
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Device Type : Motion - drive & motor
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 53.673
• Distribution Carbon Footprint : 0.9567
• Use Carbon Footprint : 4326.3
• End Of Life Carbon Footprint : 3.4335
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1406028EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1901
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 3
• Tier : 3
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Braking Resistance : 15 Ohm
• Bus Voltage : 270-700 V
• Component Name : LXM62
• Holding Time : 15 min
• Marking : CE
• Permanent Braking Power : 400 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : power supply
• Range Of Product : PacDrive 3
• Returnability : Yes
• Software Version : EIME v5.8.1
• Supply Circuit Type : AC
• Supply Frequency : 50/60 Hz +/- 5 %
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 4 384 kg CO2 eq.
• Accessory Separate Part Category : power supply
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 4384.3
• Warranty In Months : 18
• Pep Code : ENVPEP1406028EN
• Database Version : 2016-11
• Pep Verification Date : 2020-08-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• Data Source : referent product
• Functional-unit Description : Tu supply the connected servo converters up to 128W during 10 years and a 80% use rate.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 8830.08
• Energy Model - Manufacturing [A1-a3] : Energy model used: Germany
• Energy Model - Installation [A5] : Electricity mix; AC; < 1kV; EU-27
• Energy Model - Use [B6] : Electricity mix; AC; < 1kV; EU-27
• Energy Model - End Of Life [C1-c4] : Electricity mix; AC; < 1kV; EU-27
• Offer Owner Code : 190786
• Pn : 1
• Height Nominal : 310 mm
• Width Nominal : 89.5 mm
• Acidification Of Soil And Water (Kg.Equivalent.So2) Total Life Cycle : 18.19
• Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6] : 18.046
• Air Pollution (M3) Total Life Cycle : 197440
• Air Pollution (M3) Manufacturing [A1-a3] : 11102
• Air Pollution (M3) Distribution [A4] : 40.697
• Air Pollution (M3) Operational Energy Use [B6] : 186200
• Air Pollution (M3) End Of Life [C1-c4] : 97.583
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle : 49639
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 508.25
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4] : 13.441
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] : 49107
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] : 11.054
• Global Warming (Kg.Equivalent.Co2) Total Life Cycle : 4384.3
• Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] : 53.673
• Global Warming (Kg.Equivalent.Co2) Distribution [A4] : 0.9567
• Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] : 4326.3
• Global Warming (Kg.Equivalent.Co2) End Of Life [C1-c4] : 3.4335
• Hazardous Waste Disposed Of (Kg) Total Life Cycle : 134.45
• Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 119.95
• Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 2.2554
• Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] : 12.245
• Materials For Recycling (Kg) Total Life Cycle : 5.0568
• Materials For Recycling (Kg) End Of Life [C1-c4] : 4.5008
• Net Use Of Fresh Water (M3) Total Life Cycle : 15686
• Net Use Of Fresh Water (M3) Operational Energy Use [B6] : 15686
• Non-hazardous Waste Disposed Of (Kg) Total Life Cycle : 16157
• Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 27.219
• Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] : 16130
• Photochemical Ozone Formation (Kg.Equivalent.C2h4) Total Life Cycle : 1.0067
• Photochemical Ozone Formation (Kg.Equivalent.C2h4) Operational Energy Use [B6] : 0.9916
• Radioactive Waste Disposed Of (Kg) Total Life Cycle : 10.795
• Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6] : 10.773
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 76402
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 956.88
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4] : 13.509
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 75418
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] : 13.638
• Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle : 87429
• Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 996.95
• Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4] : 13.527
• Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] : 86405
• Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] : 13.652
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle : 11027
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 40.072
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] : 10987
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 37.584
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 37.584
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 76364
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 919.3
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4] : 13.509
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 75418
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] : 13.638
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 21.872
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 21.872
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 11005
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 18.2
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] : 10987
• Use Of Secondary Materials (Kg) Total Life Cycle : 1.2857
• Use Of Secondary Materials (Kg) Manufacturing [A1-a3] : 1.2857
• Water Eutrophication (Kg.Equivalent.P04 3-) Total Life Cycle : 1.1416
• Water Eutrophication (Kg.Equivalent.P04 3-) Operational Energy Use [B6] : 1.0896
• Water Pollution (M3) Total Life Cycle : 184160
• Water Pollution (M3) Manufacturing [A1-a3] : 5274.2
• Water Pollution (M3) Distribution [A4] : 157.33
• Water Pollution (M3) Operational Energy Use [B6] : 178520
• Water Pollution (M3) End Of Life [C1-c4] : 212.77
• Environment Attributes Main
• Ambient Air Temperature For Operation : 40-55 °C (with current derating of 2 % per °C), 5-40 °C
• Ambient Air Temperature For Storage : -25-55 °C, -25-55 °C
• Ip Degree Of Protection : IP20 IEC 60721-3-3 with plugged-in connectors)
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 4384.3
• Circularity Profile : ENVEOLI1406028EN
• Environmental Disclosure : ENVPEP1406028EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1406028EN
• Pep Verification Date : 2020-08-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0010-ed1.1-EN-2015 10 16
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : power supply
• Range Of Product : PacDrive 3
• ETIM
• ETIM 8 : EC002541
• ETIM 9 : EC002541
• Output Attributes
• Output Type : 2 relays volt-free contacts
• Power Supply Output Current : 84 A
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, Germany, France, Mexico, United States
• Depth : 270 mm
