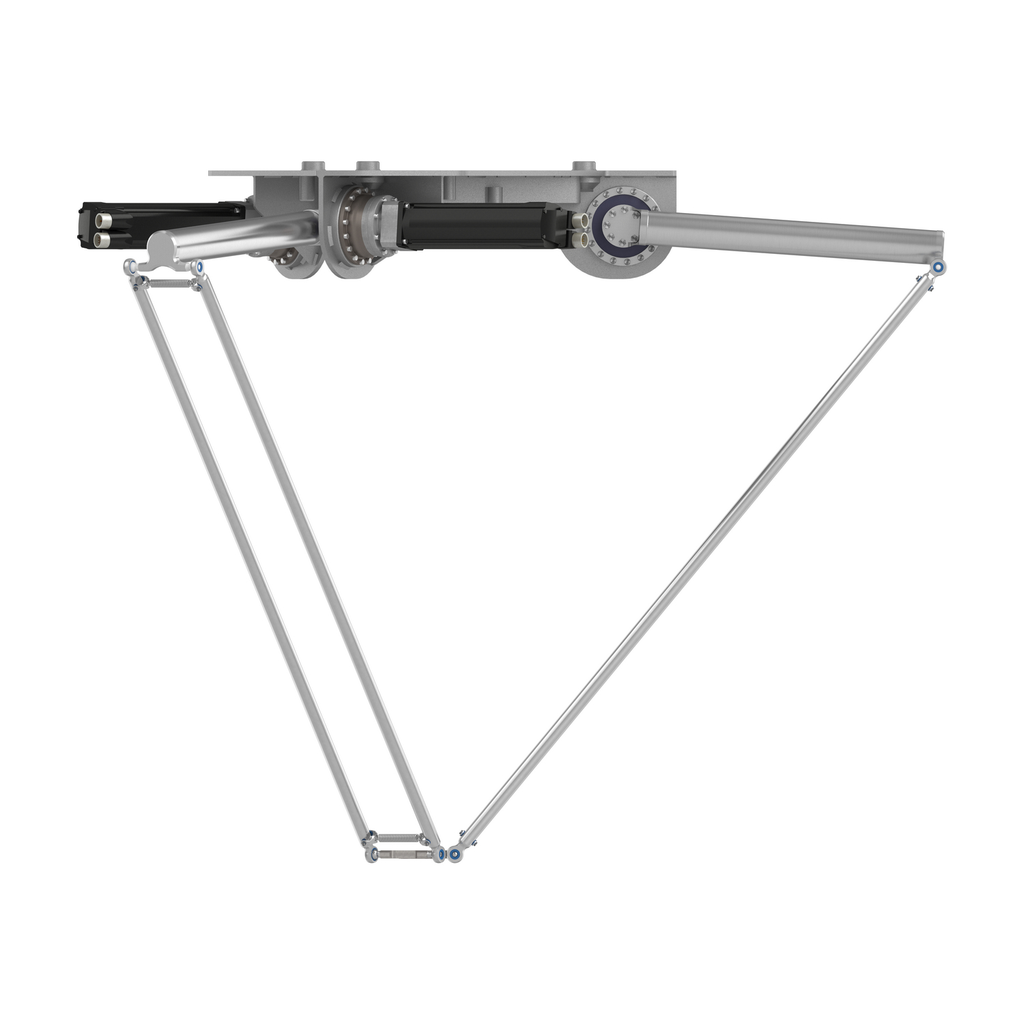

Delta 3 robot; P6; 3 to 5 axis; 10 kg permissible load(15 kg with restrictions); 0 to 1600 mm working envelop

DELTA 3 ROBOT, P6, 3-5 AXIS, 1

SQDVRKP6S0FNC00000 VRKP6S0FNC00000 3606485446509
60792.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Delta 3 robot; P6; 3 to 5 axis; 10 kg permissible load(15 kg with restrictions); 0 to 1600 mm working envelop-1
This product is part of the Lexium T, P range, an offer of Delta robots for pick and place solutions. The Delta 3 robot in a compact design which provides 3 to 4 axes. Its permanent permissible load reaches 10kg. It has a 1600mm working envelop. This pick and place robot features 0mm to 1600mm diameter, 0mm to 550mm vertical work envelopes. It offers permanent permissible load of 10kg. It has stainless steel construction. It weighs 80kg. It is suitable for general machine control, packaging machine automation and material handling applications. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. It is compatible with Lexium SH3 motors. Lexium T, P delta robots for pick and place solutions. Lexium Delta 2 and Delta 3 robots are designed for fast pick-and-place with payloads of up to 60kg (Delta 2) and 15kg (Delta 3).
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Lexium T, P range, an offer of Delta robots for pick and place solutions. The Delta 3 robot in a compact design which provides 3 to 4 axes. Its permanent permissible load reaches 10kg. It has a 1600mm working envelop. This pick and place robot features 0mm to 1600mm diameter, 0mm to 550mm vertical work envelopes. It offers permanent permissible load of 10kg. It has stainless steel construction. It weighs 80kg. It is suitable for general machine control, packaging machine automation and material handling applications. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. It is compatible with Lexium SH3 motors. Lexium T, P delta robots for pick and place solutions. Lexium Delta 2 and Delta 3 robots are designed for fast pick-and-place with payloads of up to 60kg (Delta 2) and 15kg (Delta 3).
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 29774.952547878
    • Circularity Profile : ENVEOLI1503015EN
    • Environmental Disclosure : ENVPEP1503015EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1503015EN
    • Pep Verification Date : 2020-12-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Operating Travel : 0-1600 mm diameter, 0-550 mm vertical
    • Permanent Permissible Load : 0-10 kg 0-400 mm 550 mm, 0-15 kg 0-400 mm 550 mm, 0-10 kg 0-600 mm 550 mm, 0-15 kg 0-600 mm 550 mm, 0-10 kg 0-800 mm 550 mm, 0-15 kg 0-800 mm 550 mm, 0-10 kg 0-1000 mm 550 mm, 0-15 kg 0-1000 mm 550 mm, 0-10 kg 0-1200 mm 550 mm, 0-15 kg 0-1200 mm 550 mm, 0-10 kg 0-1400 mm 550 mm, 0-15 kg 0-1400 mm 550 mm, 0-10 kg 0-1600 mm 550 mm, 0-15 kg 0-1600 mm 550 mm
    • Carbon Footprint Of The Distribution Phase A4 : 9.6769230769, 10 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 5 kg CO2 eq., 5.1313461538
    • Carbon Footprint Of The Installation Phase A5 : 1.5427884615, 2 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 328 kg CO2 eq., 327.5865384615
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 29 431 kg CO2 eq., 29431.0149517241
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : Motion - drive & motor
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1503015EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Design : compact
    • Device Short Name : P6
    • Package Weight Lbs : 75.0 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : delta 3 robot
    • Range Compatibility : Lexium SH3 motor
    • Range Of Product : Lexium P, T
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 29 775 kg CO2 eq.
    • Variant : no washdown
    • Vertical Distance : 0-550 mm
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1503015EN
    • Pep Verification Date : 2020-12-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To form a system with 3 or 4-axis for ``pick and place´´ applications 85% of the time for 10 years
    • Functional Unit Unit : unité (unit)
    • Product Kit Identifier : N
    • Product Manager : ERDEM DANACI
  • General Attributes
    • Product Or Component Type : delta 3 robot
    • Range Of Product : Lexium P, T
  • Complementary Attributes
    • Maximum Acceleration : 80 m/s² at 1 kg, 60 m/s² at 1.5 kg
