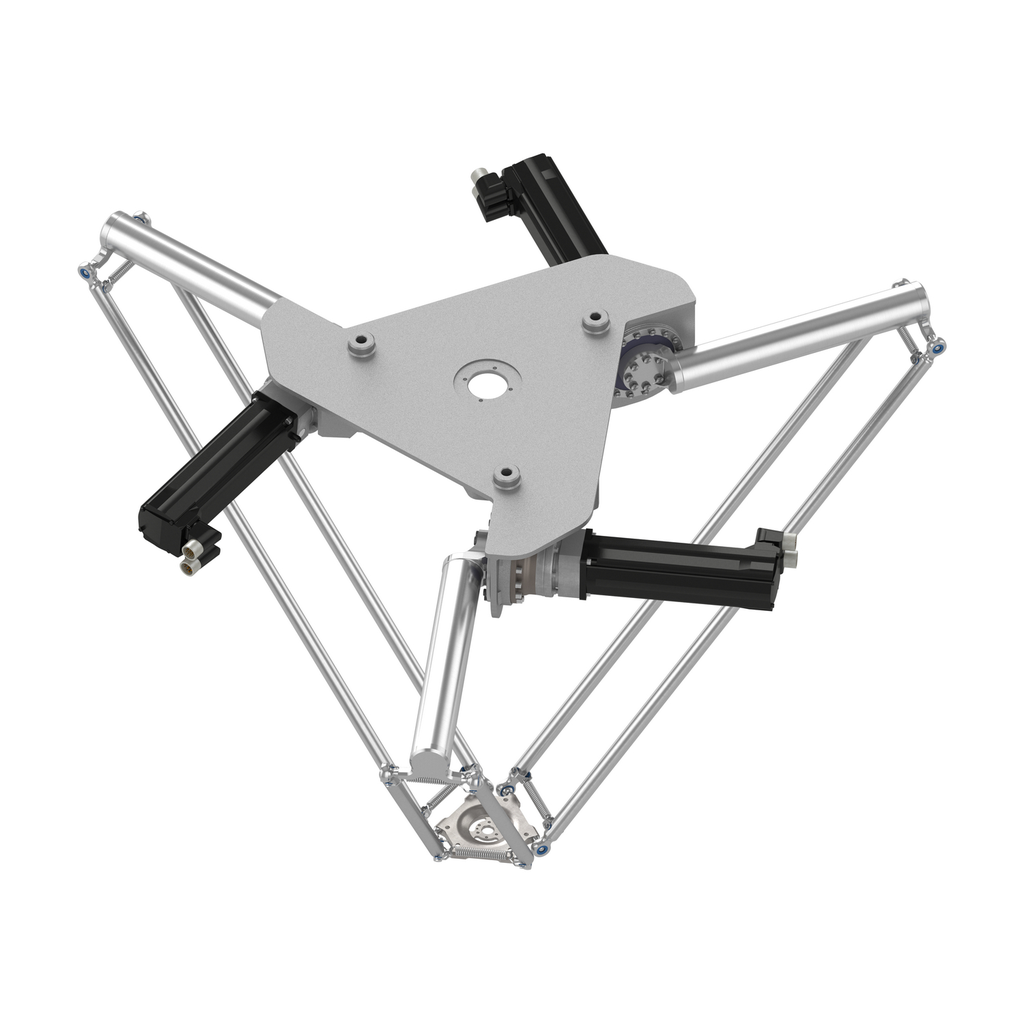

Delta 3 robot, P4, 3-5 axis, 15 kg permissible load, 0-1200 mm working envelop

DELTA 3 ROBOT, P4, 3-5 AXIS, 1

SQDVRKP4S0FNC00000 VRKP4S0FNC00000 SQDVRKP4S0FNC00000
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Delta 3 robot, P4, 3-5 axis, 15 kg permissible load, 0-1200 mm working envelop-1
  • Country of Origin: USA
  • Net Weight: 75 kg
  • Weight: 75 kg
This robot belongs to Lexium T- P, which is figuring Delta robots for pick & place solutions. This is a P4 Compact delta robot with 3 to 5 axes. Its permanent permissible load reaches 15kg. It has a 1200mm working envelop. Lexium P are Delta 3 robots designed for fast pick-and-place with payloads of up to 15kg. It has a fixed axis and is equipped with Lexium SH3 motors. It weighs 75kg. This robotics solution is an add-on to the PacDrive product line, designed to satisfy the rapidly rising demand for the integration of robots into machine design using Lexium components. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. This robot is compatible with spare parts such as motor cover, fasteners, gearbox for main axis, parallel plate, guiding tubes for telescopic axis, sealing set for cover, for motor cover, for gearboxes, ball pins and ball sockets. And more. With its PacDrive-based robotics solution, Schneider Electric has integrated Lexium T and P robots into a standard automation solution. Lexium T, P (Delta 2 and delta 3 kinematics) offers a fully integrated solution for many pick-and-place packaging and handling applications. The stainless kinematics are well suited for the food, pharma, cosmetics, and beverage industries.
QTY
  • Product Description
  • Features
  • Specifications
This robot belongs to Lexium T- P, which is figuring Delta robots for pick & place solutions. This is a P4 Compact delta robot with 3 to 5 axes. Its permanent permissible load reaches 15kg. It has a 1200mm working envelop. Lexium P are Delta 3 robots designed for fast pick-and-place with payloads of up to 15kg. It has a fixed axis and is equipped with Lexium SH3 motors. It weighs 75kg. This robotics solution is an add-on to the PacDrive product line, designed to satisfy the rapidly rising demand for the integration of robots into machine design using Lexium components. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. This robot is compatible with spare parts such as motor cover, fasteners, gearbox for main axis, parallel plate, guiding tubes for telescopic axis, sealing set for cover, for motor cover, for gearboxes, ball pins and ball sockets. And more. With its PacDrive-based robotics solution, Schneider Electric has integrated Lexium T and P robots into a standard automation solution. Lexium T, P (Delta 2 and delta 3 kinematics) offers a fully integrated solution for many pick-and-place packaging and handling applications. The stainless kinematics are well suited for the food, pharma, cosmetics, and beverage industries.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP1503015EN
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1503015EN
    • Take-Back : No
    • Pvc Free : Yes
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 29729.0942017241
  • Specifications
    • Country of Origin : United States
    • Weight : 75 kg
    • Range Of Product : Lexium P, T
    • Product Or Component Type : delta 3 robot
    • Design : compact
    • Device Short Name : P4
  • Complementary
    • Repeat Accuracy : 0.1 mm
    • Net Weight : 75 kg
    • Operating Travel : 0-1200 mm diameter || 0-425 mm vertical
    • Number Of Axis : 3-3
    • Maximum Actuation Speed : 10 m/s
    • Range Compatibility : Lexium SH3 motor
    • Maximum Acceleration : 100 m/s² at 1 kg || 75 m/s² at 1.5 kg
    • Permanent Permissible Load : 15 kg
  • Environment
    • Environmental Characteristic : normal environment
