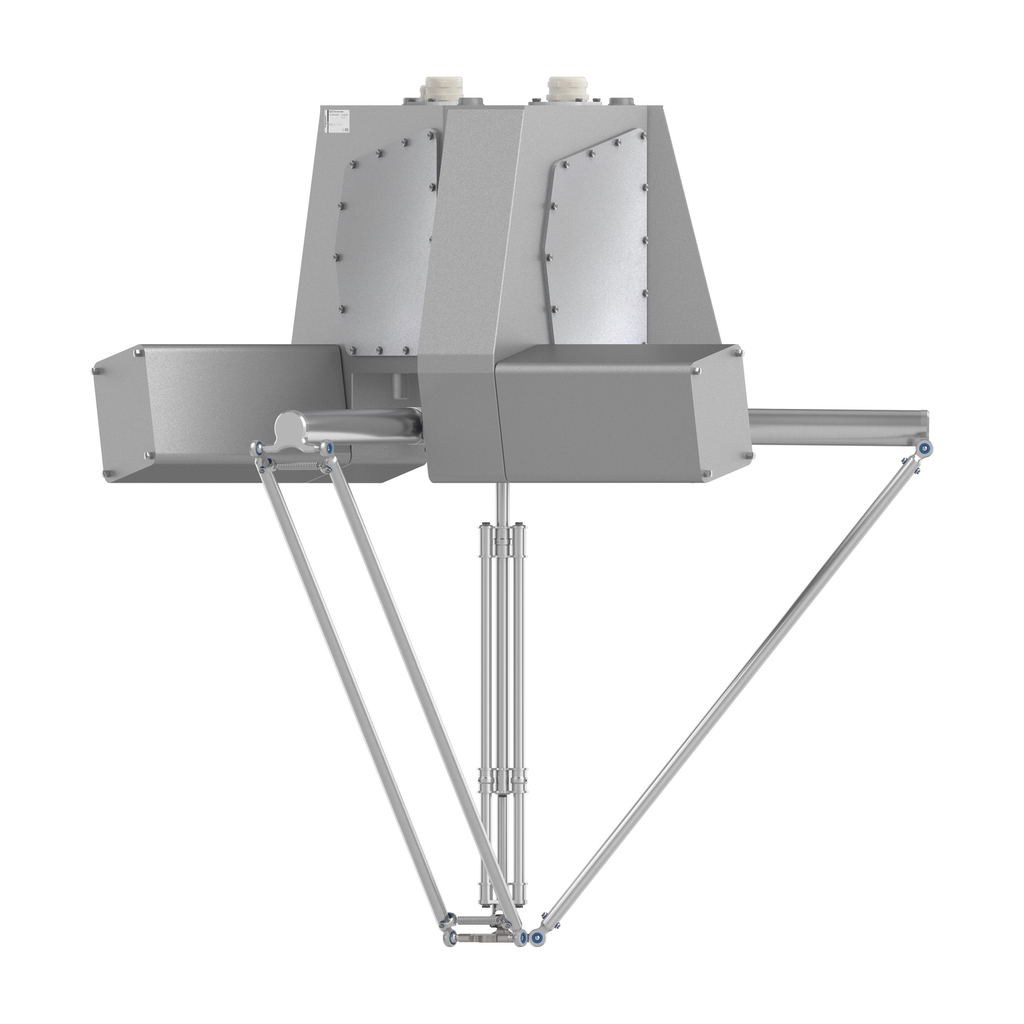

This product is part of the Lexium T, P range, an offer of Delta robots for pick and place solutions. The Delta 3 robot in a standard design which provides 3 to 4 axes. Its permanent permissible load reaches 15kg. It has a 1200mm working envelop. This pick and place robot features 0mm to 1200mm diameter, 0mm to 425mm vertical work envelopes and rotational 360° operating position. It offers permanent permissible load of 15kg and maximum actuation speed of 10m/s. It has stainless steel construction. It weighs 120kg. It is suitable for general machine control, packaging machine automation and material handling applications. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. It is compatible with Lexium SH3 motors. Lexium T, P delta robots for pick and place solutions. Lexium Delta 2 and Delta 3 robots are designed for fast pick-and-place with payloads of up to 60kg (Delta 2) and 15kg (Delta 3).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Acceleration : 100 m/s² at 1 kg, 75 m/s² at 1.5 kg
• Maximum Actuation Speed : 10 m/s
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Environmental Characteristic : normal environment, high pressure cleaner, dust pollution resistance
• Operating Travel : 0-1200 mm diameter, 0-425 mm vertical
• Permanent Permissible Load : 0-15 kg 0-400 mm 425 mm, 0-10 kg 0-600 mm 425 mm, 0-15 kg 0-600 mm 425 mm, 0-10 kg 0-800 mm 425 mm, 0-10 kg 0-1000 mm 425 mm, 0-15 kg 0-1000 mm 425 mm, 0-10 kg 0-1200 mm 425 mm, 0-15 kg 0-1200 mm 425 mm, 0-0-10 kg 0-400 mm 425 mm, 15 kg
• Carbon Footprint Of The Distribution Phase A4 : 17.676, 18 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 12 kg CO2 eq., 12.445
• Carbon Footprint Of The Installation Phase A5 : 2.2975, 2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 692 kg CO2 eq., 691.93
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 35 591 kg CO2 eq., 35590.719929222
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Device Type : Motion - drive & motor
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 691.93
• Distribution Carbon Footprint : 17.676
• Installation Carbon Footprint : 2.2975
• End Of Life Carbon Footprint : 12.445
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1602014EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1901
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 3
• Tier : 3
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Product Kit Identifier : N
• Design : standard
• Device Composition : with motor
• Device Short Name : P4
• Number Of Axis : 3-3
• Operating Position : rotational 360°
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : delta 3 robot
• Range Of Product : Lexium P, T
• Repeat Accuracy : 0.1 mm
• Returnability : Yes
• Software Version : EIME v5.6.0.1
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 36 315 kg CO2 eq.
• Vertical Distance : 0-425 mm
• Number Of Arms : 3
• Warranty In Months : 18
• Pep Code : ENVPEP1602014EN
• Database Version : 2016-11
• Pep Verification Date : 2020-11-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : To form a system with 3 or 4-axis for ``pick and place´´ applications 85% of the time for 10 years
• Functional-unit Quantity : 1
• Functional-unit Unit : unité (unit)
• Reference Lifetime, In Y : 10
• Energy Consumption On Product Lifetime, In Kwh : 72640.734
• Energy Model - Manufacturing [A1-a3] : Energy model used: Germany
• Energy Model - Installation [A5] : Electricity mix; AC; < 1kV; EU-27
• Energy Model - Use [B6] : Electricity mix; AC; < 1kV; EU-27
• Energy Model - End Of Life [C1-c4] : Electricity mix; AC; < 1kV; EU-27
• Acidification Of Soil And Water (Kg.Equivalent.So2) Manufacturing [A1-a3] : 1.6291
• Air Pollution (M3) Manufacturing [A1-a3] : 131360
• Air Pollution (M3) Distribution [A4] : 751.92
• Air Pollution (M3) Installation [A5] : 175.3
• Air Pollution (M3) End Of Life [C1-c4] : 1164.2
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 6427.5
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4] : 248.33
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5] : 26.558
• Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] : 131.73
• Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] : 691.93
• Global Warming (Kg.Equivalent.Co2) Distribution [A4] : 17.676
• Global Warming (Kg.Equivalent.Co2) Installation [A5] : 2.2975
• Global Warming (Kg.Equivalent.Co2) End Of Life [C1-c4] : 12.445
• Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 4770.5
• Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] : 137.77
• Materials For Recycling (Kg) Total Life Cycle : 118.071
• Materials For Recycling (Kg) Manufacturing [A1-a3] : 11.217
• Materials For Recycling (Kg) Installation [A5] : 23.033
• Materials For Recycling (Kg) End Of Life [C1-c4] : 83.821
• Net Use Of Fresh Water (M3) Manufacturing [A1-a3] : 8.3642
• Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 299.59
• Non-hazardous Waste Disposed Of (Kg) Installation [A5] : 10.025
• Non-hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] : 0.5065
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 9513.8
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4] : 249.59
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5] : 27.598
• Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] : 165.87
• Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 10026
• Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4] : 249.93
• Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5] : 27.913
• Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] : 166.05
• Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 512.28
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 671.62
• Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 671.62
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 8842.2
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4] : 249.59
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] : 27.598
• Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] : 165.87
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 386.82
• Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 386.82
• Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 125.45
• Use Of Secondary Materials (Kg) Total Life Cycle : 9.9252
• Use Of Secondary Materials (Kg) Manufacturing [A1-a3] : 9.9252
• Water Pollution (M3) Manufacturing [A1-a3] : 41227
• Water Pollution (M3) Distribution [A4] : 2906.8
• Water Pollution (M3) Installation [A5] : 309.69
• Water Pollution (M3) End Of Life [C1-c4] : 2801.2
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 36315.068429222
• Circularity Profile : ENVEOLI1602014EN
• Environmental Disclosure : ENVPEP1602014EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Product Compatibility : SH3 motors
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1602014EN
• Pep Verification Date : 2020-11-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : delta 3 robot
• Range Of Product : Lexium P, T
• ETIM
• ETIM 8 : EC003245
• ETIM 9 : EC003245
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Germany
