SQUARE D

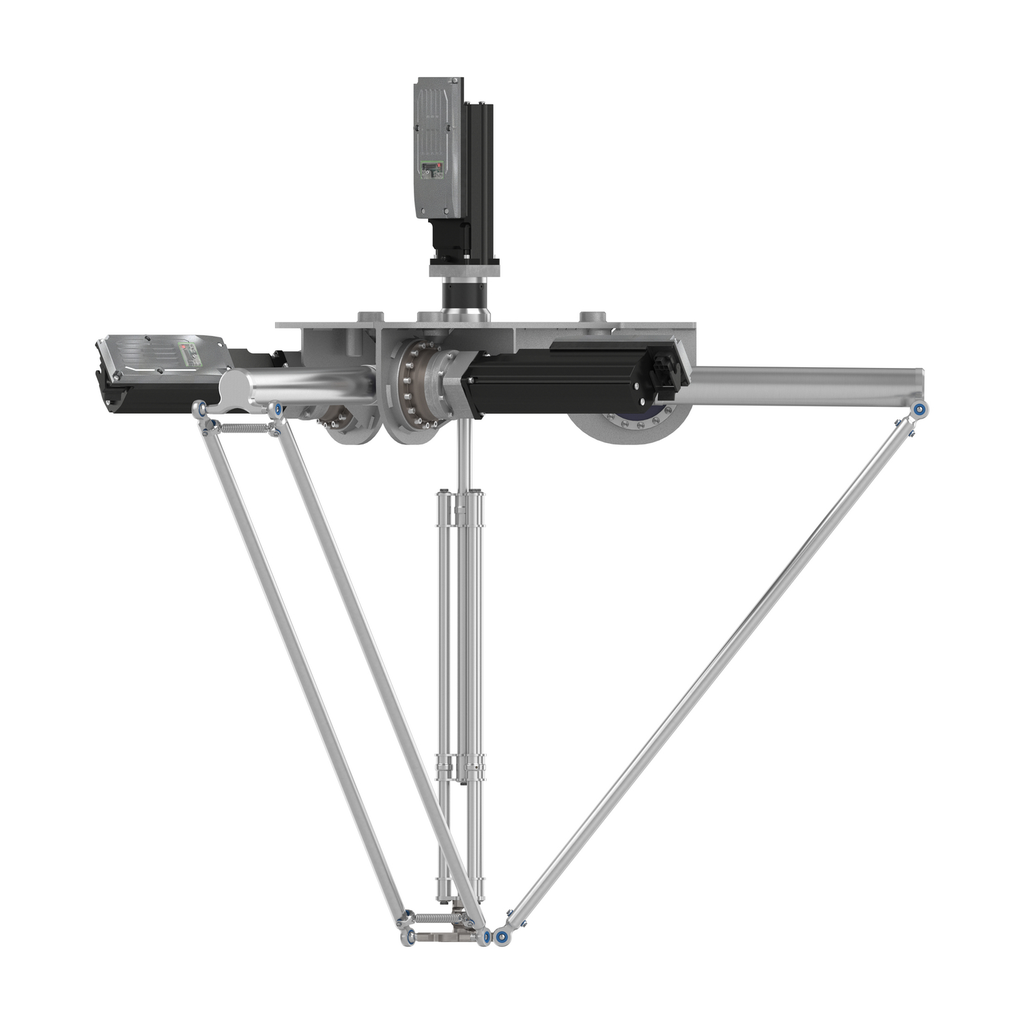

Delta 3 robot; P4; 3 to 4 axis; 15 kg permissible load; 0 to 1200 mm working envelop

DELTA 3 ROBOT, P4, 3-4 AXIS, 1

SQDVRKP4L0RNC00000 VRKP4L0RNC00000 SQDVRKP4L0RNC00000
0.00 / EA
http://schema.org/OutOfStock

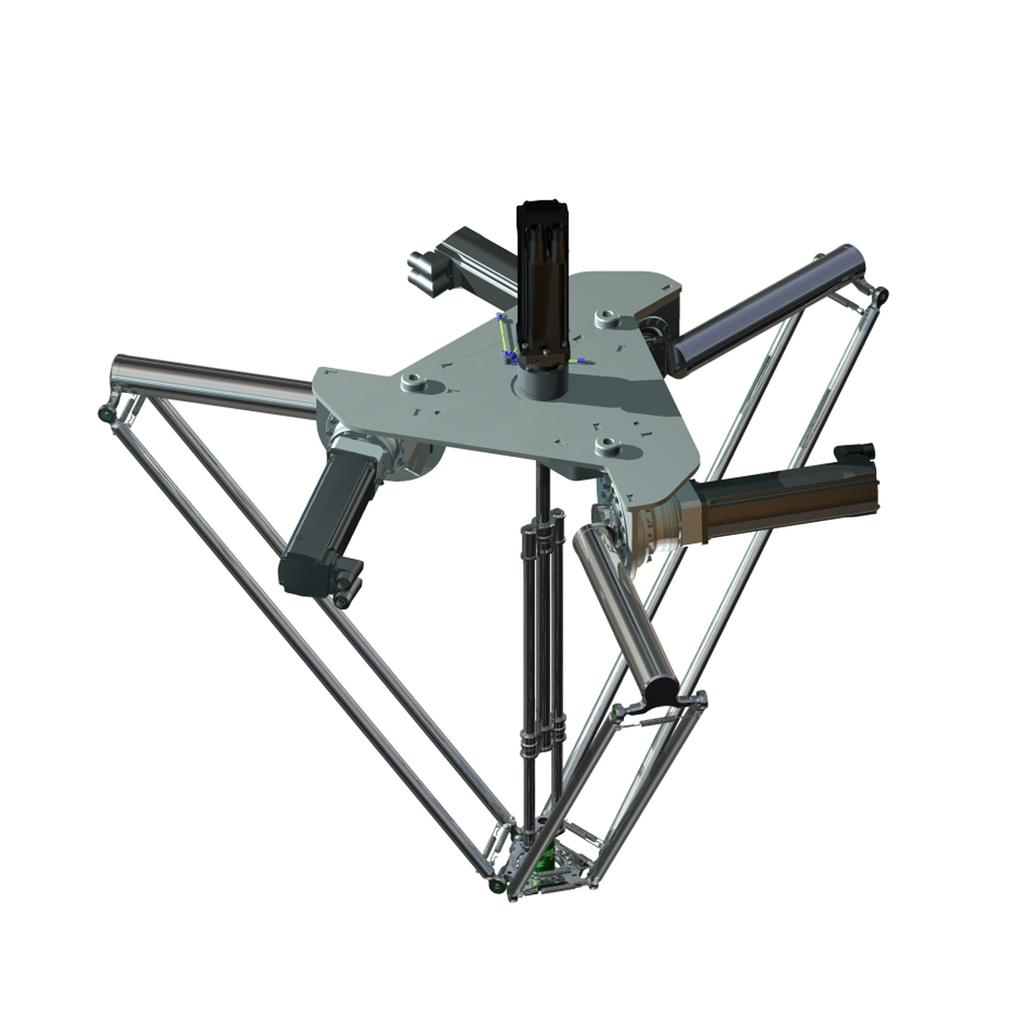

Mayer-DDS-Delta 3 robot; P4; 3 to 4 axis; 15 kg permissible load; 0 to 1200 mm working envelop-1
  • Country of Origin: Germany
  • Operating Position: 360 °
This robot belongs to Lexium T- P, which is figuring Delta robots for pick & place solutions. This is a P4 Compact delta robot with 3 to 5 axes. Its permanent permissible load reaches 15kg. It has a 1200mm working envelop. Lexium P are Delta 3 robots designed for fast pick-and-place with payloads of up to 15kg. It has a rotational axis and is equipped with Lexium 62 ILM integrated drives. It weighs 75kg. This robotics solution is an add-on to the PacDrive product line, designed to satisfy the rapidly rising demand for the integration of robots into machine design using Lexium components. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. This robot is compatible with spare parts such as motor cover, fasteners, gearbox for main axis, parallel plate, guiding tubes for telescopic axis, sealing set for cover, for motor cover, for gearboxes, ball pins and ball sockets. And more. With its PacDrive-based robotics solution, Schneider Electric has integrated Lexium T and P robots into a standard automation solution. Lexium T, P (Delta 2 and delta 3 kinematics) offers a fully integrated solution for many pick-and-place packaging and handling applications. The stainless kinematics are well suited for the food, pharma, cosmetics, and beverage industries.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Acceleration : 100 m/s² at 1 kg, 75 m/s² at 1.5 kg
    • Maximum Actuation Speed : 10 m/s
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Operating Travel : 0-1200 mm diameter, 0-425 mm vertical
    • Permanent Permissible Load : 0-15 kg 0-400 mm 425 mm, 0-10 kg 0-600 mm 425 mm, 0-15 kg 0-600 mm 425 mm, 0-10 kg 0-800 mm 425 mm, 0-10 kg 0-1000 mm 425 mm, 0-15 kg 0-1000 mm 425 mm, 0-10 kg 0-1200 mm 425 mm, 0-15 kg 0-1200 mm 425 mm, 0-0-10 kg 0-400 mm 425 mm, 15 kg
    • Carbon Footprint Of The Distribution Phase A4 : 10.064, 10 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 5 kg CO2 eq., 5.3366
    • Carbon Footprint Of The Installation Phase A5 : 1.6045, 2 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 341 kg CO2 eq., 340.69
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 35 232 kg CO2 eq., 35231.6801511573
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 2
    • Device Type : Motion - robotics
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Manufacturing Carbon Footprint : 340.69
    • Distribution Carbon Footprint : 10.064
    • Installation Carbon Footprint : 1.6045
    • End Of Life Carbon Footprint : 5.3366
    • Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1503015EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2010
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 3
    • Tier : 3
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Design : compact
    • Device Composition : with motor
    • Device Short Name : P4
    • Environmental Characteristic : normal environment
    • Number Of Axis : 3-3
    • Operating Position : rotational 360°
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : delta 3 robot
    • Range Of Product : Lexium P, T
    • Repeat Accuracy : 0.1 mm
    • Returnability : Yes
    • Software Version : EIME v5.6.0.1
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 35 589 kg CO2 eq.
    • Vertical Distance : 0-425 mm
    • Number Of Arms : 3
    • Warranty In Months : 18
    • Pep Code : ENVPEP1503015EN
    • Database Version : 2016-11
    • Pep Verification Date : 2020-12-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional-unit Description : To form a system with 3 or 4-axis for ``pick and place´´ applications 85% of the time for 10 years
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unité (unit)
    • Reference Lifetime, In Y : 10
    • Energy Consumption On Product Lifetime, In Kwh : 71910.4
    • Energy Model - Manufacturing [A1-a3] : Energy model used: Germany
    • Energy Model - Installation [A5] : Electricity mix; AC; < 1kV; EU-27
    • Energy Model - Use [B6] : Electricity mix; AC; < 1kV; EU-27
    • Energy Model - End Of Life [C1-c4] : Electricity mix; AC; < 1kV; EU-27
    • Air Pollution (M3) Manufacturing [A1-a3] : 67434
    • Air Pollution (M3) Distribution [A4] : 428.1
    • Air Pollution (M3) Installation [A5] : 123.34
    • Air Pollution (M3) End Of Life [C1-c4] : 584.63
    • Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] : 3275.7
    • Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4] : 141.39
    • Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5] : 18.508
    • Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] : 66.425
    • Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] : 340.69
    • Global Warming (Kg.Equivalent.Co2) Distribution [A4] : 10.064
    • Global Warming (Kg.Equivalent.Co2) Installation [A5] : 1.6045
    • Global Warming (Kg.Equivalent.Co2) End Of Life [C1-c4] : 5.3366
    • Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 1877.7
    • Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] : 70.242
    • Materials For Recycling (Kg) Total Life Cycle : 65.7844
    • Materials For Recycling (Kg) Manufacturing [A1-a3] : 6.2344
    • Materials For Recycling (Kg) Installation [A5] : 15.881
    • Materials For Recycling (Kg) End Of Life [C1-c4] : 43.669
    • Net Use Of Fresh Water (M3) Manufacturing [A1-a3] : 9.1499
    • Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] : 216.37
    • Non-hazardous Waste Disposed Of (Kg) Installation [A5] : 7.1086
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 6074.1
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4] : 142.1
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5] : 19.243
    • Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] : 82.614
    • Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] : 6438.9
    • Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4] : 142.29
    • Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5] : 19.467
    • Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] : 82.707
    • Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] : 364.81
    • Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5] : 0.2234
    • Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 391.94
    • Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 391.94
    • Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 5682.1
    • Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4] : 142.1
    • Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] : 19.243
    • Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] : 82.614
    • Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle : 266.35
    • Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 266.35
    • Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] : 98.455
    • Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] : 0.2234
    • Use Of Secondary Materials (Kg) Total Life Cycle : 10.81
    • Use Of Secondary Materials (Kg) Manufacturing [A1-a3] : 10.81
    • Water Eutrophication (Kg.Equivalent.P04 3-) Manufacturing [A1-a3] : 0.1486
    • Water Pollution (M3) Manufacturing [A1-a3] : 22168
    • Water Pollution (M3) Distribution [A4] : 1655
    • Water Pollution (M3) Installation [A5] : 215.8
    • Water Pollution (M3) End Of Life [C1-c4] : 625.34
  • Environment Attributes Main
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 35589.3752511573
    • Circularity Profile : ENVEOLI1503015EN
    • Environmental Disclosure : ENVPEP1503015EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : ILM motors
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1503015EN
    • Pep Verification Date : 2020-12-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : delta 3 robot
    • Range Of Product : Lexium P, T
  • ETIM
    • ETIM 8 : EC003245
    • ETIM 9 : EC003245
  • Specifications
    • Country of Origin : Germany
