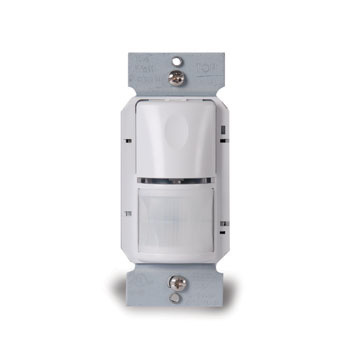

Wattstopper® PIR Single Pole Single Relay Occupancy Sensor, 800W at 120V/1200W at 277V, White

PIR WALL SW OCC SENSOR WHITE

WASWS301W WS-301-W 754182935383
95.61 / Each
http://schema.org/OutOfStock
Mayer-DDS-Wattstopper® PIR Single Pole Single Relay Occupancy Sensor, 800W at 120V/1200W at 277V, White-1
  • Applications: Commercial
  • Connection Type: Wired
  • Country of Origin: China
  • Depth: 1.55 in
  • Finish: Matte
  • Height: 2.6 in
  • Indoor/Outdoor: Indoor
  • IsSustainable: Yes
  • Length: 2.6 in
  • Mounting Type: Box
  • Number of Poles: 1
  • Switch Type: Motion Sensor
  • Type: Switch
  • Voltage: 120/277 V
  • Wattage: 1200.0 W
  • Width: 1.75 in
  • Wire Size: 10 AWG, 14 AWG
The WS-301 Passive Infrared (PIR) Wall Switch Sensor turns lighting or fan loads on and off based on occupancy and ambient light level. The sensor replaces existing wall switches and fits behind a standard decorator wall plate.
QTY
  • Features
  • Specifications
  • Features
    • Custom two-tier Fresnel lens enhances detection at the desktop level
    • Light level sensor holds lights off when ambient lighting is above the preset level
    • Patented voltage drop protection
    • Zero crossing circuitry reduces stress on the relay and results in increased sensor life
    • Adjustable time delay and sensitivity
  • Specifications
    • Country of Origin : China
    • Depth : 1.55 in
    • Height : 2.6 in
    • Length : 2.6 in
    • Width : 1.75 in
    • Color : White
    • Finish : Matte
    • Product Line : Pass & Seymour
    • Wattage : 1200.0 W
    • Application Sector : Commercial
    • Number of Poles : Single Pole
    • Mounting Type : Box
    • Connection Type : Wired
    • Indoor/Outdoor : Indoor
    • Number of Buttons : 1.0
    • Seismic Tested : No
    • Response Frequency : 60 Hz
    • Requires Neutral Wire : No
    • Sensor Type : Occupancy
    • Switch Type : Motion Sensor
    • Features : IR (Infrared); Motion Sensor
    • Type : Switch
    • Wire Size : #14 - #10 AWG
    • Voltage : 120/277 V
