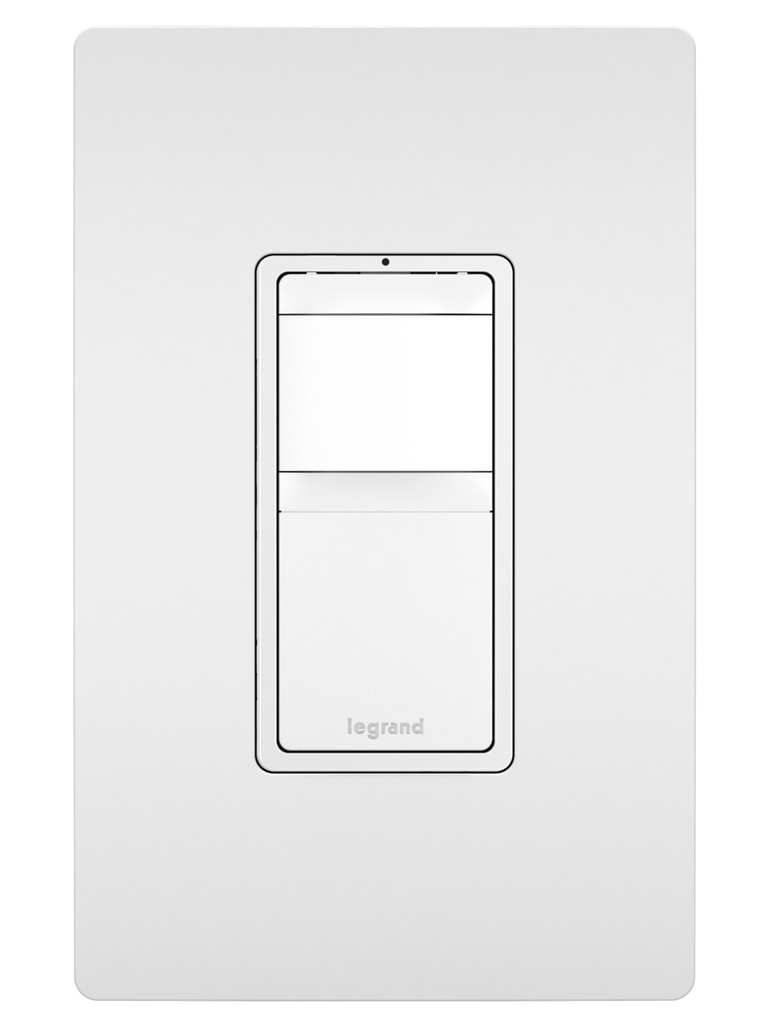

radiant® Single Pole 3-Way Occupancy Sensor, Tri-Color

RADIANT OCC SENS 2-WIRE 600W

PSSRRW600UTC RRW600UTC 785007496598
49.91 / EA
http://schema.org/OutOfStock
  • Applications: Hospitality, Light Commercial, Multi-Dwelling Unit, Residential
  • Country of Origin: China
  • Depth: 1.88 in
  • Finish: Satin
  • Height: 2.63 in
  • Indoor/Outdoor: Indoor
  • Input Voltage: 120 V
  • Load Type: CFL, Fan Motor, Fluorescent, Halogen, Incandescent, LED
  • Material: Polycarbonate, Steel
  • Mounting Type: Wall Box
  • Number of Poles: 3
  • Sensing Range: 20 sq-ft, 35 sq-ft
  • Switch Type: Motion Sensor, SofTap
  • Type: Switch
  • Voltage: 120 V
  • Warranty Length: Limited Lifetime
  • Wattage: 600 W
  • Width: 1.69 in
  • Wire Size: 10 AWG, 14 AWG
Simplify control while saving energy, with the radiant® Occupancy Sensor. Automatically turning the light on when someone enters a room, and shutting it off when the room is empty, this sensor includes an adjustable timed delay for shut off, as well as additional settings for more flexible control. Part of the radiant® Collection, it features clean lines and smooth paddle action for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
QTY
  • Features
  • Specifications
  • Certifications
    • UL Listed
    • cULus Listed
  • Features
    • Passive infrared (PIR) sensor switch technology with 180° coverage up to 600 sq. ft. Rated for up to 600W (5A) of LED lighting.
    • Works with virtually any bulb/fixture, including: LED, incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.
    • Turn the light on when you enter, and let it turn itself off automatically after you leave for true convenience. Perfect for bathrooms, hallways, closets, garages, and more.
    • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
    • Features an adjustable time delay to off after no motion is detected. Delay settings range from 30 seconds to 20 minutes after the room is vacated (default 5 minute delay).
    • Auto ON/Auto OFF functionality as default. Easily configurable to Manual ON/Auto OFF to meet any need or preference in the home.
    • Replace any basic light or fan switch in 15 minutes or less. Supports single pole and multi-location installs. No neutral required.
    • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
    • More color options available to fit any style, including finishes to match current hardware and lighting trends.
    • Wire leads accept #14–#10 AWG solid & stranded wire, copper-clad aluminum, and copper wire.
  • Specifications
    • Country of Origin : China
    • Depth : 1.88 in
    • Height : 2.63 in
    • Width : 1.69 in
    • Color : Ivory,Light Almond,White
    • Finish : Satin
    • Material : Polycarbonate,Steel
    • Product Line : Pass & Seymour
    • Mounting Type : Wall Box
    • Standard : cULus
    • Environmental Conditions : Indoor Use Only
    • Target Size : 180 deg
    • Special Features : Ideal for bathrooms, laundry rooms or mudrooms, garages and more, radiant® Occupancy/Vacancy Sensors offer energy savings by automatically turning lights off when a room has been vacant for a period of time.
    • Response Frequency : 60 Hz
    • Wattage : 600.0 W
    • Indoor/Outdoor : Indoor
    • Requires Neutral Wire : No
    • Number of Poles : Multi-Location; Single Pole 3 Way
    • Voltage : 120 VAC
    • Type : Switch
    • Wire Size : #14 - #10 AWG
    • Sensor Type : Occupancy; Vacancy
    • Sensor Coverage : 600.0 sq ft
    • Warranty Type : Limited Lifetime Warranty
    • On Function : Selectable Auto/Manual
    • Operating Humidity : 0-95% RH (Non-Condensing)
    • Wire Connection Type : Flying Leads
    • Sensor Coverage Pattern : 180.0 °
    • Input Voltage : 120 VAC
    • Features : Adjustable Time Delay; Motion Sensor
    • Line Frequency : 60.0 Hz
    • Switch Type : Motion Sensor; sofTap
    • Horsepower Rating : 1/6 HP @ 120 VAC
    • Installation Location : Wall Box
    • Timer Duration : 30 Seconds-20 Minutes; 5 Minutes
    • Load Rating : 120V 600VA (MLV); 120V 600W (Incandescent); 120V 5A (ELV); 120V 600W (Halogen); 120V 5A 600W (CFL); 120V 600VA (Fluorescent); 120V 5A 600W (LED)
    • Sensing Range : Major Motion 35 ft; Minor Motion 20 ft
    • Application Sector : Hospitality; Light Commercial; Residential; Multi-Dwelling Unit
    • Sensor Technology : Passive Infrared (PIR)
    • Sensitivity : 60Hz
    • Jigsaw Channel Availability : Distribution
    • Location Rating : Dry
    • Load Type : Halogen; Fan Motor; Incandescent; CFL; Fluorescent; LED
