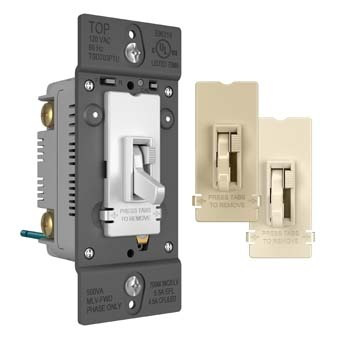

TradeMaster® Tru-Universal Single Pole/3-Way Toggle Slide Dimmer, Preset, Tri-Color

TOGGLE SLIDE DIM TRU-U SP/3W 4

PSSTSD703PTUTC TSD703PTUTC 785007216684
98.98 / EA
http://schema.org/OutOfStock
Mayer-DDS-TradeMaster® Tru-Universal Single Pole/3-Way Toggle Slide Dimmer, Preset, Tri-Color-1
  • Applications: Commercial, Hospitality, Light Commercial, Multi-Dwelling Unit, Residential
  • Country of Origin: China
  • Depth: 1.4 in
  • Finish: Gloss
  • Frequency: 60 Hz
  • Height: 4.19 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED
  • Material: Steel,Thermoplastic
  • Mounting Type: Wall Box
  • Number of Poles: 3
  • Number of Switches: 1
  • Product Series: Trademaster
  • Switch Type: Slider, Toggle
  • Voltage: 120 V
  • Warranty Length: Limited Lifetime
  • Width: 1.73 in
  • Wire Size: 10 AWG, 14 AWG
TradeMaster® Toggle Slide Tru-Universal Dimmer is designed for use with virtually any lamp type. This single pole 3-way switch is compatible with incandescent, halogen, ELV, CFL, or LED lighting options and can be used in a two-location layout. The slide can be set to your prefered level and then toggle on and off providing instant repeatablility.
QTY
  • Product Description
  • Features
  • Specifications
TradeMaster® Toggle Slide Tru-Universal Dimmer is designed for use with virtually any lamp type. This single pole 3-way switch is compatible with incandescent, halogen, ELV, CFL, or LED lighting options and can be used in a two-location layout. The slide can be set to your prefered level and then toggle on and off providing instant repeatablility.
  • Features
    • Matches appearance of standard Pass and Seymour toggle switch
    • All models are Single Pole/3-Way capable
    • Interchangeable face covers are available in seven different colors
    • Highest wattage rating
    • Lifetime warranty
  • Specifications
    • Depth : 1.4 in
    • Height : 4.19 in
    • Color : Ivory,Light Almond,White
    • Finish : Gloss
    • Width : 1.73 in
    • Country of Origin : China
    • Material : Steel,Thermoplastic
    • Product Line : Pass & Seymour
    • Preset : Yes
    • Load Type : CFL
    • Load Type : LED
    • Voltage : 120 VAC
    • Load Type : Halogen
    • Switch Type : Slider
    • Switch Type : Toggle
    • Indoor/Outdoor : Indoor
    • Load Type : Fluorescent
    • Frequency Rating : 60 Hz
    • Load Type : Incandescent
    • Mounting Type : Wall Box
    • Number of Switches : 1.0
    • Special Features : Preset
    • Wire Size : #14 - #10 AWG
    • Features : Color Change Kit
    • Requires Neutral Wire : Yes
    • Product Series : Trademaster
    • Load Rating : 120V 5.5A (EFL)
    • Load Rating : 120V 700W (ELV)
    • Load Rating : 120V 500VA (MLV)
    • Application Sector : Commercial
    • Application Sector : Hospitality
    • Application Sector : Residential
    • Load Rating : 120V 700W (Halogen)
    • Features : Auto-Calibration (Trim)
    • Load Rating : 120V 4.5A 450W (CFL)
    • Load Rating : 120V 4.5A 450W (LED)
    • Features : Low-End Trim (Dim Range)
    • Number of Poles : Single Pole 3-Way
    • Features : High-End Trim (Dim Range)
    • Application Sector : Light Commercial
    • Load Rating : 120V 700W (Incandescent)
    • Wire Connection Type : Screw Terminals
    • Application Sector : Multi-Dwelling Unit
    • Warranty Type : Limited Lifetime Warranty
    • Dimming Compatibility : Forward or Reverse Selectable Phase
