PASS & SEYMOUR

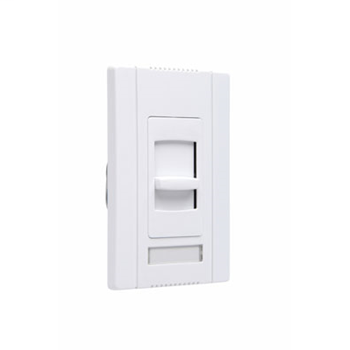

Titan Series Fluorescent 3-Way, Preset 4 Wire Dimmer, White CD4FB3PW

SLIDE EFL SP/3W 4-WIRE 24 VDC

PSSCD4FB3PW CD4FB3P-W 785007303537
129.72 / EA
http://schema.org/OutOfStock
Mayer-DDS-Titan Series Fluorescent 3-Way, Preset 4 Wire Dimmer, White CD4FB3PW-1
  • Buy American Compliant: No
  • Country of Origin: China
  • Depth: 1.437 in
  • Height: 4.87 in
  • IsSustainable: Yes
  • Number of Poles: 3
  • Number of Wires: 4
  • Product Series: Titan
  • Style: Narrow
  • Type: Fluorescent
  • Voltage: 24 V
  • Width: 2.85 in
Slide Dimmer,Single Pole 3-Way, Preset 4 Wire 24VDC, White. Requires BZ50 Power Pack.
QTY
  • Product Description
  • Features
  • Specifications
Slide Dimmer,Single Pole 3-Way, Preset 4 Wire 24VDC, White. Requires BZ50 Power Pack.
  • Features
    • For use with 0-10V, 4 wire, 120V and 277V fluorescent dimming ballasts.
    • Field configurable wall plate system.
    • Labeling system.
    • Adjustable low end output voltage.
    • Shipped with protective film.
    • Rugged construction.
    • Superior ratings with a minimum of derating when ganged.
    • Must be used with power pack.
    • Simple to plan the rough-in.
    • Available in single pole slide-to-OFF and single pole/3-way preset models.
    • Attractive European styling. Eye-catching packaging.
    • Exclusive adaptor kit to install other Decorator opening devices under the Titan™ wall plate system.
    • Blank center plate included.
    • For covering patents, see www.legrand.us/patents.
  • Eco-Benefit Information
    • RoHS Compliant
    • LEED Contribution: Yes
  • Buy American Act Compliance
    • Country Of Origin : CHINA
    • Buy American Act Status : No
  • Technical Information
    • Volts : 24VDC
  • Dimensions
    • Depth (US) : 1.4375"
    • Height (US) : 4.87"
    • Width (US) : 2.85"
  • General Info
    • Color : White
    • Size : Narrow
    • Product Series : Titan
    • Type : Fluorescent
    • Number Of Poles : 3-Way
    • Number Of Wires : 4
    • Style : Narrow
  • Listing Agencies/Third Party Certifications
    • RoHS : Yes
    • CSA Listing Info : No
    • CUL Listing No : No
    • cULus : Yes
    • cURus : No
    • Federal Spec : No
    • UL Listing No : No
    • UN SPSC : 39121559
    • UR : No
