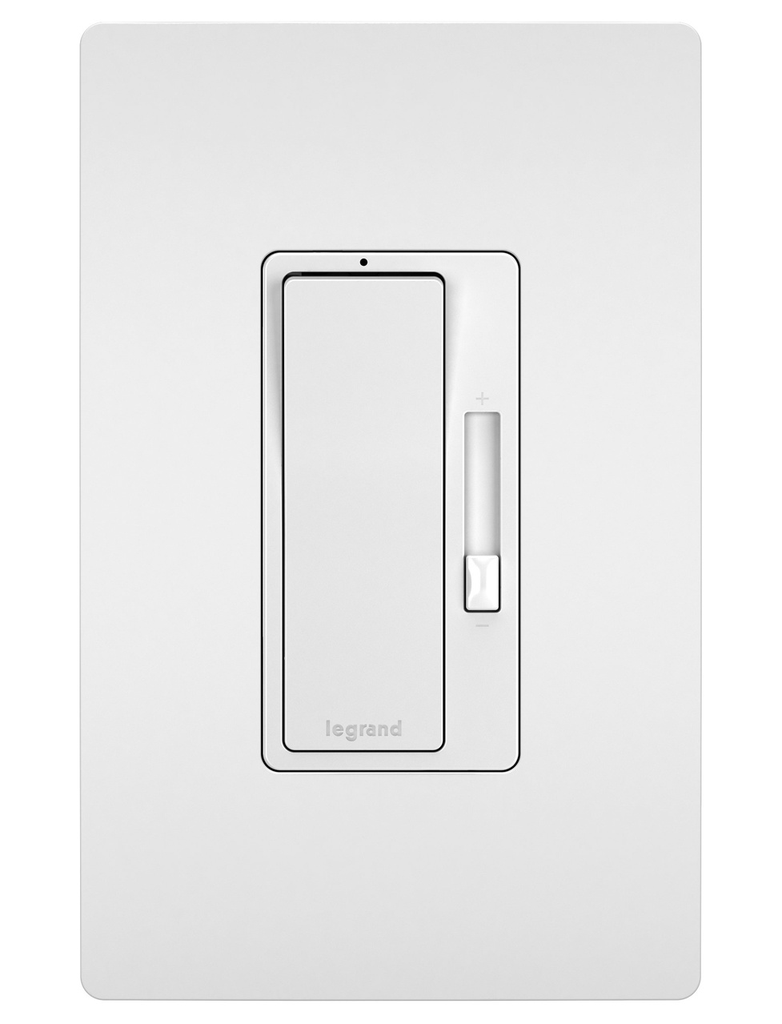

radiant® Tru-Universal Single Pole/3-Way Dimmer, White

DECORA DIMMER 1P&3W 700W WHITE

PSSRH703PTUW RH703PTUW 785007053296
72.41 / EA
http://schema.org/OutOfStock
  • Applications: Commercial, Hospitality, Light Commercial, Multi-Dwelling Unit, Residential
  • Country of Origin: China
  • Depth: 1.25 in
  • Finish: Satin
  • Frequency: 60 Hz
  • Height: 4.25 in
  • Indoor/Outdoor: Indoor
  • IsSustainable: Yes
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED
  • Material: Steel, Thermoplastic
  • Mounting Type: Wall Box
  • Number of Poles: 3
  • Number of Switches: 1
  • Switch Type: Paddle, Slider
  • Type: Dimmer
  • Voltage: 120 V
  • Warranty Length: Limited Lifetime
  • Width: 1.75 in
  • Wire Size: 10 AWG, 14 AWG
Upgrade your space with superior dimming control and exceptional style. The radiant® Tru-Universal Dimmer works with virtually any 120V dimmable bulb or fixture, adjusting to the precise light level you want, without the flicker. Unsure what dimmer your bulb needs? Avoid uncertainty with Tru-Universal Dimming. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
QTY
  • Product Description
  • Features
  • Specifications
Upgrade your space with superior dimming control and exceptional style. The radiant® Tru-Universal Dimmer works with virtually any 120V dimmable bulb or fixture, adjusting to the precise light level you want, without the flicker. Unsure what dimmer your bulb needs? Avoid uncertainty with Tru-Universal Dimming. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
  • Certifications
    • UL Listed
    • cULus Listed
  • Features
    • Works with virtually any 120V dimmable bulb or fixture on typical residential (and light commercial) wiring. Usable in both single-pole and 3-way applications.
    • Self-calibrates when you select your fixture's lighting type, automatically setting the appropriate minimum voltage to eliminate flicker and poor performance.
    • Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
    • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
    • Constant memory features returns lights to their previous level when turning back on or after a power outage.
    • No derating* required in multi-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
    • Features durable, high-impact resistant thermoplastic construction.
    • More color options available to fit any style, including finishes to match current hardware and lighting trends.
    • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • Specifications
    • Country of Origin : China
    • Depth : 1.25 in
    • Height : 4.25 in
    • Width : 1.75 in
    • Color : White
    • Finish : Satin
    • Material : Steel,Thermoplastic
    • Product Line : Pass & Seymour
    • Warranty Type : Limited Lifetime Warranty
    • Mounting Type : Wall Box
    • Type : Dimmer
    • Number of Switches : 1.0
    • Standard : CSA Listed; cULus; UL Listed
    • Environmental Conditions : Humidity: Less than 95% non condensing
    • Special Features : The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. This dimmer is multi-location dimming with 3-Way wiring for simple installation.
    • Number of Poles : Single Pole 3-Way
    • Wire Size : #14 - #10 AWG
    • Switch Type : Paddle; Slider
    • Indoor/Outdoor : Indoor
    • Wire Connection Type : Screw Terminals
    • Frequency Rating : 60 Hz
    • Voltage : 120 VAC
    • Maximum Humidity : 95% (relative humidity, non-condensing)
    • Dimming Compatibility : Forward or Reverse Selectable Phase
    • Requires Neutral Wire : Yes
    • Features : Auto-Calibration (Trim); High-End Trim (Dim Range); Low-End Trim (Dim Range); Locator Light
    • Load Rating : 120V 500VA (MLV); 120V 5.5A (EFL); 120V 700W (ELV); 120V 4.5A 450W (LED); 120V 700W (Incandescent); 120V 700W (Halogen); 120V 4.5A 450W (CFL)
    • Application Sector : Commercial; Light Commercial; Hospitality; Residential; Multi-Dwelling Unit
    • Load Type : CFL; Fluorescent; Incandescent; LED; Halogen
    • Compatible Add-Ons : RHKIT
    • Jigsaw Channel Availability : Distribution; Retail
